RIEGLER Bellows suction cup, Round 2.5 folds, Material NBR, »FG« Ø 5 mm
Type number: FG 2505-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Bellows suction cups for vacuum technology - type FG 2505-1
The RIEGLER bellows suction cup, round 2.5 folds, material NBR, "FG", Ø 5 mm lifts and transports workpieces safely by vacuum. Suction force 0.1 N. Gentle workpiece handling without mechanical clamping.
Field of application
Typical areas of application: Robotics, packaging technology and automated handling.
| Diameter | 5 mm |
| Suitable connection nipple IG | M5 |
| Suitable connection nipple AG | M5 |
| Overall height with nipple IG | 23.5 mm |
| Overall height with nipple AG | 18.5 mm |
| Suction power | 0.1 N |
| Volume | 0.033 cm³ |
| Workpiece radius convex min. | 8 mm |
| Recommended hose Ø | 2 mm |
| Tear-off force | 0.8 N |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

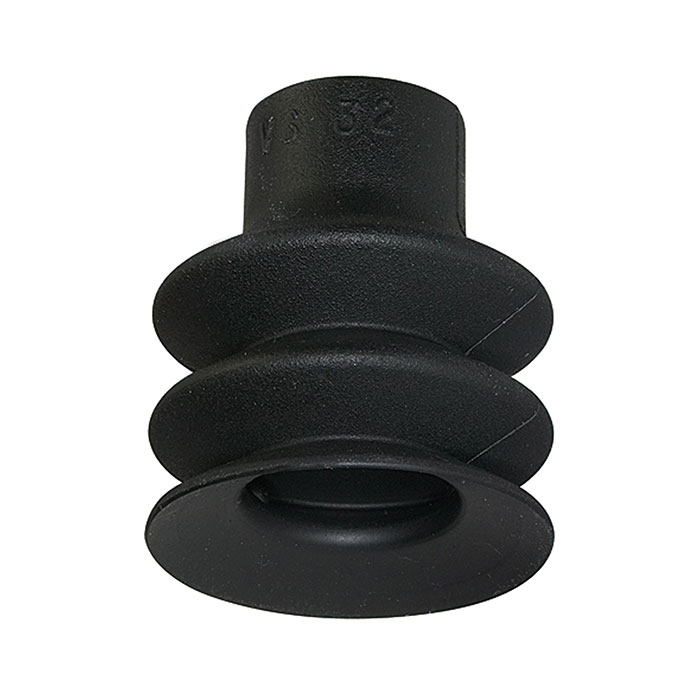

![[108516] RIEGLER Bellows suction cup, Round 2.5 folds, Material NBR, »FG« Ø 12 mm](/web/image/product.template/192413/image_128/%5B108516%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Material%20NBR%2C%20%C2%BBFG%C2%AB%20%C3%98%2012%20mm?unique=c581daf)
|
Type number: FG 2512-1 |
5.18 € | |
![[108517] RIEGLER Bellows suction cup, Round 2.5 folds, Material NBR, »FG« Ø 14 mm](/web/image/product.template/192414/image_128/%5B108517%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Material%20NBR%2C%20%C2%BBFG%C2%AB%20%C3%98%2014%20mm?unique=53b969a)
|
Type number: FG 2514-1 |
5.34 € | |
![[108518] RIEGLER Bellows suction cup, Round 2.5 folds, Material NBR, »FG« Ø 18 mm](/web/image/product.template/192415/image_128/%5B108518%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Material%20NBR%2C%20%C2%BBFG%C2%AB%20%C3%98%2018%20mm?unique=3e799ba)
|
Type number: FG 2518-1 |
5.52 € | |
![[108519] RIEGLER Bellows suction cup, Round 2.5 folds, Material NBR, »FG« Ø 20 mm](/web/image/product.template/192416/image_128/%5B108519%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Material%20NBR%2C%20%C2%BBFG%C2%AB%20%C3%98%2020%20mm?unique=c1a8303)
|
Type number: FG 2520-1 |
5.68 € | |
![[108520] RIEGLER Bellows suction cup, Round 2.5 folds, Material NBR, »FG« Ø 25 mm](/web/image/product.template/192417/image_128/%5B108520%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Material%20NBR%2C%20%C2%BBFG%C2%AB%20%C3%98%2025%20mm?unique=0673272)
|
Type number: FG 2525-1 |
6.84 € | |
![[108521] RIEGLER Bellows suction cup, Round 2.5 folds, Material NBR, »FG« Ø 32 mm](/web/image/product.template/192418/image_128/%5B108521%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Material%20NBR%2C%20%C2%BBFG%C2%AB%20%C3%98%2032%20mm?unique=b8a4d81)
|
Type number: FG 2532-1 |
5.76 € | |
![[108522] RIEGLER Bellows suction cup, Round 2.5 folds, Material NBR, »FG« Ø 42 mm](/web/image/product.template/192419/image_128/%5B108522%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Material%20NBR%2C%20%C2%BBFG%C2%AB%20%C3%98%2042%20mm?unique=b843a47)
|
Type number: FG 2542-1 |
7.91 € | |
![[108523] RIEGLER Bellows suction cup, Round 2.5 folds, Material NBR, »FG« Ø 52 mm](/web/image/product.template/192420/image_128/%5B108523%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Material%20NBR%2C%20%C2%BBFG%C2%AB%20%C3%98%2052%20mm?unique=5195792)
|
Type number: FG 2552-1 |
9.48 € | |
![[108514] RIEGLER Bellows suction cup, Round 2.5 folds, Material NBR, »FG« Ø 7 mm](/web/image/product.template/192411/image_128/%5B108514%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Material%20NBR%2C%20%C2%BBFG%C2%AB%20%C3%98%207%20mm?unique=8de2ef5)
|
Type number: FG 2507-1 |
5.01 € | |
![[108515] RIEGLER Bellows suction cup, Round 2.5 folds, Material NBR, »FG« Ø 9 mm](/web/image/product.template/192412/image_128/%5B108515%5D%20RIEGLER%20Bellows%20suction%20cup%2C%20Round%202.5%20folds%2C%20Material%20NBR%2C%20%C2%BBFG%C2%AB%20%C3%98%209%20mm?unique=62ad024)
|
Type number: FG 2509-1 |
5.18 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

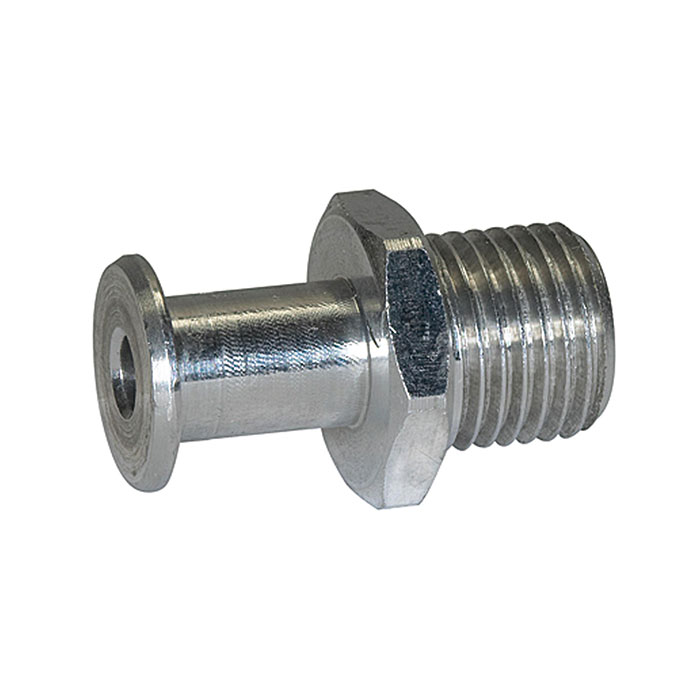

![[108506] RIEGLER Connection nipple for bellows suction cup, round, »FGA« Ø 5](/web/image/product.template/192403/image_128/%5B108506%5D%20RIEGLER%20Connection%20nipple%20for%20bellows%20suction%20cup%2C%20round%2C%20%C2%BBFGA%C2%AB%20%C3%98%205?unique=ea9bb81)
|
Type number: 313.004 |
2.95 € | |

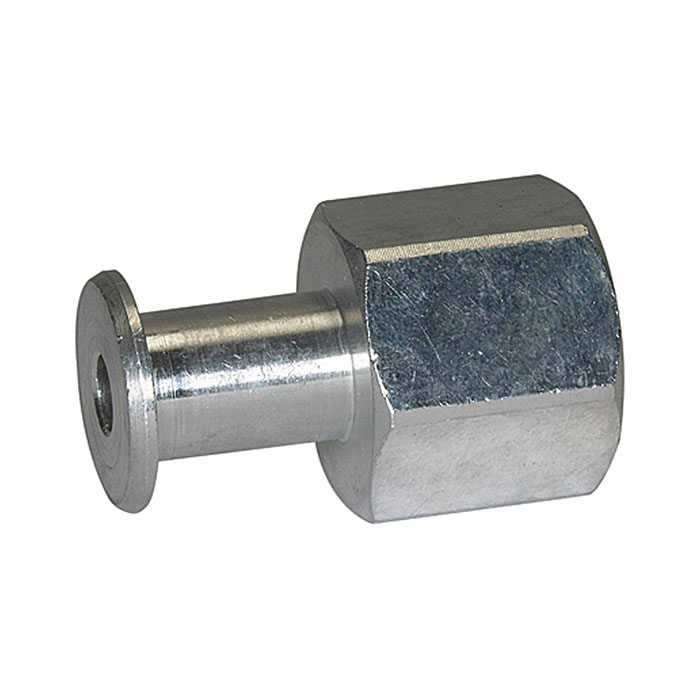

![[108510] RIEGLER Connection nipple for bellows suction cup, round, »FGA«](/web/image/product.template/192407/image_128/%5B108510%5D%20RIEGLER%20Connection%20nipple%20for%20bellows%20suction%20cup%2C%20round%2C%20%C2%BBFGA%C2%AB?unique=5545232)
|
Type number: 314.004 |
2.95 € | |
