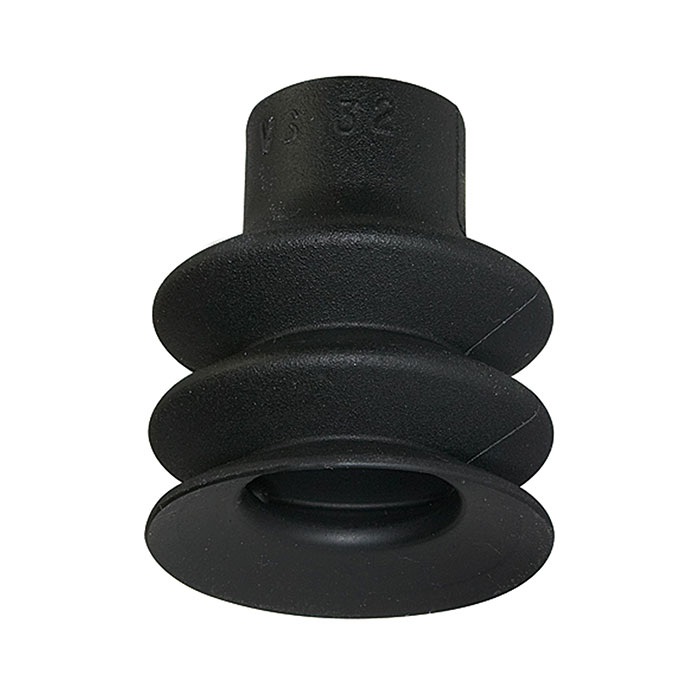

RIEGLER Bellows suction cup, Round 2.5 folds, Material NBR, »FG« Ø 32 mm
Type number: FG 2532-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Bellows suction cups for vacuum technology - Type FG 2532-1
The RIEGLER bellows suction cup, round 2.5 folds, material NBR, "FG", Ø 32 mm lifts and transports workpieces safely by vacuum. Suction force 12 N. Gentle workpiece handling without mechanical clamping.
Field of application
Typical areas of application: Robotics, packaging technology and automated handling.
| Diameter | 32 mm |
| Suitable connection nipple IG | G 1/4 |
| Suitable connection nipple AG | G 1/4 |
| Overall height with nipple IG | 52.5 mm |
| Overall height with nipple AG | 41.5 mm |
| Suction power | 12 N |
| Volume | 10 cm³ |
| Workpiece radius convex min. | 35 mm |
| Recommended hose Ø | 6 mm |
| Tear-off force | 36.9 N |
