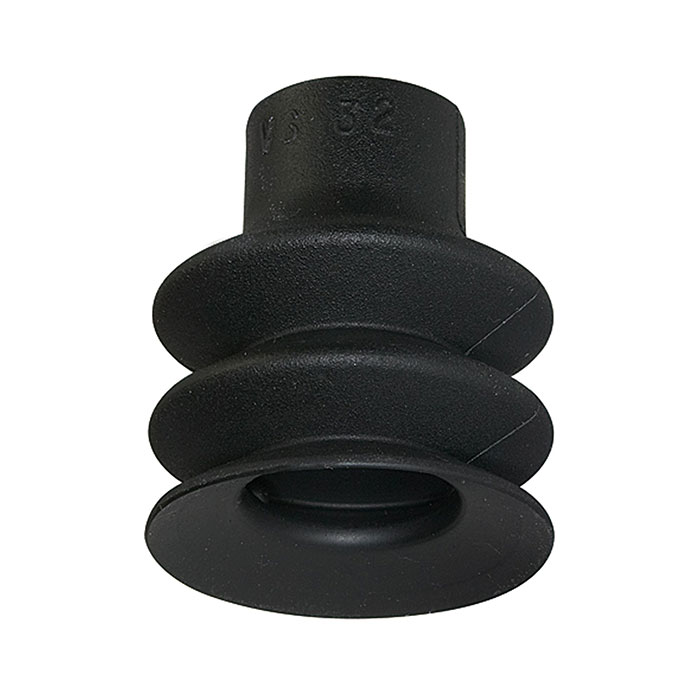

RIEGLER Bellows suction cup, Round 2.5 folds, Material NBR, »FG« Ø 7 mm
Type number: FG 2507-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Bellows suction cups for vacuum technology - Type FG 2507-1
The RIEGLER bellows suction cup, round 2.5 folds, material NBR, "FG", Ø 7 mm lifts and transports workpieces safely by vacuum. Suction force 0.1 N. Gentle workpiece handling without mechanical clamping.
Field of application
Typical areas of application: Robotics, packaging technology and automated handling.
| Diameter | 7 mm |
| Suitable connection nipple IG | G 1/8 |
| Suitable connection nipple AG | M5 / G 1/8 |
| Overall height with nipple IG | 26.0 mm |
| Overall height with nipple AG | 19.0 / 20.0 mm |
| Suction power | 0.1 N |
| Volume | 0.043 cm³ |
| Workpiece radius convex min. | 8 mm |
| Recommended hose Ø | 4 mm |
| Tear-off force | 0.9 N |
