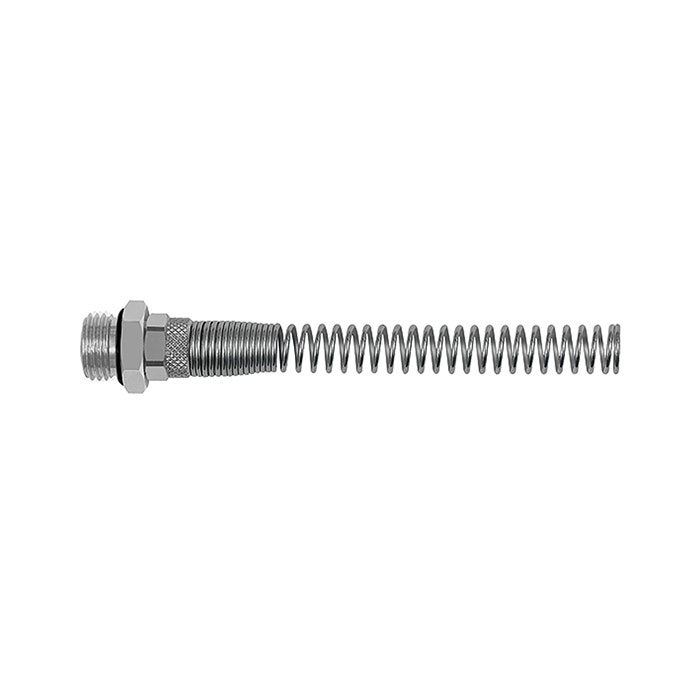

RIEGLER Straight screw-in fitting, Kink protection spring, G 1/4 o.
Type number: 17.114-10
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Straight screw-in fitting, Kink protection spring, G 1/4 o., for hose 10/8 mm, Working pressure max. 18 bar, nickel-plated brass
| Working pressure max. | 18 bar |
| Material | Nickel-plated brass |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 80 °C |
| Thread | G 1/4 |
| SW | 16 mm |
| for hose | 10/8 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| O-ring | NBR |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110657] RIEGLER Straight screw-in fitting, Kink protection spring, G 1/2 o.](/web/image/product.template/181587/image_128/%5B110657%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20Kink%20protection%20spring%2C%20G%201-2%20o.?unique=6a107c8)
|
Type number: 17.112-10 |
3.87 € | |
![[110656] RIEGLER Straight screw-in fitting, Kink protection spring, G 1/2 o.](/web/image/product.template/181586/image_128/%5B110656%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20Kink%20protection%20spring%2C%20G%201-2%20o.?unique=f9fb053)
|
Type number: 17.112-8 |
3.55 € | |
![[110650] RIEGLER Straight screw-in fitting, Kink protection spring, G 1/4 o.](/web/image/product.template/181580/image_128/%5B110650%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20Kink%20protection%20spring%2C%20G%201-4%20o.?unique=40d9662)
|
Type number: 17.114-6 |
2.12 € | |
![[110651] RIEGLER Straight screw-in fitting, Kink protection spring, G 1/4 o.](/web/image/product.template/181581/image_128/%5B110651%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20Kink%20protection%20spring%2C%20G%201-4%20o.?unique=561cc70)
|
Type number: 17.114-8 |
2.49 € | |
![[110648] RIEGLER Straight screw-in fitting, Kink protection spring, G 1/8 o.](/web/image/product.template/181578/image_128/%5B110648%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20Kink%20protection%20spring%2C%20G%201-8%20o.?unique=7ca16a5)
|
Type number: 17.118-6 |
1.89 € | |
![[110649] RIEGLER Straight screw-in fitting, Kink protection spring, G 1/8 o.](/web/image/product.template/181579/image_128/%5B110649%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20Kink%20protection%20spring%2C%20G%201-8%20o.?unique=652fe8e)
|
Type number: 17.118-8 |
2.37 € | |
![[110655] RIEGLER Straight screw-in fitting, Kink protection spring, G 3/8 o.](/web/image/product.template/181585/image_128/%5B110655%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20Kink%20protection%20spring%2C%20G%203-8%20o.?unique=4b7f769)
|
Type number: 17.138-12 |
4.27 € | |
![[110654] RIEGLER Straight screw-in fitting, Kink protection spring, G 3/8 o.](/web/image/product.template/181584/image_128/%5B110654%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20Kink%20protection%20spring%2C%20G%203-8%20o.?unique=d8226ca)
|
Type number: 17.138-10 |
3.86 € | |
![[110653] RIEGLER Straight screw-in fitting, Kink protection spring, G 3/8 o.](/web/image/product.template/181583/image_128/%5B110653%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20Kink%20protection%20spring%2C%20G%203-8%20o.?unique=a503a4a)
|
Type number: 17.138-8 |
3.55 € | |
