RIEGLER Straight screw-in fitting, Kink protection spring, G 1/2 o.
Type number: 17.112-8
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Straight screw-in fitting, Kink protection spring, G 1/2 o., for hose 8/6 mm, Working pressure max. 18 bar, nickel-plated brass
| Working pressure max. | 18 bar |
| Material | Nickel-plated brass |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 80 °C |
| Thread | G 1/2 |
| SW | 24 mm |
| for hose | 8/6 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| O-ring | NBR |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[110657] RIEGLER Straight screw-in fitting, Kink protection spring, G 1/2 o.](/web/image/product.template/181587/image_128/%5B110657%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20Kink%20protection%20spring%2C%20G%201-2%20o.?unique=6a107c8)
|
Type number: 17.112-10 |
3.87 € | |
![[110650] RIEGLER Straight screw-in fitting, Kink protection spring, G 1/4 o.](/web/image/product.template/181580/image_128/%5B110650%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20Kink%20protection%20spring%2C%20G%201-4%20o.?unique=40d9662)
|
Type number: 17.114-6 |
2.12 € | |
![[110651] RIEGLER Straight screw-in fitting, Kink protection spring, G 1/4 o.](/web/image/product.template/181581/image_128/%5B110651%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20Kink%20protection%20spring%2C%20G%201-4%20o.?unique=561cc70)
|
Type number: 17.114-8 |
2.49 € | |

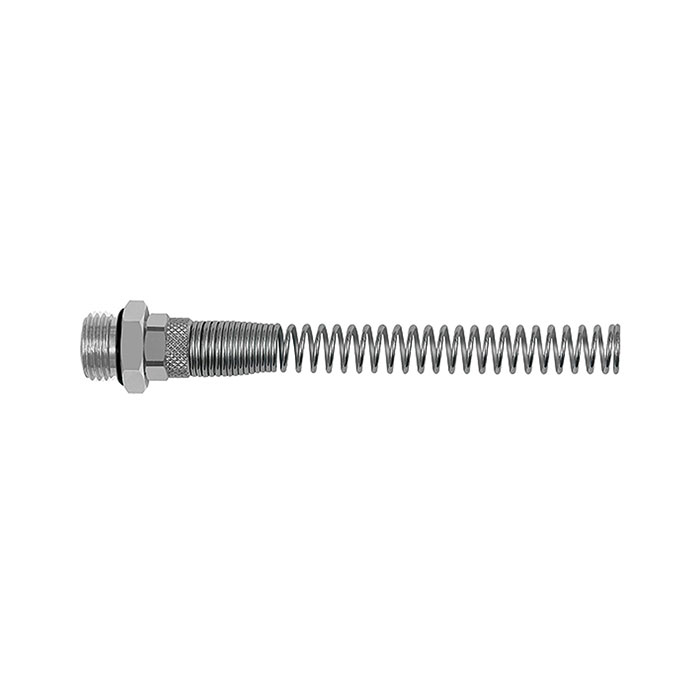

![[110652] RIEGLER Straight screw-in fitting, Kink protection spring, G 1/4 o.](/web/image/product.template/181582/image_128/%5B110652%5D%20RIEGLER%20Straight%20screw-in%20fitting%2C%20Kink%20protection%20spring%2C%20G%201-4%20o.?unique=1818f7f)
|
