RIEGLER Double threaded nipple »value line«, M5, M5, AF 8
Type number: 252.31-E
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Double threaded nipple "value line", M5, M5, SW 8, operating pressure max. 60 bar, operating temp. max. 150 °C, nickel-plated brass.
| Max. operating pressure | 60 bar |
| Operating temperature max. | 150 °C |
| SW | 8 mm |
| L1 | 11.5 mm |
| L2 | 7.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Thread 1 | M5 |
| Thread 2 | M5 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617 |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[115675] RIEGLER Double threaded nipple »value line«, G 1/2, G 1/2, AF 24,](/web/image/product.template/200434/image_128/%5B115675%5D%20RIEGLER%20Double%20threaded%20nipple%20%C2%BBvalue%20line%C2%AB%2C%20G%201-2%2C%20G%201-2%2C%20AF%2024%2C?unique=0dd241a)
|
Type number: 252.66-E |
1.49 € | |
![[115672] RIEGLER Double threaded nipple »value line«, G 1/4, G 1/2, AF 24,](/web/image/product.template/200431/image_128/%5B115672%5D%20RIEGLER%20Double%20threaded%20nipple%20%C2%BBvalue%20line%C2%AB%2C%20G%201-4%2C%20G%201-2%2C%20AF%2024%2C?unique=55c6592)
|
Type number: 252.63-E |
1.39 € | |
![[115670] RIEGLER Double threaded nipple »value line«, G 1/4, G 1/4, AF 17,](/web/image/product.template/200429/image_128/%5B115670%5D%20RIEGLER%20Double%20threaded%20nipple%20%C2%BBvalue%20line%C2%AB%2C%20G%201-4%2C%20G%201-4%2C%20AF%2017%2C?unique=690ff47)
|
Type number: 252.61-E |
0.68 € | |
![[115671] RIEGLER Double threaded nipple »value line«, G 1/4, G 3/8, AF 19,](/web/image/product.template/200430/image_128/%5B115671%5D%20RIEGLER%20Double%20threaded%20nipple%20%C2%BBvalue%20line%C2%AB%2C%20G%201-4%2C%20G%203-8%2C%20AF%2019%2C?unique=889beec)
|
Type number: 252.62-E |
0.82 € | |

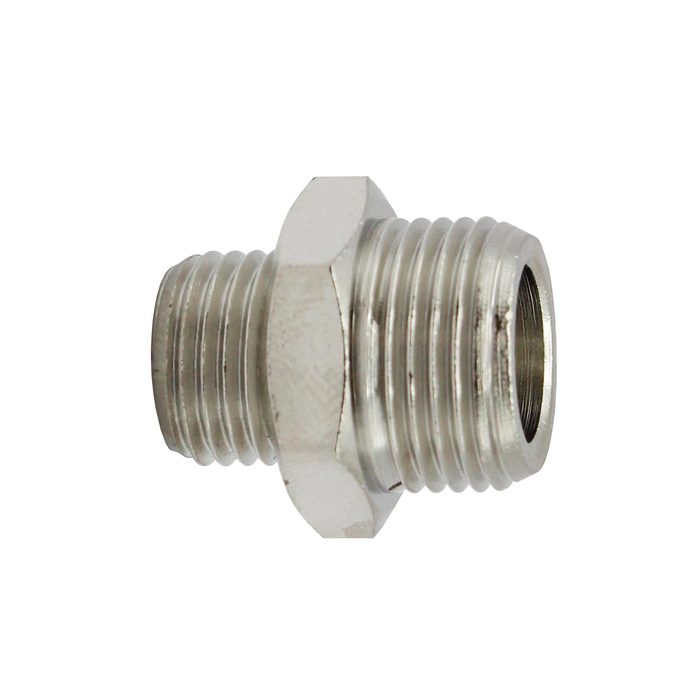

![[115669] RIEGLER Double threaded nipple »value line«, G 1/8, G 1/4, AF 17,](/web/image/product.template/200428/image_128/%5B115669%5D%20RIEGLER%20Double%20threaded%20nipple%20%C2%BBvalue%20line%C2%AB%2C%20G%201-8%2C%20G%201-4%2C%20AF%2017%2C?unique=72b998e)
|
Type number: 252.34-E |
0.65 € | |
![[115668] RIEGLER Double threaded nipple »value line«, G 1/8, G 1/8, AF 14,](/web/image/product.template/200427/image_128/%5B115668%5D%20RIEGLER%20Double%20threaded%20nipple%20%C2%BBvalue%20line%C2%AB%2C%20G%201-8%2C%20G%201-8%2C%20AF%2014%2C?unique=e69cf65)
|
Type number: 252.33-E |
0.46 € | |
![[115674] RIEGLER Double threaded nipple »value line«, G 3/8, G 1/2, AF 24,](/web/image/product.template/200433/image_128/%5B115674%5D%20RIEGLER%20Double%20threaded%20nipple%20%C2%BBvalue%20line%C2%AB%2C%20G%203-8%2C%20G%201-2%2C%20AF%2024%2C?unique=4b95476)
|
Type number: 252.65-E |
1.38 € | |
![[115673] RIEGLER Double threaded nipple »value line«, G 3/8, G 3/8, AF 19,](/web/image/product.template/200432/image_128/%5B115673%5D%20RIEGLER%20Double%20threaded%20nipple%20%C2%BBvalue%20line%C2%AB%2C%20G%203-8%2C%20G%203-8%2C%20AF%2019%2C?unique=0da8557)
|
Type number: 252.64-E |
0.90 € | |
