RIEGLER Double threaded nipple »value line«, G 1/4, G 3/8, AF 19,
Type number: 252.62-E
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Double threaded nipple "value line" for pipeline construction, max. 60 bar - Type 252.62-E
The RIEGLER double threaded nipple "value line", G 1/4, G 3/8, SW 19, MS nickel-plated connects two female threaded connections of the same or different sizes. Designed for a maximum operating pressure of 60 bar. Universal adapter for different thread sizes.
Field of application
Typical areas of application: Pipeline construction, compressed air distribution and sanitary installations.
| Max. operating pressure | 60 bar |
| Operating temperature max. | 150 °C |
| SW | 19 mm |
| L1 | 22 mm |
| L2 | 14 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Thread 1 | G 1/4 |
| Thread 2 | G 3/8 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617 |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[115675] RIEGLER Double threaded nipple »value line«, G 1/2, G 1/2, AF 24,](/web/image/product.template/200434/image_128/%5B115675%5D%20RIEGLER%20Double%20threaded%20nipple%20%C2%BBvalue%20line%C2%AB%2C%20G%201-2%2C%20G%201-2%2C%20AF%2024%2C?unique=875b95f)
|
Type number: 252.66-E |
1.49 € | |
![[115672] RIEGLER Double threaded nipple »value line«, G 1/4, G 1/2, AF 24,](/web/image/product.template/200431/image_128/%5B115672%5D%20RIEGLER%20Double%20threaded%20nipple%20%C2%BBvalue%20line%C2%AB%2C%20G%201-4%2C%20G%201-2%2C%20AF%2024%2C?unique=17d09a2)
|
Type number: 252.63-E |
1.39 € | |
![[115670] RIEGLER Double threaded nipple »value line«, G 1/4, G 1/4, AF 17,](/web/image/product.template/200429/image_128/%5B115670%5D%20RIEGLER%20Double%20threaded%20nipple%20%C2%BBvalue%20line%C2%AB%2C%20G%201-4%2C%20G%201-4%2C%20AF%2017%2C?unique=923a933)
|
Type number: 252.61-E |
0.68 € | |
![[115669] RIEGLER Double threaded nipple »value line«, G 1/8, G 1/4, AF 17,](/web/image/product.template/200428/image_128/%5B115669%5D%20RIEGLER%20Double%20threaded%20nipple%20%C2%BBvalue%20line%C2%AB%2C%20G%201-8%2C%20G%201-4%2C%20AF%2017%2C?unique=30f4061)
|
Type number: 252.34-E |
0.65 € | |
![[115668] RIEGLER Double threaded nipple »value line«, G 1/8, G 1/8, AF 14,](/web/image/product.template/200427/image_128/%5B115668%5D%20RIEGLER%20Double%20threaded%20nipple%20%C2%BBvalue%20line%C2%AB%2C%20G%201-8%2C%20G%201-8%2C%20AF%2014%2C?unique=34e8003)
|
Type number: 252.33-E |
0.46 € | |
![[115674] RIEGLER Double threaded nipple »value line«, G 3/8, G 1/2, AF 24,](/web/image/product.template/200433/image_128/%5B115674%5D%20RIEGLER%20Double%20threaded%20nipple%20%C2%BBvalue%20line%C2%AB%2C%20G%203-8%2C%20G%201-2%2C%20AF%2024%2C?unique=3e1679d)
|
Type number: 252.65-E |
1.38 € | |
![[115673] RIEGLER Double threaded nipple »value line«, G 3/8, G 3/8, AF 19,](/web/image/product.template/200432/image_128/%5B115673%5D%20RIEGLER%20Double%20threaded%20nipple%20%C2%BBvalue%20line%C2%AB%2C%20G%203-8%2C%20G%203-8%2C%20AF%2019%2C?unique=11075d7)
|
Type number: 252.64-E |
0.90 € | |

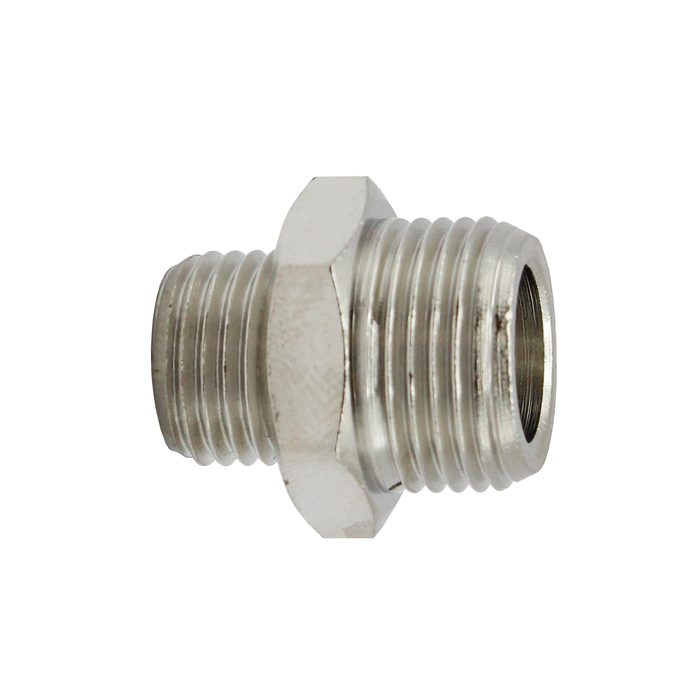

![[115667] RIEGLER Double threaded nipple »value line«, M5, M5, AF 8](/web/image/product.template/200426/image_128/%5B115667%5D%20RIEGLER%20Double%20threaded%20nipple%20%C2%BBvalue%20line%C2%AB%2C%20M5%2C%20M5%2C%20AF%208?unique=d872f94)
|
Type number: 252.31-E |
0.29 € | |
