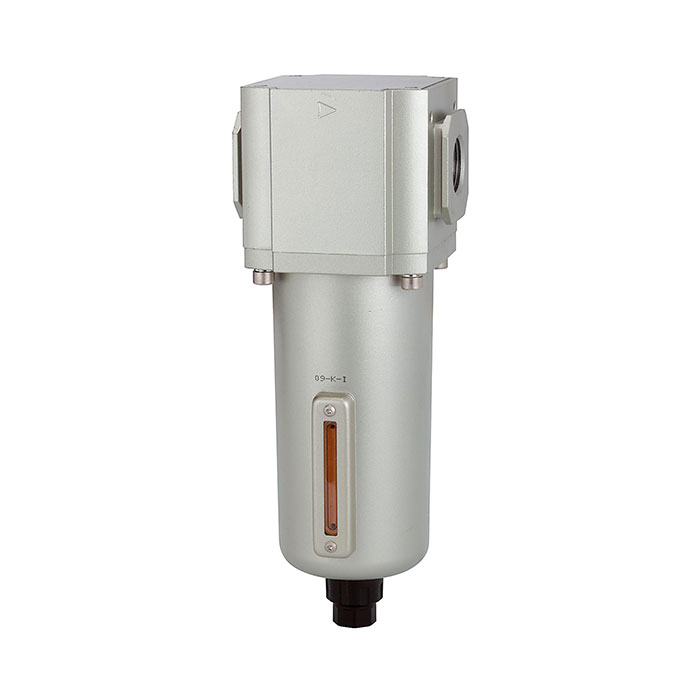

RIEGLER Filter »G«, Metal container, Viewing tube, 5 µm, Size 600, G 1
Type number: GF 55 A
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Filter "G" with metal bowl made of die-cast aluminum, for compressed air treatment - type GF 55 A
The RIEGLER "G" filter with metal bowl, 5 µm, BG 600, G 1, drain: VA removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of die-cast aluminum with NBR seals. The operating pressure range is 1.5 bar to 9 bar. Connection thread G 1 - suitable for common industry standards. The flow rate is 7800 l/min (at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 5 µm, container made of metal container with sight tube. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 10 bar |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | G |
| Container | Metal container with sight tube |
| Filter fineness | 5 µm |
| Medium temperature max. | 70 °C |
| Ambient temperature max. | 70 °C |
| Working pressure min. | 1.5 bar |
| Working pressure max. | 9 bar |
| Thread | G 1 |
| Flow rate | 7800 l/min |
| Condensate drain | fully automatic |
| BG | 600 |
| A | 85 mm |
| B | 256 mm |
| C | 37 mm |
| D | 219 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

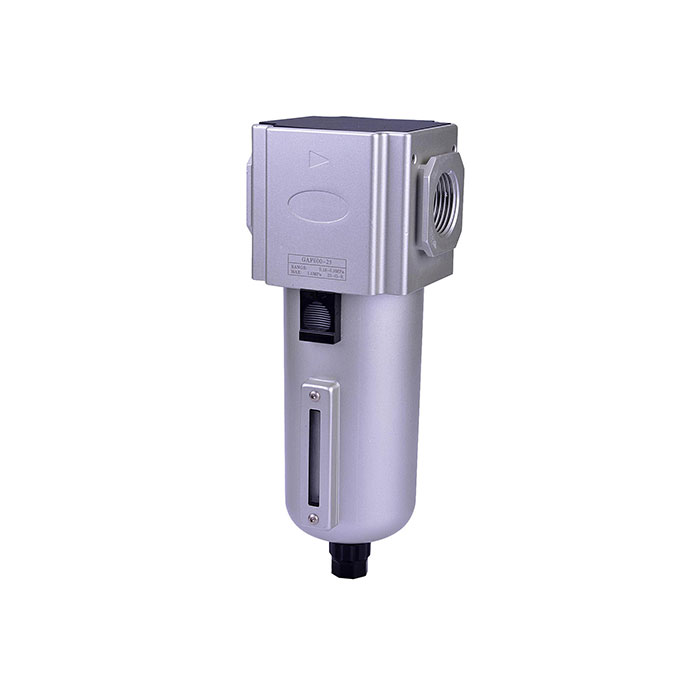

![[178469] RIEGLER Filter »GA«, Metal container, Viewing tube, 5 µm, Size 600, G 1](/web/image/product.template/216359/image_128/%5B178469%5D%20RIEGLER%20Filter%20%C2%BBGA%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%205%20%C2%B5m%2C%20Size%20600%2C%20G%201?unique=537853f)
|
Typennummer: GAF 55 A |
104.45 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

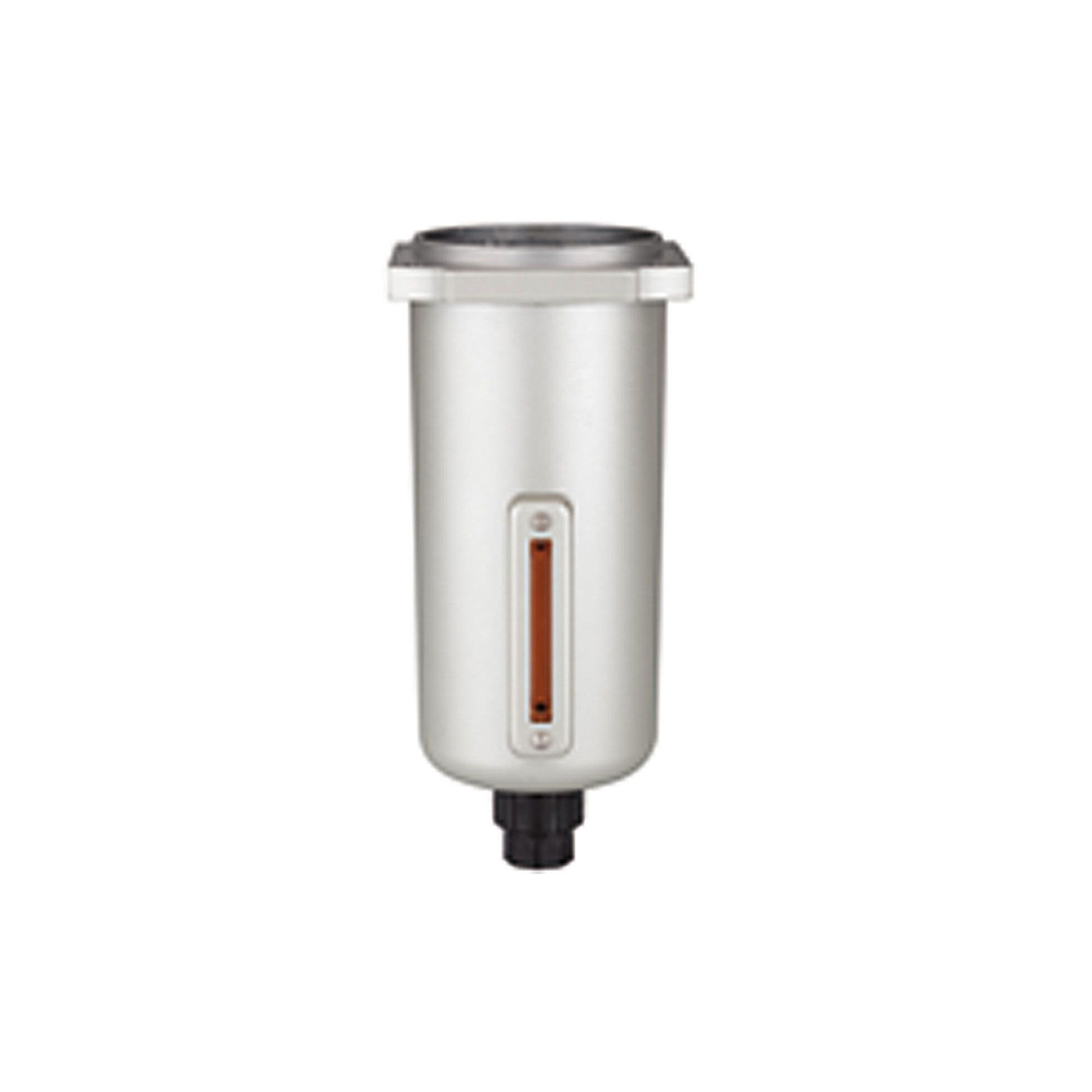

![[116411] RIEGLER Metal container with viewing tube, fully automated bleeder valve](/web/image/product.template/201142/image_128/%5B116411%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20fully%20automated%20bleeder%20valve?unique=a534cde)
|
