RIEGLER Filter »G«, PC container, Protective cage, 5 µm, Size 300, G 1/4

Price:

53.85 €

English (US)
  2. Shop
  3. Filters
  4. RIEGLER Filter »G«, PC container, Protective cage, 5 µm, Size 300, G 1/4
RIEGLER Filter »FUTURA«, Metal container, 5 µm, Size 4, G 1, Fully auto.
RIEGLER Filter »FUTURA«, Metal container, 5 µm, Size 4, G 1, Fully auto.
153.37 € 153.37 €
RIEGLER Filter »inline«, 36 µm, G 3/8 IT/IT, AF 24
RIEGLER Filter »inline«, 36 µm, G 3/8 IT/IT, AF 24
25.03 € 25.03 €

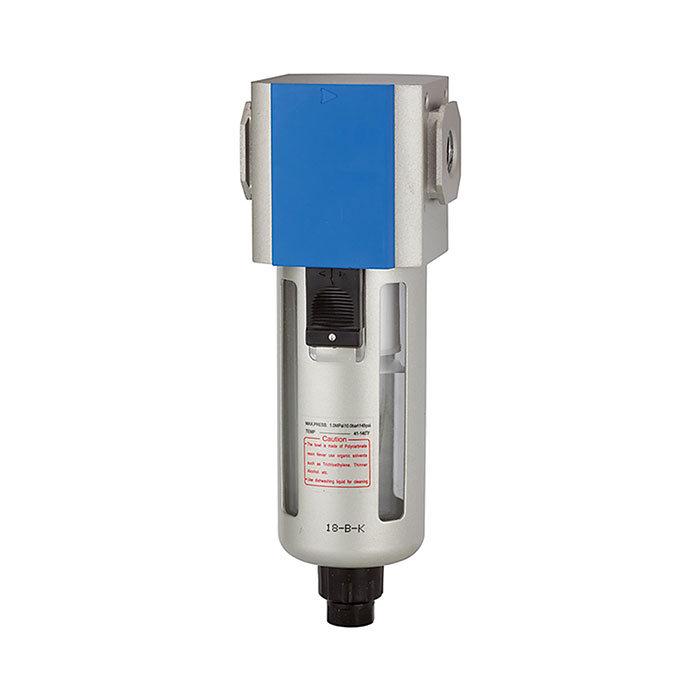

RIEGLER Filter »G«, PC container, Protective cage, 5 µm, Size 300, G 1/4

https://www.filcom-technik.de/web/image/product.template/201126/image_1920?unique=ab4dff1

Type number: GF 11 A

53.85 € 53.85 EUR 53.85 € VAT Included

67.88 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.

Product no. :

116395

EAN :

4047322308113

Category :

Filters

Weight :

0.43 kg

Filter "G", with PC bowl, protective cage and mounting bracket, 5 µm, BG 300, G 1/4, PE max. 10 bar, working pressure 1.5 - 9 bar, drain: VA

Inlet pressure max. 10 bar
Housing Die-cast aluminum
Sealing material NBR
Flow rate measurement with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar
Series G
Container Polycarbonate container with protective cage
Filter fineness 5 µm
Medium temperature max. 70 °C
Ambient temperature max. 70 °C
Working pressure min. 1.5 bar
Working pressure max. 9 bar
Thread G 1/4
Flow rate 1550 l/min
Condensate drain fully automatic
BG 300
A 51 mm
B 164 mm
C 21 mm
D 143 mm
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Class name EASY

Variants / Alternatives

Product Price

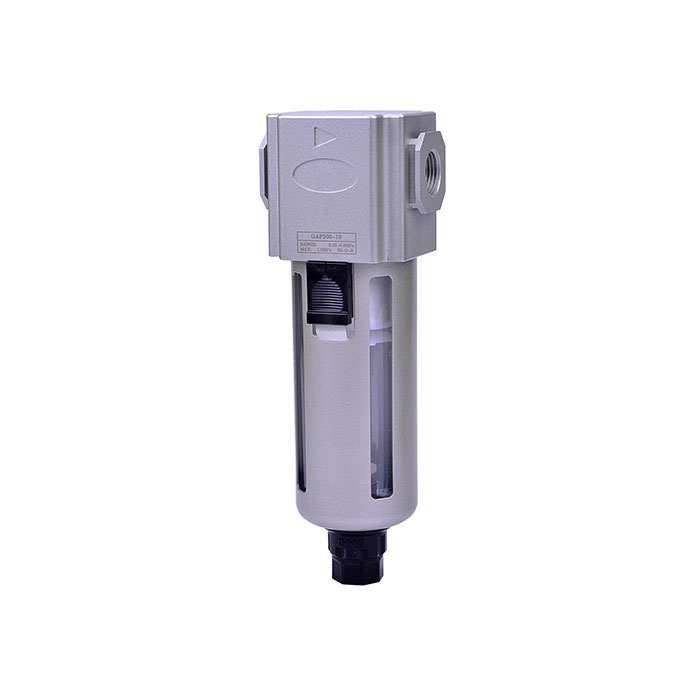

[178461] RIEGLER Filter »GA«, PC container, Protective cage, 5 µm, Size 300, G 1/4

Typennummer: GAF 11 A

 55.47 €

Maintenance, wear and spare parts

Product Price

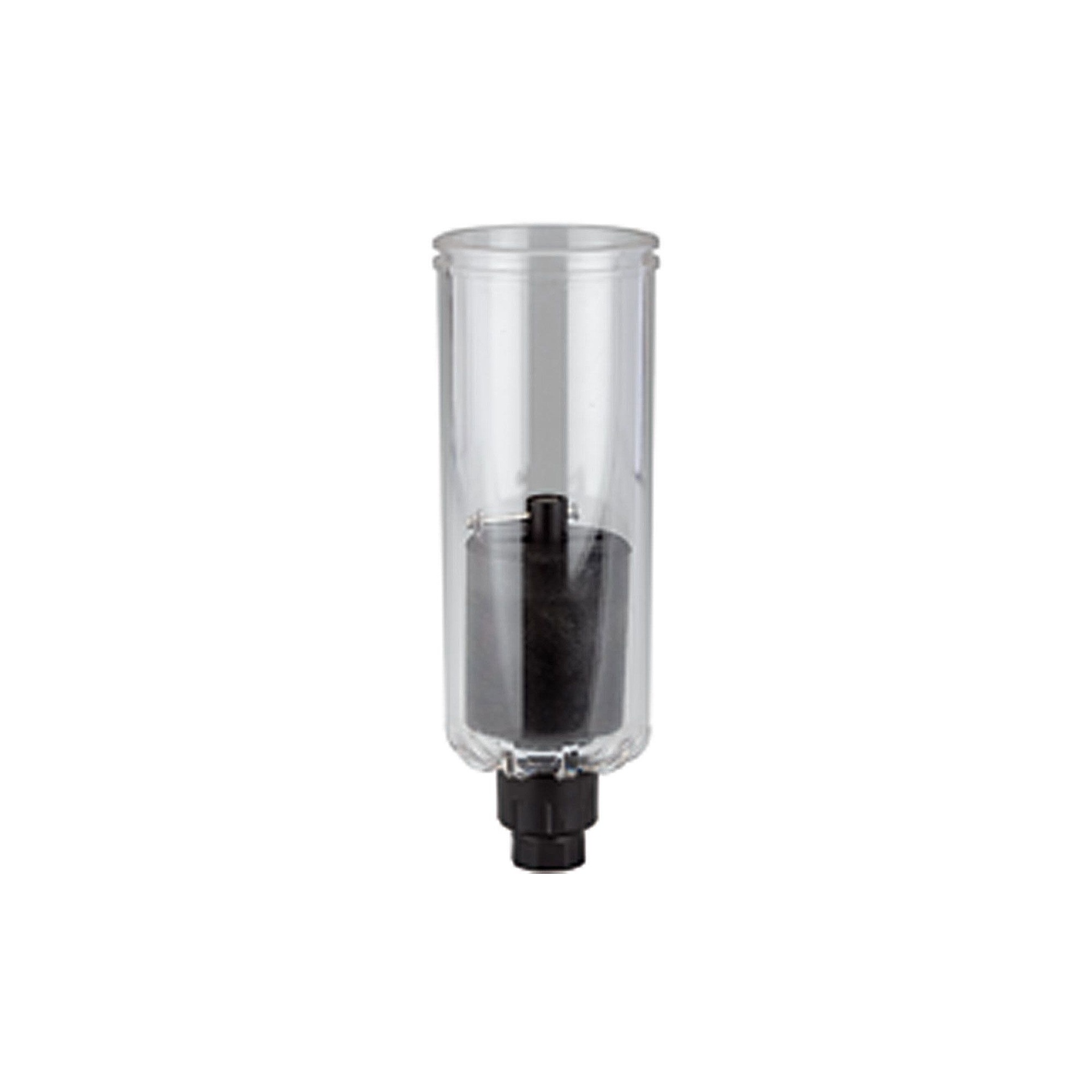

[116394] RIEGLER Polycarbonate container with fully automated bleeder valve

Type number: GF 11 600

 29.57 €
