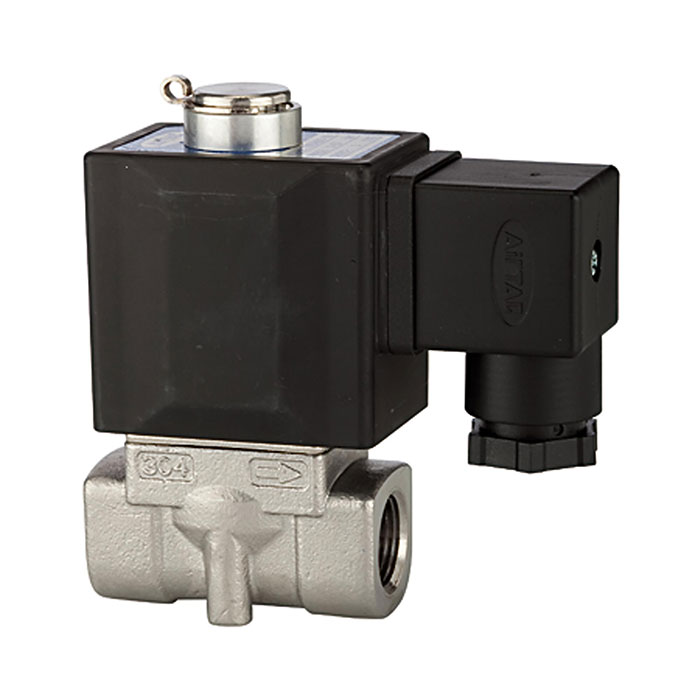

RIEGLER 2/2-way solenoid valve NO, directly operated, 230 V, 50 Hz
Type number: MV 1524 ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
2/2-way solenoid valve, stainless steel, NO, direct operated, 230 V, 50 Hz, max. medium temp. 80 °C / 90 °C, G 1/2, PN 0 - 7 bar
| Housing | Stainless steel 1.4301 |
| Sealing material | FPM |
| Protection class | IP 65 |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 7 bar |
| Interior parts | Stainless steel |
| Valve seat | Stainless steel 1.4301 |
| Thread | G 1/2 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| NW | 5 |
| Design | 2 |
| A | 85 mm |
| B | 52 mm |
| C | 92 mm |
| Class name | STAINLESS STEEL |
