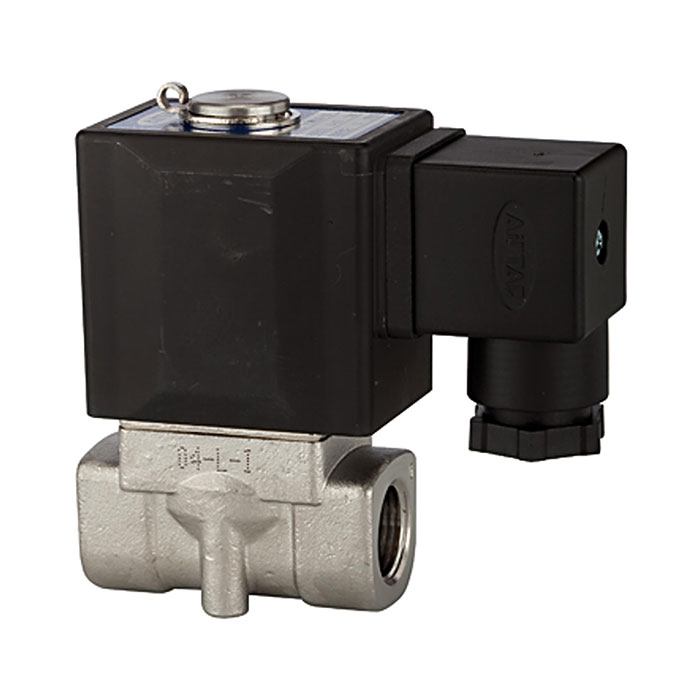

RIEGLER 2/2-way solenoid valve NC, directly operated, 230 V, 50 Hz
Type number: MVH 1501 ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 2/2-way MV. made of stainless steel 1.4301, for industrial systems, max. 30 bar - Type MVH 1501 ES
The RIEGLER 2/2-way valve, ES, NC, direct acting, 230 V, 50 Hz, G 1/8, PN 0-30 bar switches compressed air and media flows electrically controlled via a solenoid coil. The housing is made of stainless steel 1.4301 with FPM seals. The operating pressure range is 0 bar to 30 bar. Connection thread G 1/8 (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Protection class IP 65. Fast, precise switching for automated processes.
Field of application
Typical areas of application: Automation, mechanical engineering and process technology.
| Housing | Stainless steel 1.4301 |
| Sealing material | FPM |
| Protection class | IP 65 |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 30 bar |
| Interior parts | Stainless steel |
| Valve seat | Stainless steel 1.4301 |
| Thread | G 1/8 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| NW | 1.5 |
| Design | 1 |
| A | 70 mm |
| B | 40 mm |
| C | 70.7 mm |
| Class name | STAINLESS STEEL |
