RIEGLER Repair/sliding connector, MS, "sharkbite", for outer tube ø 22 mm
Type number: RPSVMN22
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Repair/sliding connector made of brass, for compressed air distribution, max. 20 bar - Type RPSVMN22
The RIEGLER repair/sliding connector, MS, "sharkbite", for pipe outer ø 22 mm conducts compressed air and media flexibly or permanently installed. The housing is made of brass. The operating pressure range is -0.95 bar to 20 bar. The operating temperature is between -20 °C and 65 °C. Flexible and pressure-resistant.
Field of application
Typical areas of application: Compressed air distribution and media lines.
| Working pressure min. | -0.95 bar |
| Working pressure max. | 20 bar |
| Material | Brass |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 65 °C |
| Length | 102 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| for pipe outer Ø | 22 mm |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Stand Material Compliance | 45047 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[117059] RIEGLER Repair/sliding connector, MS, "sharkbite", for outer tube dia. 28 mm](/web/image/product.template/274781/image_128/%5B117059%5D%20RIEGLER%20Repair-sliding%20connector%2C%20MS%2C%20%22sharkbite%22%2C%20for%20outer%20tube%20dia.%2028%20mm?unique=29f3ffb)
|
Type number: RPSVMN28 |
30.02 € | |
![[117061] RIEGLER Repair/sliding connector, MS, "sharkbite", for outer tube dia. 42 mm](/web/image/product.template/274783/image_128/%5B117061%5D%20RIEGLER%20Repair-sliding%20connector%2C%20MS%2C%20%22sharkbite%22%2C%20for%20outer%20tube%20dia.%2042%20mm?unique=a30c40a)
|
Type number: RPSVMN42 |
75.05 € | |

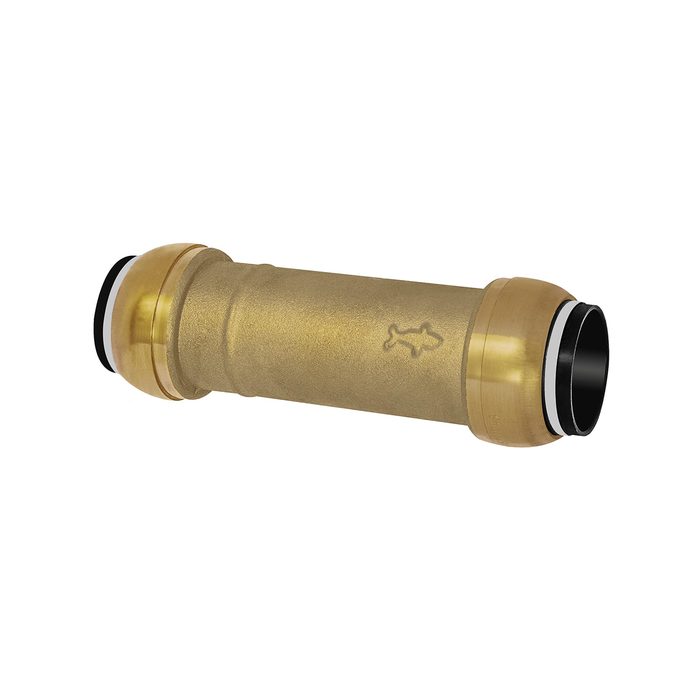

![[117057] RIEGLER Repair/sliding connector, MS, "sharkbite", for outer tube ø 15 mm](/web/image/product.template/274779/image_128/%5B117057%5D%20RIEGLER%20Repair-sliding%20connector%2C%20MS%2C%20%22sharkbite%22%2C%20for%20outer%20tube%20%C3%B8%2015%20mm?unique=7ec0223)
|
