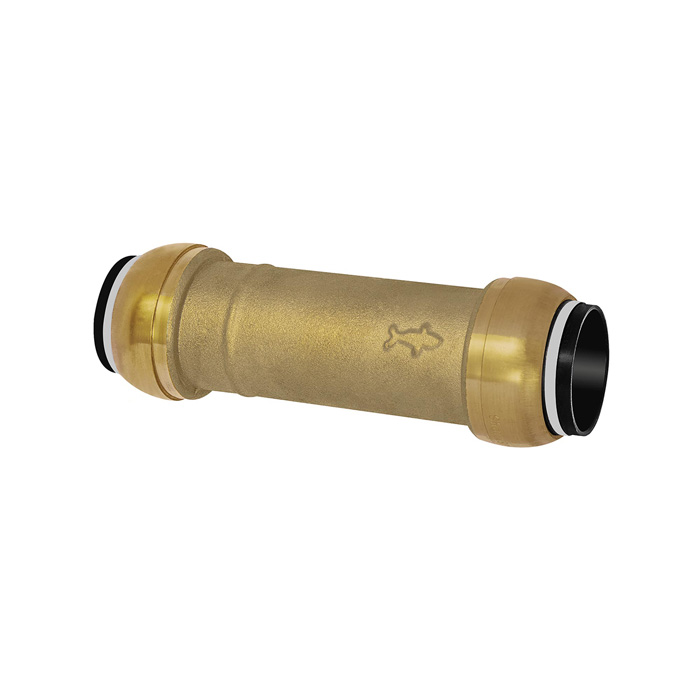

RIEGLER Repair/sliding connector, MS, "sharkbite", for outer tube dia. 42 mm
Type number: RPSVMN42
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Repair/slide in connector, Brass, »sharkbite«, for pipe exterior ø 42 mm
| Working pressure min. | -0.95 bar |
| Working pressure max. | 20 bar |
| Material | Brass |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 65 °C |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Stand Material Compliance | 45047 |
| Length | 181 mm |
| for pipe outer Ø | 42 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[117059] RIEGLER Repair/sliding connector, MS, "sharkbite", for outer tube dia. 28 mm](/web/image/product.template/274781/image_128/%5B117059%5D%20RIEGLER%20Repair-sliding%20connector%2C%20MS%2C%20%22sharkbite%22%2C%20for%20outer%20tube%20dia.%2028%20mm?unique=047c651)
|
Type number: RPSVMN28 |
30.02 € | |
![[117057] RIEGLER Repair/sliding connector, MS, "sharkbite", for outer tube ø 15 mm](/web/image/product.template/274779/image_128/%5B117057%5D%20RIEGLER%20Repair-sliding%20connector%2C%20MS%2C%20%22sharkbite%22%2C%20for%20outer%20tube%20%C3%B8%2015%20mm?unique=89dd5d2)
|
Type number: RPSVMN15 |
15.68 € | |
![[117058] RIEGLER Repair/sliding connector, MS, "sharkbite", for outer tube ø 22 mm](/web/image/product.template/274780/image_128/%5B117058%5D%20RIEGLER%20Repair-sliding%20connector%2C%20MS%2C%20%22sharkbite%22%2C%20for%20outer%20tube%20%C3%B8%2022%20mm?unique=c2f770d)
|
Type number: RPSVMN22 |
19.91 € | |
![[117060] RIEGLER Repair/sliding connector, MS, "sharkbite", for outer tube ø 35 mm](/web/image/product.template/274782/image_128/%5B117060%5D%20RIEGLER%20Repair-sliding%20connector%2C%20MS%2C%20%22sharkbite%22%2C%20for%20outer%20tube%20%C3%B8%2035%20mm?unique=eba9385)
|
Type number: RPSVMN35 |
52.90 € | |
![[117062] RIEGLER Repair/sliding connector, MS, "sharkbite", for outer tube ø 54 mm](/web/image/product.template/274784/image_128/%5B117062%5D%20RIEGLER%20Repair-sliding%20connector%2C%20MS%2C%20%22sharkbite%22%2C%20for%20outer%20tube%20%C3%B8%2054%20mm?unique=ccc96d7)
|
Type number: RPSVMN54 |
104.08 € | |
