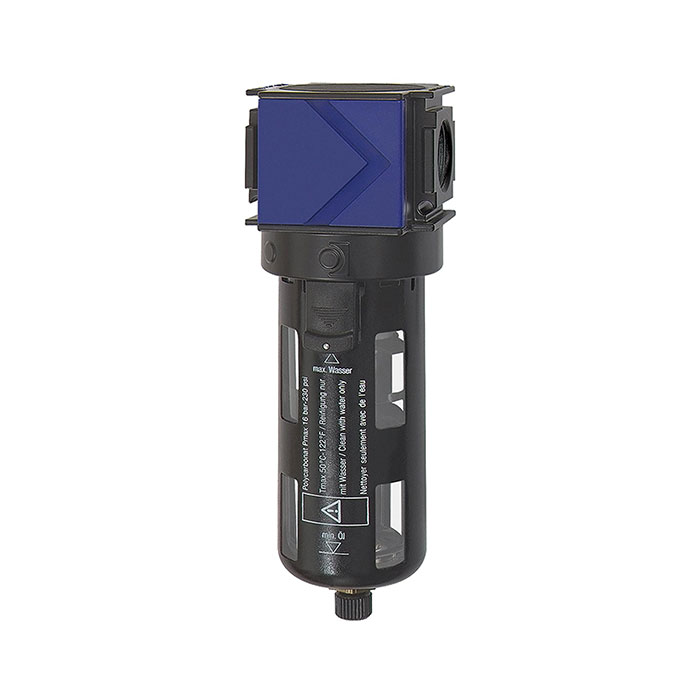

RIEGLER Filter »variobloc«, PC container, Protective cage, Size 2, G 1/2
Type number: VF 24 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Filter "variobloc" made of die-cast zinc, for compressed air treatment, G 1/2 - type VF 24 S
The RIEGLER "variobloc" filter, polycarbonate container, protective cage, BG 2, G 1/2 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of die-cast zinc with NBR seals. The maximum inlet pressure is 16 bar. Connection thread G 1/2 - suitable for common industry standards. The flow rate is 3200 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 40 µm, polycarbonate container with protective cage. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 40 µm |
| Medium temperature max. | 50 °C |
| Ambient temperature max. | 50 °C |
| Thread | G 1/2 |
| Flow rate | 3200 l/min |
| Condensate drain | manually |
| BG | 2 |
| A | 70 mm |
| B | 202 mm |
| C | 26 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

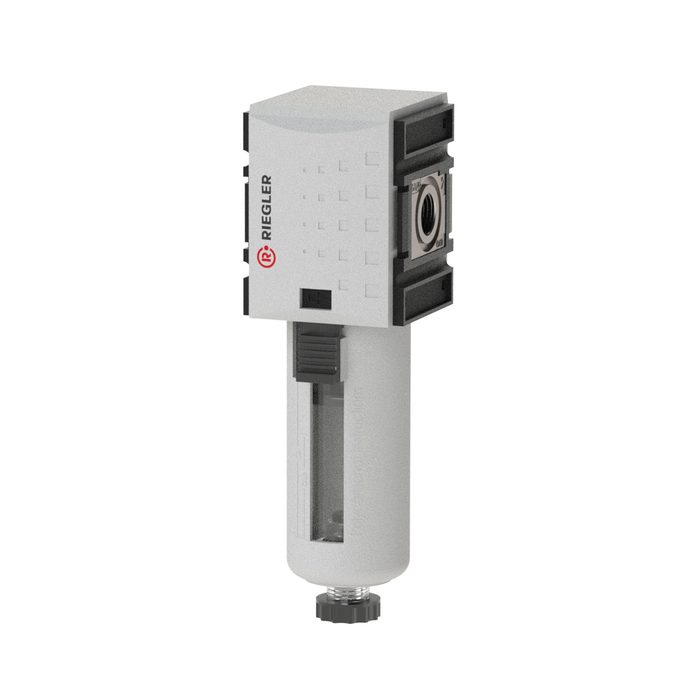

![[100148] Riegler Filter »FUTURA«, PC container, 5 µm, size 2, G 1/2, semi autom.](/web/image/product.template/123211/image_128/%5B100148%5D%20Riegler%20Filter%20%C2%BBFUTURA%C2%AB%2C%20PC%20container%2C%205%20%C2%B5m%2C%20size%202%2C%20G%201-2%2C%20semi%20autom.?unique=a714ed6)
|
