RIEGLER Filter »variobloc« with metal container, Size 1, G 3/8
Type number: VF 23 M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Filter "variobloc" made of die-cast zinc, for compressed air treatment, G 3/8 - type VF 23 M
The RIEGLER "variobloc" filter, metal container incl. sight tube, BG 1, G 3/8 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of die-cast zinc with NBR seals. The maximum inlet pressure is 20 bar. Connection thread G 3/8 - suitable for common industry standards. The flow rate is 2000 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 40 µm, container made of metal container with sight tube. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Metal container with sight tube |
| Filter fineness | 40 µm |
| Medium temperature max. | 80 °C |
| Ambient temperature max. | 80 °C |
| Thread | G 3/8 |
| Flow rate | 2000 l/min |
| Condensate drain | manually |
| BG | 1 |
| A | 48 mm |
| B | 155 mm |
| C | 22 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[125315] RIEGLER Filter »variobloc« with metal container, Size 1, G 1/4](/web/image/product.template/202458/image_128/%5B125315%5D%20RIEGLER%20Filter%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%201%2C%20G%201-4?unique=62508d6)
|
Type number: VF 22 M |
81.97 € | |

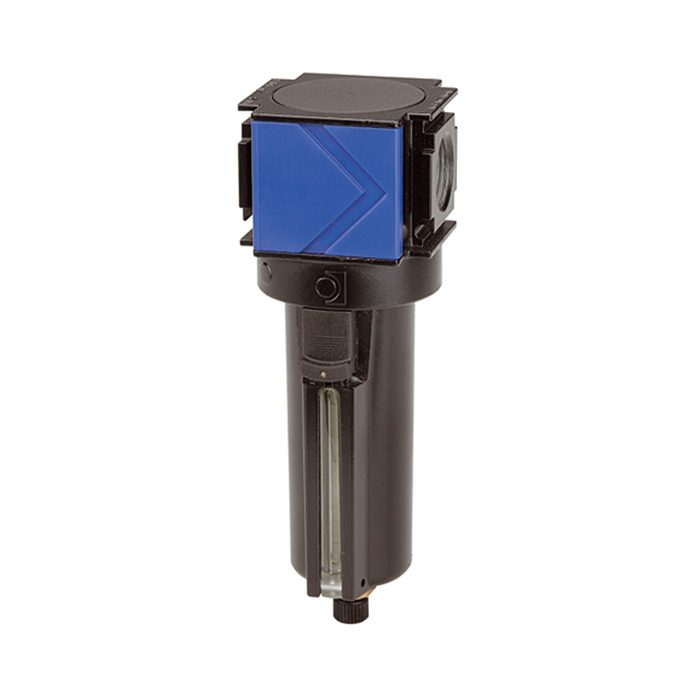

![[125319] RIEGLER Filter »variobloc« with metal container, Size 2, G 1](/web/image/product.template/202462/image_128/%5B125319%5D%20RIEGLER%20Filter%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%202%2C%20G%201?unique=23064b7)
|
Type number: VF 26 M |
123.77 € | |
![[125317] RIEGLER Filter »variobloc« with metal container, Size 2, G 1/2](/web/image/product.template/202460/image_128/%5B125317%5D%20RIEGLER%20Filter%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%202%2C%20G%201-2?unique=23064b7)
|
Type number: VF 24 M |
87.68 € | |

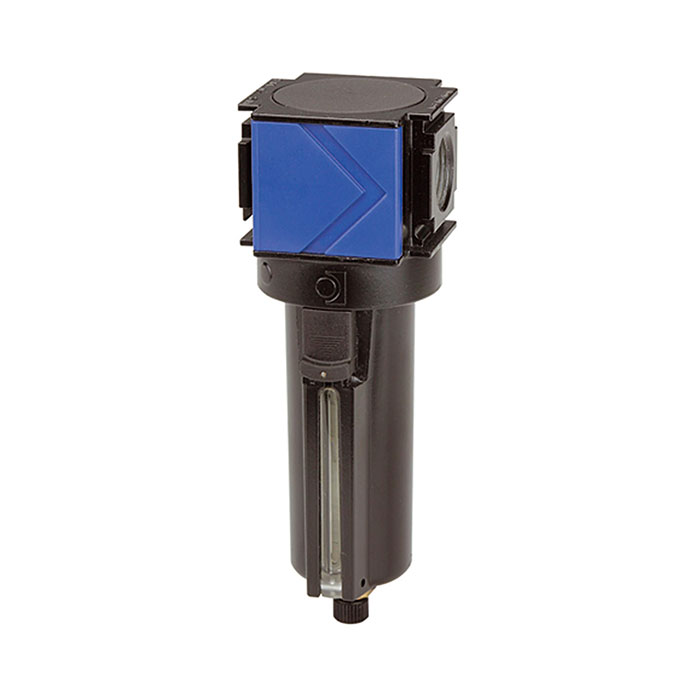

![[125318] RIEGLER Filter »variobloc« with metal container, Size 2, G 3/4](/web/image/product.template/202461/image_128/%5B125318%5D%20RIEGLER%20Filter%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%202%2C%20G%203-4?unique=23064b7)
|
Type number: VF 25 M |
87.81 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100672] RIEGLER Filter element 40 µm, PE sintered](/web/image/product.template/140107/image_128/%5B100672%5D%20RIEGLER%20Filter%20element%2040%20%C2%B5m%2C%20PE%20sintered?unique=e8683e2)
|
Type number: VZ 741 |
5.09 € | |

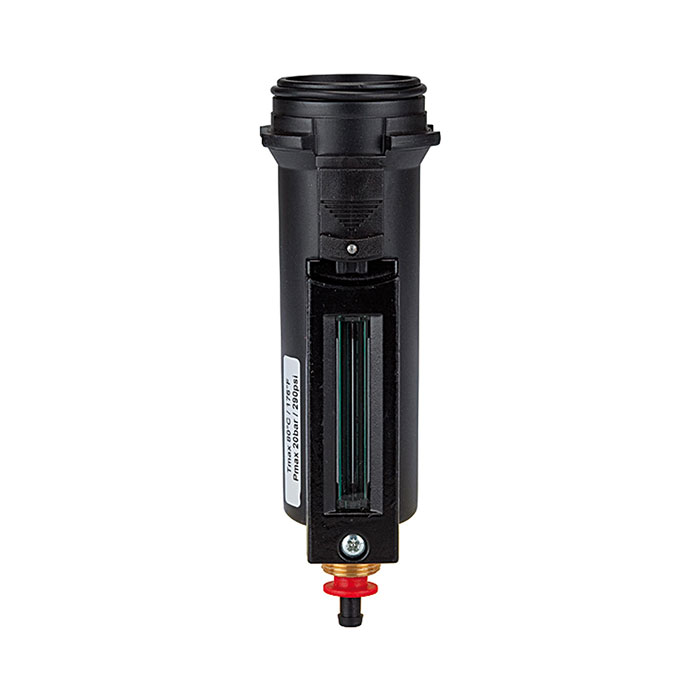

![[100668] RIEGLER Metal container incl. viewing tube, for »variobloc«, Size 1](/web/image/product.template/140103/image_128/%5B100668%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201?unique=5ffa4de)
|
Type number: VZ 551 |
42.90 € | |
