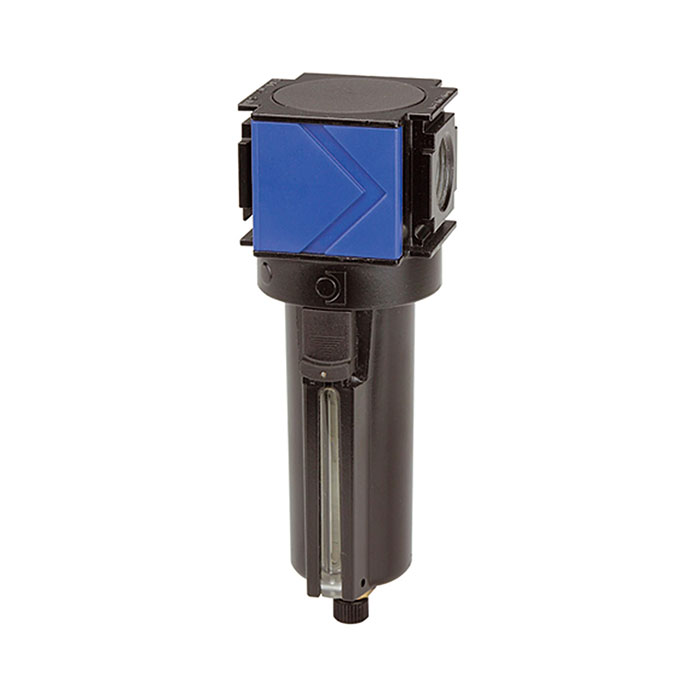

RIEGLER Filter »variobloc« with metal container, Size 2, G 3/4
Type number: VF 25 M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Filter "variobloc" made of die-cast zinc, for compressed air treatment, G 3/4 - type VF 25 M
The RIEGLER "variobloc" filter, metal container incl. sight tube, BG 2, G 3/4 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of die-cast zinc with NBR seals. The maximum inlet pressure is 20 bar. Connection thread G 3/4 - suitable for common industry standards. The flow rate is 3500 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 40 µm, container made of metal container with sight tube. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Metal container with sight tube |
| Filter fineness | 40 µm |
| Medium temperature max. | 80 °C |
| Ambient temperature max. | 80 °C |
| Thread | G 3/4 |
| Flow rate | 3500 l/min |
| Condensate drain | manually |
| BG | 2 |
| A | 70 mm |
| B | 202 mm |
| C | 26 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[125315] RIEGLER Filter »variobloc« with metal container, Size 1, G 1/4](/web/image/product.template/202458/image_128/%5B125315%5D%20RIEGLER%20Filter%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%201%2C%20G%201-4?unique=62508d6)
|
Type number: VF 22 M |
81.97 € | |
![[125316] RIEGLER Filter »variobloc« with metal container, Size 1, G 3/8](/web/image/product.template/202459/image_128/%5B125316%5D%20RIEGLER%20Filter%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%201%2C%20G%203-8?unique=23064b7)
|
Type number: VF 23 M |
61.49 € | |

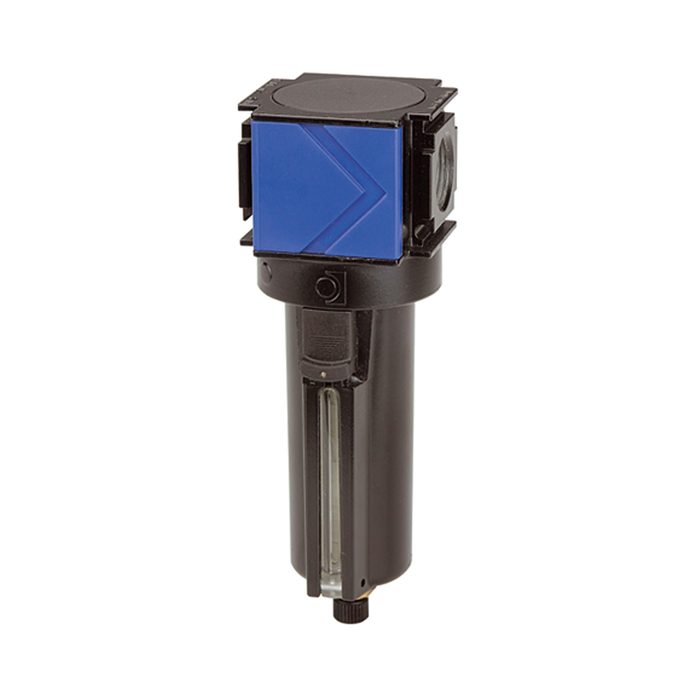

![[125319] RIEGLER Filter »variobloc« with metal container, Size 2, G 1](/web/image/product.template/202462/image_128/%5B125319%5D%20RIEGLER%20Filter%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%202%2C%20G%201?unique=23064b7)
|
