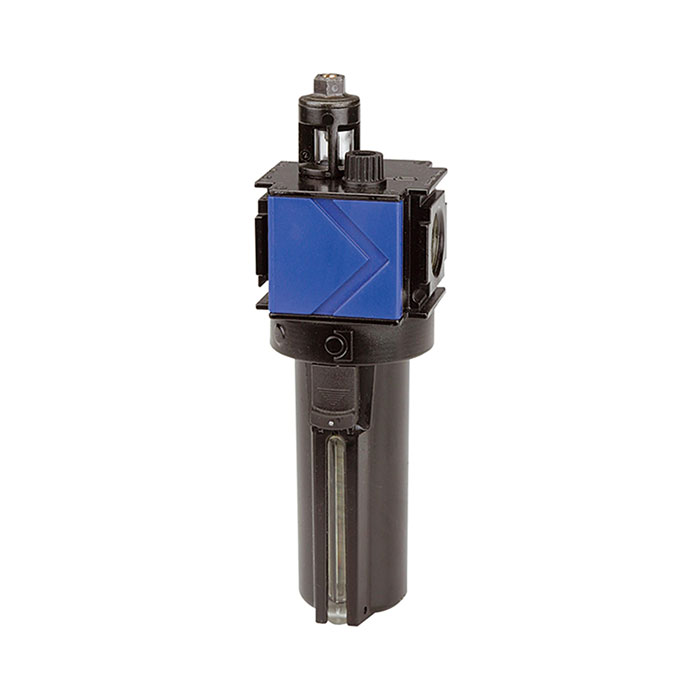

RIEGLER Mist oiler »variobloc« with metal container, Size 2, G 1/2
Type number: VN 24 M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Mist lubricator "variobloc" with metal tank incl. sight tube, metal drip cap, BG 2, G 1/2, PE max. 20 bar, max. medium temp. 80°C
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Metal container with sight tube |
| Dropper attachment | PA |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature max. | 80 °C |
| Ambient temperature max. | 80 °C |
| Thread | G 1/2 |
| Flow rate | 4600 l/min |
| BG | 2 |
| A | 70 mm |
| B | 224 mm |
| C | 65 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[125335] RIEGLER Mist oiler »variobloc« with metal container, Size 1, G 1/4](/web/image/product.template/202478/image_128/%5B125335%5D%20RIEGLER%20Mist%20oiler%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%201%2C%20G%201-4?unique=b791cea)
|
Type number: VN 22 M |
120.71 € | |
![[125336] RIEGLER Mist oiler »variobloc« with metal container, Size 1, G 3/8](/web/image/product.template/202479/image_128/%5B125336%5D%20RIEGLER%20Mist%20oiler%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%201%2C%20G%203-8?unique=1b073aa)
|
Type number: VN 23 M |
120.71 € | |
![[125339] RIEGLER Mist oiler »variobloc« with metal container, Size 2, G 1](/web/image/product.template/202482/image_128/%5B125339%5D%20RIEGLER%20Mist%20oiler%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%202%2C%20G%201?unique=4154d89)
|
Type number: VN 26 M |
116.27 € | |
![[125338] RIEGLER Mist oiler »variobloc« with metal container, Size 2, G 3/4](/web/image/product.template/202481/image_128/%5B125338%5D%20RIEGLER%20Mist%20oiler%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%202%2C%20G%203-4?unique=95ee7d0)
|
Type number: VN 25 M |
85.69 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

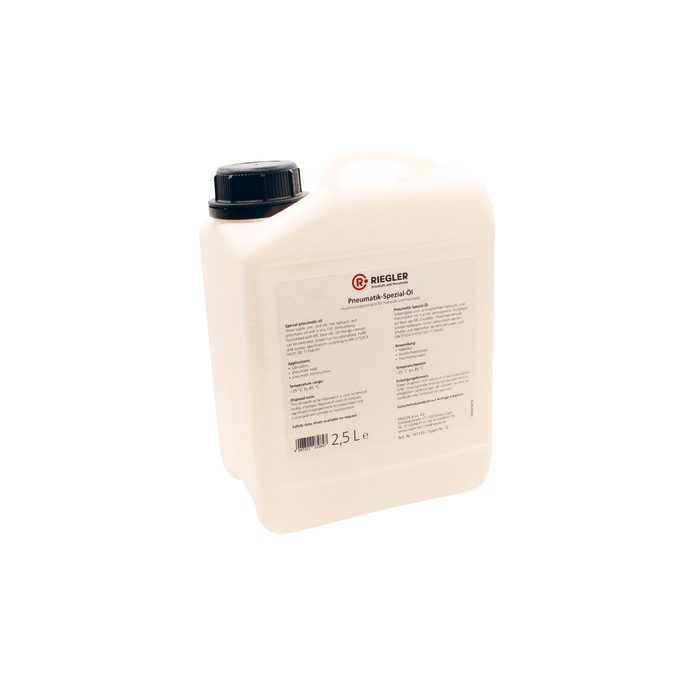

![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=f58d385)
|
Type number: 32 |
34.09 € | |

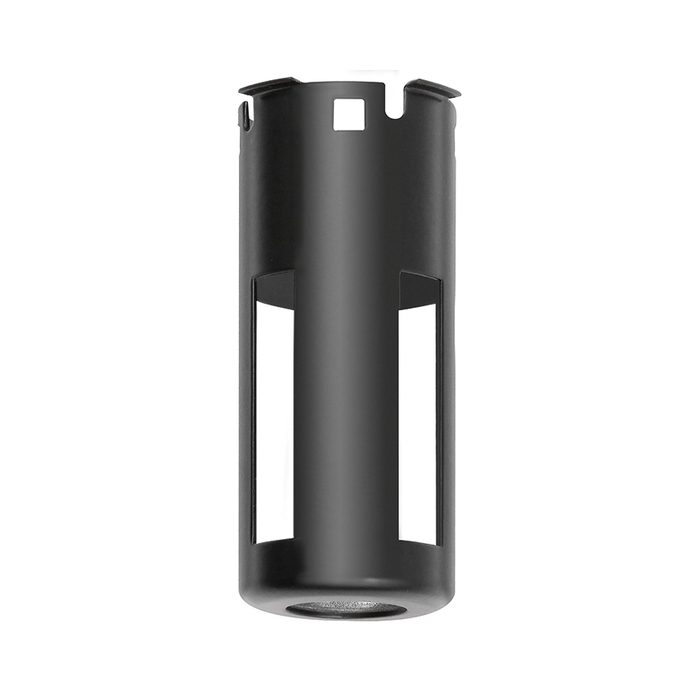

![[100667] RIEGLER Protective cage, for »variobloc«, Size 2, G 1/2, G 3/4 and G 1](/web/image/product.template/140102/image_128/%5B100667%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2%2C%20G%203-4%20and%20G%201?unique=4fd2df7)
|
Type number: VZ 532 |
18.14 € | |

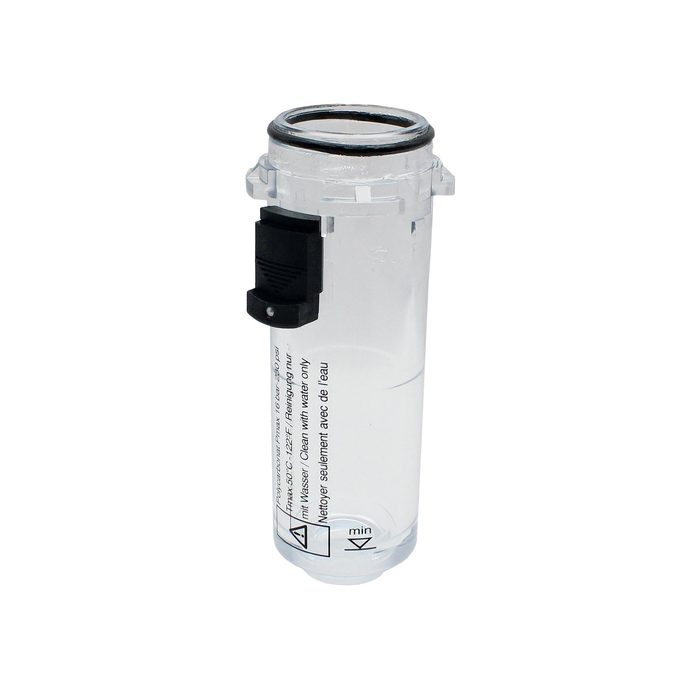

![[100698] RIEGLER Polycarbonate container](/web/image/product.template/140133/image_128/%5B100698%5D%20RIEGLER%20Polycarbonate%20container?unique=e47882f)
|
Type number: VZ 602 |
17.27 € | |

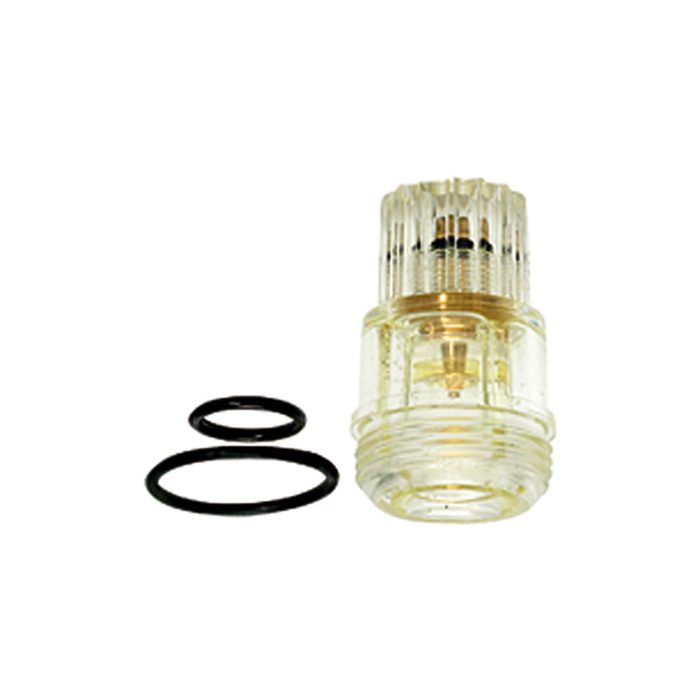

![[100709] RIEGLER Drip cap made of plastic, for mist oiler »variobloc«, Size 2](/web/image/product.template/140145/image_128/%5B100709%5D%20RIEGLER%20Drip%20cap%20made%20of%20plastic%2C%20for%20mist%20oiler%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=0709c97)
|
