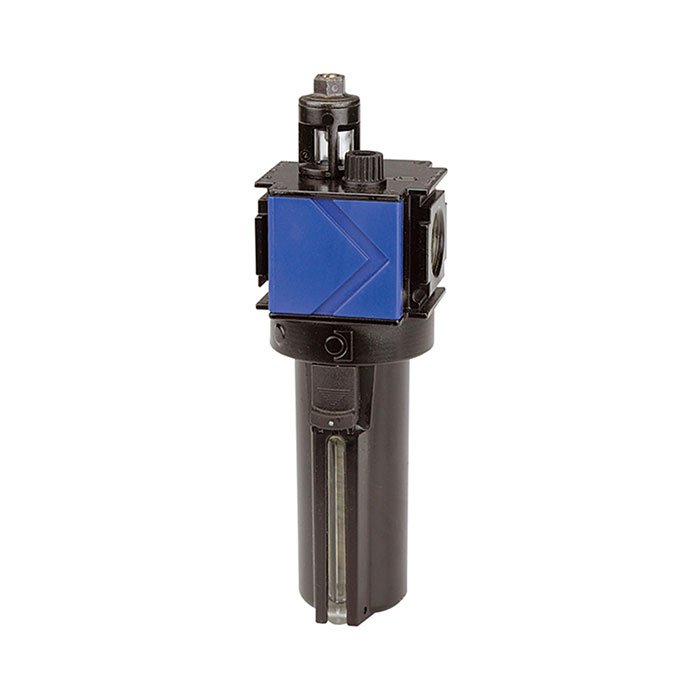

RIEGLER Mist oiler »variobloc« with metal container, Size 1, G 3/8
Type number: VN 23 M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Mist lubricator "variobloc" made of die-cast zinc, for compressed air treatment, G 3/8 - type VN 23 M
The RIEGLER mist lubricator "variobloc", with metal container, sight tube, BG 1, G 3/8 doses precise quantities of oil into the compressed air flow and automatically lubricates pneumatic consumers. The housing is made of die-cast zinc with NBR seals. The maximum inlet pressure is 20 bar. Connection thread G 3/8 - suitable for common industry standards. The flow rate is 4400 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Metal container with sight tube. Automatic lubrication extends the service life of moving parts.
Field of application
Typical areas of application: Lubrication of pneumatic cylinders, valves and pneumatic tools.
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Metal container with sight tube |
| Dropper attachment | PA |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature max. | 80 °C |
| Ambient temperature max. | 80 °C |
| Thread | G 3/8 |
| Flow rate | 4400 l/min |
| BG | 1 |
| A | 48 mm |
| B | 180 mm |
| C | 60 mm |
| Class name | PLUS |
