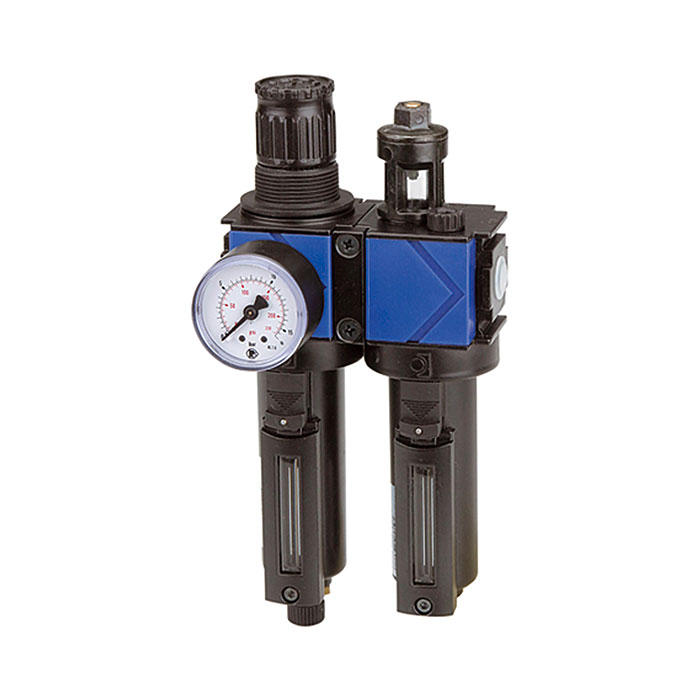

RIEGLER Service unit 2-part »variobloc«, Metal container, Size 1, G 3/8
Type number: VW 23 M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 2-piece "variobloc" maintenance unit made of die-cast zinc, for compressed air preparation - type VW 23 M
The RIEGLER maintenance unit 2-piece "variobloc", metal container, BG 1, G 3/8 combines compressed air filter, regulator and lubricator in one compact maintenance unit. The housing is made of die-cast zinc with NBR seals. The control range extends from 0.5 bar to 10 bar with a maximum inlet pressure of 20 bar. Connection thread G 3/8 - suitable for common industry standards. The flow rate is 1800 l/min (at P1 = 10 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 40 µm, container made of metal container with sight tube. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Metal container with sight tube |
| Filter fineness | 40 µm |
| Dropper attachment | PA |
| Medium temperature max. | 80 °C |
| Ambient temperature max. | 80 °C |
| Spring cover | POM |
| Thread | G 3/8 |
| Flow rate | 1800 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | manually |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 1 |
| A | 96 mm |
| B | 203 mm |
| C | 68 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[125345] RIEGLER Service unit 2-part »variobloc«, Metal container, Size 1, G 1/4](/web/image/product.template/202488/image_128/%5B125345%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBvariobloc%C2%AB%2C%20Metal%20container%2C%20Size%201%2C%20G%201-4?unique=905e693)
|
Type number: VW 22 M |
290.60 € | |
![[125349] RIEGLER Service unit 2-part »variobloc«, Metal container, Size 2, G 1](/web/image/product.template/202492/image_128/%5B125349%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBvariobloc%C2%AB%2C%20Metal%20container%2C%20Size%202%2C%20G%201?unique=905e693)
|
Type number: VW 26 M |
329.87 € | |
![[125347] RIEGLER Service unit 2-part »variobloc«, Metal container, Size 2, G 1/2](/web/image/product.template/202490/image_128/%5B125347%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBvariobloc%C2%AB%2C%20Metal%20container%2C%20Size%202%2C%20G%201-2?unique=905e693)
|
Type number: VW 24 M |
205.30 € | |
![[125348] RIEGLER Service unit 2-part »variobloc«, Metal container, Size 2, G 3/4](/web/image/product.template/202491/image_128/%5B125348%5D%20RIEGLER%20Service%20unit%202-part%20%C2%BBvariobloc%C2%AB%2C%20Metal%20container%2C%20Size%202%2C%20G%203-4?unique=905e693)
|
Type number: VW 25 M |
287.42 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100751] RIEGLER Compact connecting set, for »variobloc«, Size 1, G 3/8](/web/image/product.template/140187/image_128/%5B100751%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%203-8?unique=aacab88)
|
Type number: VZ 102 |
9.81 € | |
![[100710] RIEGLER Drip cap made of metal, for mist oiler »variobloc«, Size 1](/web/image/product.template/140146/image_128/%5B100710%5D%20RIEGLER%20Drip%20cap%20made%20of%20metal%2C%20for%20mist%20oiler%20%C2%BBvariobloc%C2%AB%2C%20Size%201?unique=a65cd1b)
|
Type number: VZ 731 |
25.85 € | |

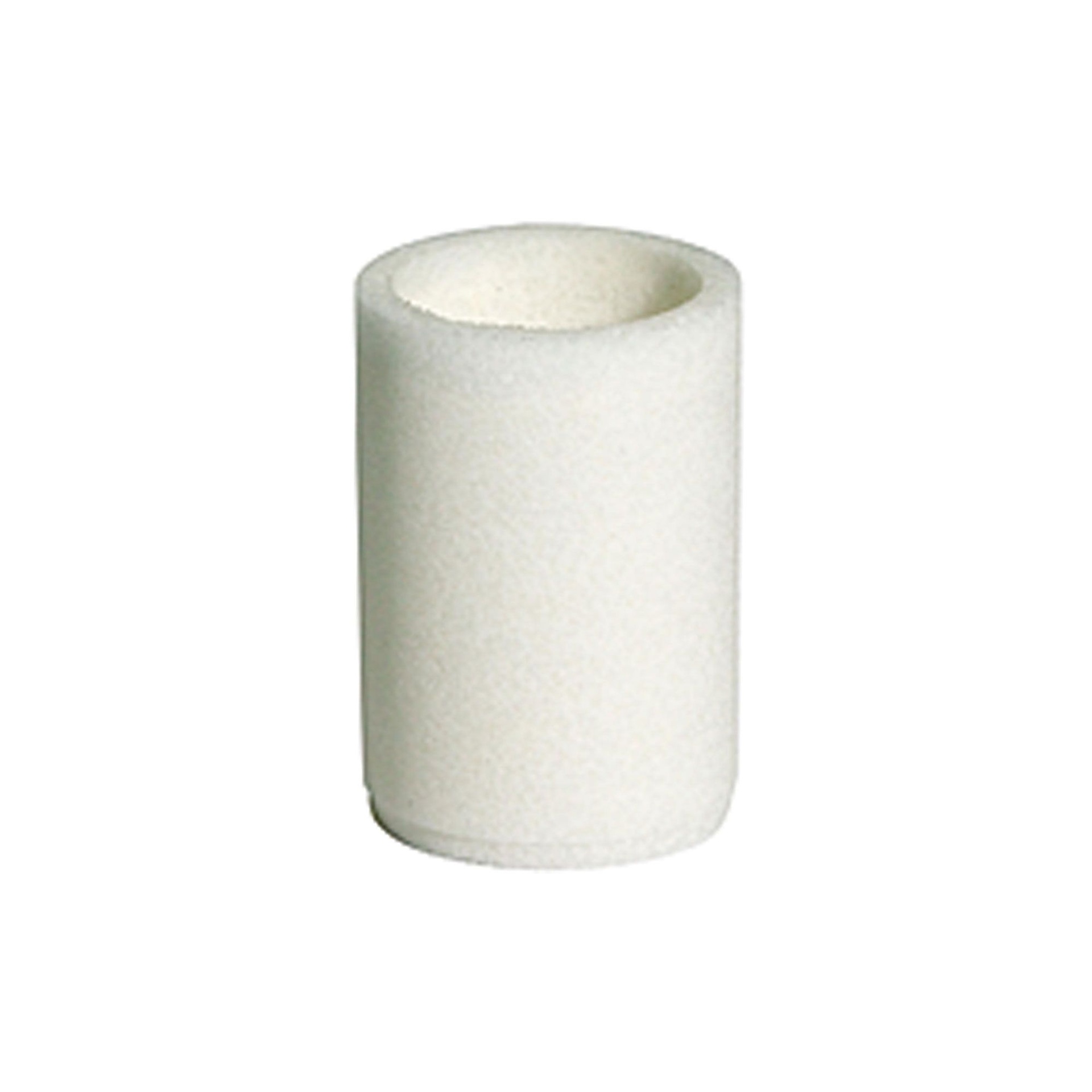

![[100672] RIEGLER Filter element 40 µm, PE sintered](/web/image/product.template/140107/image_128/%5B100672%5D%20RIEGLER%20Filter%20element%2040%20%C2%B5m%2C%20PE%20sintered?unique=c7c9248)
|
Type number: VZ 741 |
5.09 € | |

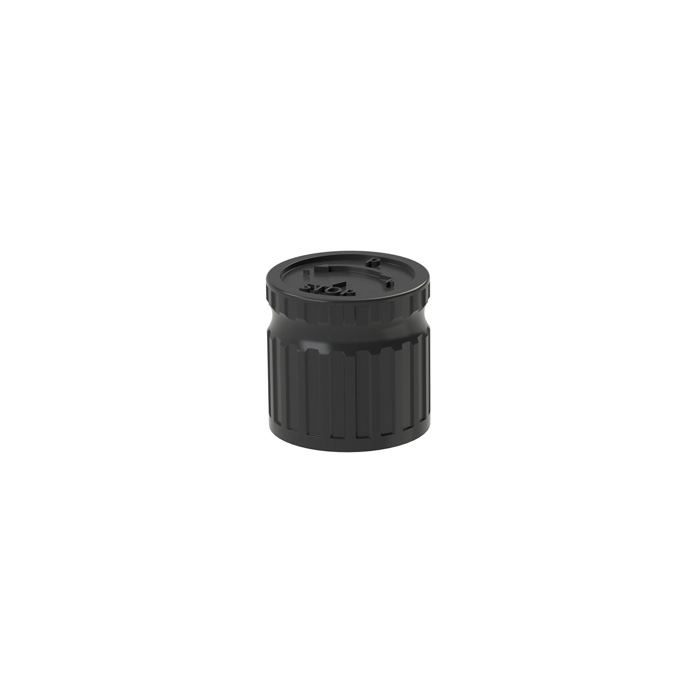

![[118707] RIEGLER Handwheel "variobloc" BG 1 for pressure and filter regulator](/web/image/product.template/280930/image_128/%5B118707%5D%20RIEGLER%20Handwheel%20%22variobloc%22%20BG%201%20for%20pressure%20and%20filter%20regulator?unique=00f75f8)
|
Type number: 423.3.97 |
1.82 € | |
![[100699] RIEGLER Metal container incl. viewing tube](/web/image/product.template/140134/image_128/%5B100699%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube?unique=8ec0ac3)
|
Type number: VZ 651 |
47.16 € | |

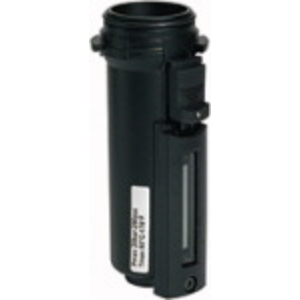

![[100668] RIEGLER Metal container incl. viewing tube, for »variobloc«, Size 1](/web/image/product.template/140103/image_128/%5B100668%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201?unique=68fb6c8)
|
Type number: VZ 551 |
42.90 € | |

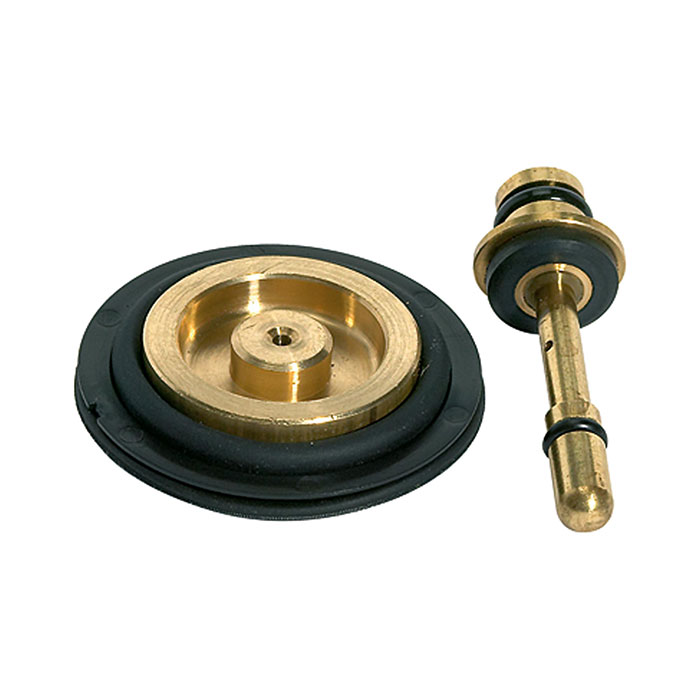

![[100649] RIEGLER Wear part set for »variobloc«, Size 1, G 1/4 and G 3/8](/web/image/product.template/140084/image_128/%5B100649%5D%20RIEGLER%20Wear%20part%20set%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=4f2825a)
|
