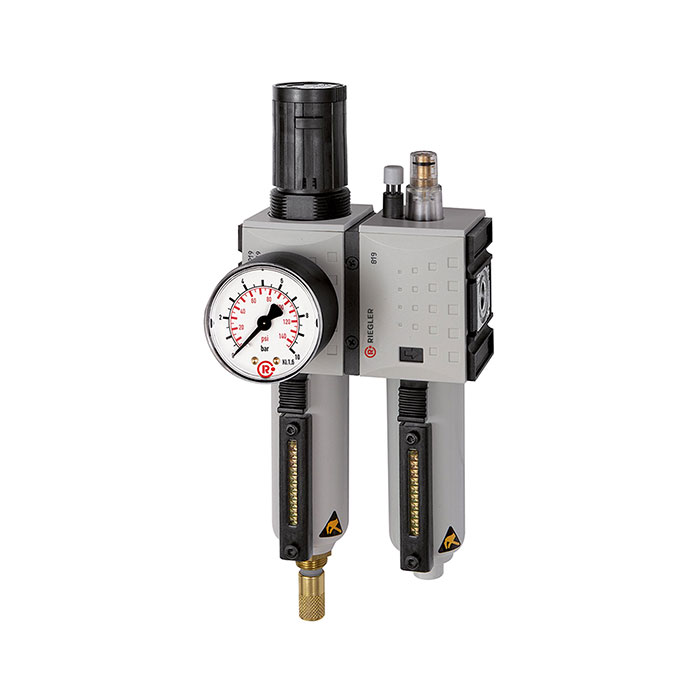

RIEGLER Service unit 2-part »FUTURA«, Metal, Size 2, G 1/2, 0.2-4, Fully
Typennummer: FU 614-M-4
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Wartungseinheit 2-tlg. »FUTURA« mit Metallbehälter, Sichtrohr und Mano., BG 2, G 1/2, Regelbereich 0,2-4 bar, Kondensatablass: VA
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Container | Metal container with sight tube |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Dropper attachment | PC |
| Thread | G 1/2 |
| Flow rate | 3500 l/min |
| Control range min. | 0.2 bar |
| Control range max. | 4 bar |
| Condensate drain | fully automatic |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 6 bar |
| BG | 2 |
| A | 126 mm |
| B | 277 mm |
| C | 110 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6b, 6b-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=a0ae0bb)
|
Type number: 655.6.900 |
36.35 € | |
![[100045] Riegler Blocking set incl. 2 screws and O-ring, for »FUTURA«, Size 2](/web/image/product.template/118207/image_128/%5B100045%5D%20Riegler%20Blocking%20set%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=5e36df8)
|
Type number: KP 200 |
2.58 € | |
![[100214] Riegler Drip cap polycarbonate, »FUTURA« and »FUTURA-mini«, Size 0 - 4](/web/image/product.template/123261/image_128/%5B100214%5D%20Riegler%20Drip%20cap%20polycarbonate%2C%20%C2%BBFUTURA%C2%AB%20and%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200%20-%204?unique=d3122f2)
|
Type number: 901.7.990 |
6.71 € | |
![[100216] Riegler Metal container incl. viewing tube, mist oiler »FUTURA«, Size 2](/web/image/product.template/123263/image_128/%5B100216%5D%20Riegler%20Metal%20container%20incl.%20viewing%20tube%2C%20mist%20oiler%20%C2%BBFUTURA%C2%AB%2C%20Size%202?unique=a98715d)
|
Type number: ML 12 |
38.28 € | |
![[101676] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 6 bar/87 psi](/web/image/product.template/169648/image_128/%5B101676%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%206%20bar-87%20psi?unique=d9c1eca)
|
Type number: 205-KD |
6.25 € | |
![[100047] Riegler Wear part set for »FUTURA«, size 2, G 3/8 and G 1/2](/web/image/product.template/118209/image_128/%5B100047%5D%20Riegler%20Wear%20part%20set%20for%20%C2%BBFUTURA%C2%AB%2C%20size%202%2C%20G%203-8%20and%20G%201-2?unique=1b0272c)
|
Type number: 22.7180.4 |
12.57 € | |
