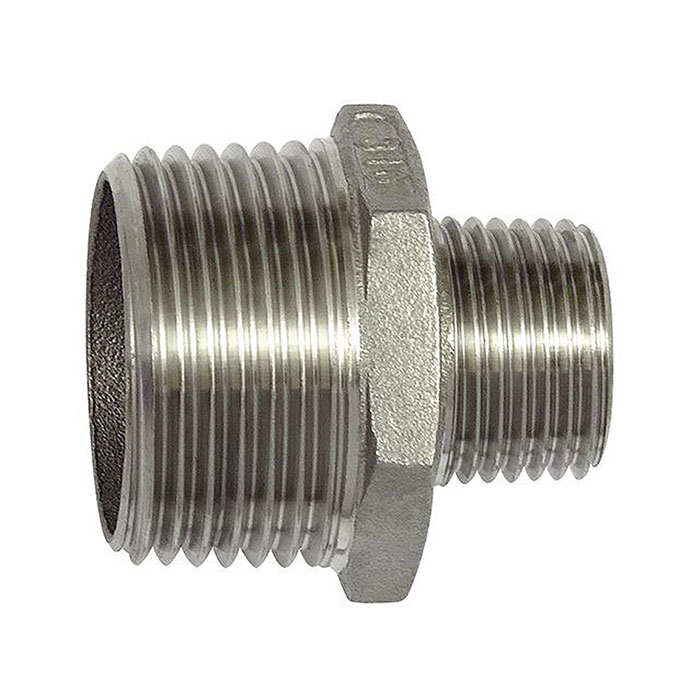

RIEGLER Double threaded nipple, reducing, Octagonal, R 2 1/2, R 2, AF 78
Type number: 277.27-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Double threaded nipple for pipeline construction, max. 20 bar - Type 277.27-ES
The RIEGLER double threaded nipple, red, octagonal, R 2 1/2, R 2, ES 1.4408 connects two female threaded connections of the same or different sizes. Designed for a maximum operating pressure of 20 bar. Universal adapter for various thread sizes.
Field of application
Typical areas of application: Pipeline construction, compressed air distribution and sanitary installations.
| Working pressure max. | 20 bar |
| SW | 78 mm |
| Thread standard | ISO 7-1 |
| Cross-section | Octagon |
| L1 | 59 mm |
| L2 | 27 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| External thread 1 | R 2 1/2 |
| External thread 2 | R 2 |
| L3 | 25 mm |
| Class name | STAINLESS STEEL |
