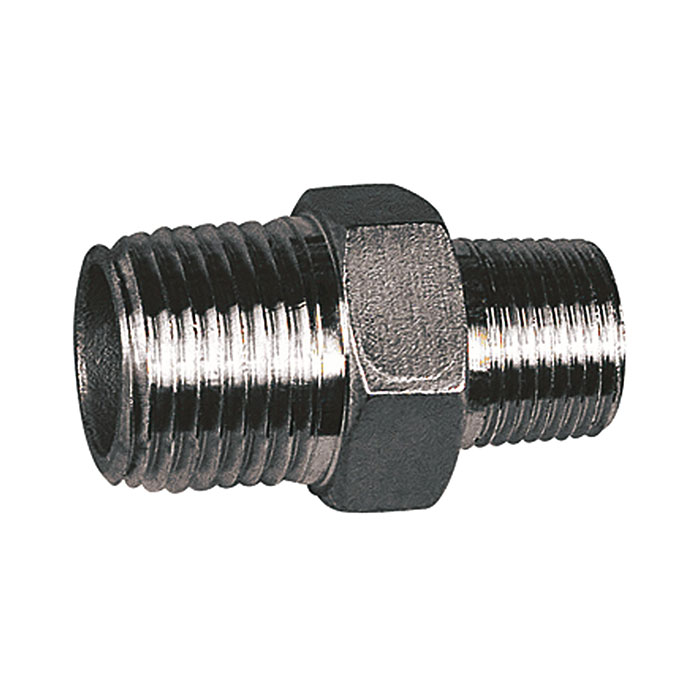

RIEGLER Double threaded nipple red. Hexagonal, G 2 o., G 1 o., AF 62
Type number: 268.14-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Double threaded nipple for pipeline construction, max. 20 bar - Type 268.14-ES
The RIEGLER double threaded nipple, red, hexagonal, G 2 a., G 1 a., ES 1.4408 connects two female threaded connections of the same or different sizes. Designed for a maximum operating pressure of 20 bar. Universal adapter for various thread sizes.
Field of application
Typical areas of application: Pipeline construction, compressed air distribution and sanitary installations.
| Working pressure max. | 20 bar |
| SW | 62 mm |
| Thread standard | DIN EN ISO 228-1 |
| L1 | 58 mm |
| L2 | 25.6 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| External thread 1 | G 2 |
| External thread 2 | G 1 |
| L3 | 20 mm |
| Class name | STAINLESS STEEL |
