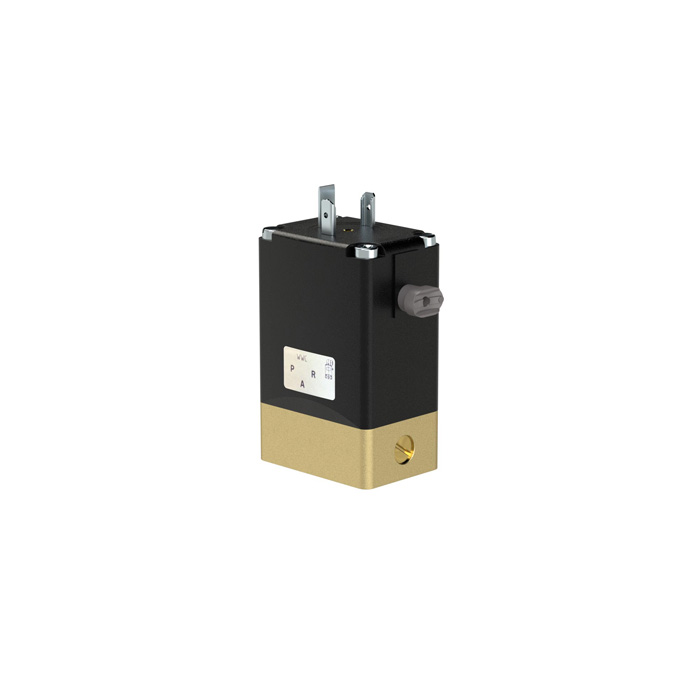

RIEGLER 3/2-way pilot valve, MS, FB-2.0, 24VDC, media-controlled MV, "F.BV."
Type number: MPV.W.MS.24D.F
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
3/2-way pilot valve, MS, flange-mounted, 24VDC, FPM, f. media-controlled MV, 124747, 124755, 124892, 124850, 125768, 125775, 125783
| Housing | Brass |
| Sealing material | FPM |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 12 bar |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 80 °C |
| Ambient temperature min. | 0 °C |
| Ambient temperature max. | 55 °C |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Stand Material Compliance | 44797 |
| Electrical connection | Plug lugs according to DIN EN 175301-803 |
| Function | any flow direction (BEL) |
| Tension | 24VDC |
