RIEGLER 3/2-way pilot valve, MS, FB-2.0, 110V, media-controlled MV, "F.BV."
Type number: MPV.W.MS.110.F
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/2-way pilot valve made of brass, for industrial systems, max. 12 bar - Type MPV.W.MS.110.F
The RIEGLER 3/2-way pilot valve, MS, FB-2.0, 110V, mediengetr. MV, "F.BV." switches compressed air and media flows electrically controlled via a solenoid coil. The housing is made of brass with FPM seals. The operating pressure range is 0 bar to 12 bar. The permissible medium temperature is between 0 °C and 80 °C. Operating voltage 110V. Fast, precise switching for automated processes.
Field of application
Typical areas of application: Automation, mechanical engineering and process technology.
| Housing | Brass |
| Sealing material | FPM |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 12 bar |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 80 °C |
| Ambient temperature min. | 0 °C |
| Ambient temperature max. | 55 °C |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Stand Material Compliance | 44797 |
| Electrical connection | Plug lugs according to DIN EN 175301-803 |
| Function | any flow direction (BEL) |
| Tension | 110V |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[129198] RIEGLER 3/2-way pilot valve, MS, FB-2.0, 110V, media-controlled MV, "N.BV."](/web/image/product.template/281174/image_128/%5B129198%5D%20RIEGLER%203-2-way%20pilot%20valve%2C%20MS%2C%20FB-2.0%2C%20110V%2C%20media-controlled%20MV%2C%20%22N.BV.%22?unique=e965aa2)
|
Type number: MPV.W.MS.110.N |
167.79 € | |

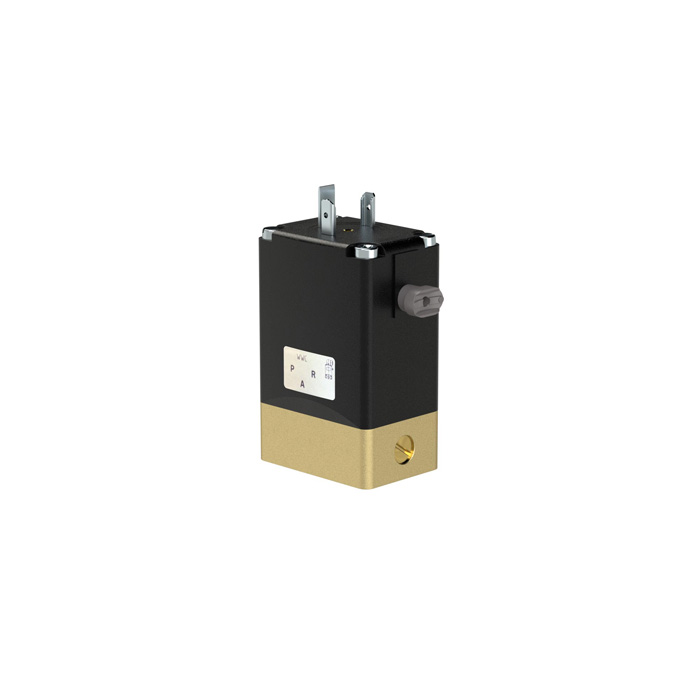

![[129199] RIEGLER 3/2-way pilot valve, MS, FB-2.0, 230V, media-controlled MV, "F.BV."](/web/image/product.template/281175/image_128/%5B129199%5D%20RIEGLER%203-2-way%20pilot%20valve%2C%20MS%2C%20FB-2.0%2C%20230V%2C%20media-controlled%20MV%2C%20%22F.BV.%22?unique=ea06304)
|
