RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1/2
Type number: 3390.03
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Stainless steel ball valve, 3-part, overall length to DIN 3202-M3, G 1/2, DN 15, operating temp. -20 °C to 180 °C, PN max. 63 bar
| Housing | Stainless steel 1.4408 |
| Ball | Stainless steel 1.4401 |
| Ball seal | PTFE (15% glass fiber reinforced) |
| Spindle seal | PTFE |
| Hand lever | Stainless steel 1.4301, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 180 °C |
| Thread | G 1/2 |
| DN | 15 |
| PN | 63 bar |
| Thread standard | G-thread to DIN EN ISO 228-1, flange plate ISO 5211 |
| A | 125 mm |
| B | 77.5 mm |
| L | 75 mm |
| ISO 5211 | F 03 / F 04 |
| Class name | STAINLESS STEEL |
| Bore diameter padlock | approx. 7.7 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[135914] RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1](/web/image/product.template/206267/image_128/%5B135914%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20length%20acc.%20to%20DIN%203202-M3%2C%20G%201?unique=3fc00ee)
|
Type number: 3390.05 |
65.78 € | |
![[135916] RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1 1/2](/web/image/product.template/206269/image_128/%5B135916%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20length%20acc.%20to%20DIN%203202-M3%2C%20G%201%201-2?unique=3144ef7)
|
Type number: 3390.07 |
113.31 € | |
![[135915] RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1 1/4](/web/image/product.template/206268/image_128/%5B135915%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20length%20acc.%20to%20DIN%203202-M3%2C%20G%201%201-4?unique=429215e)
|
Type number: 3390.06 |
86.81 € | |
![[135910] RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 1/4](/web/image/product.template/206263/image_128/%5B135910%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20length%20acc.%20to%20DIN%203202-M3%2C%20G%201-4?unique=16686fc)
|
Type number: 3390.01 |
30.80 € | |

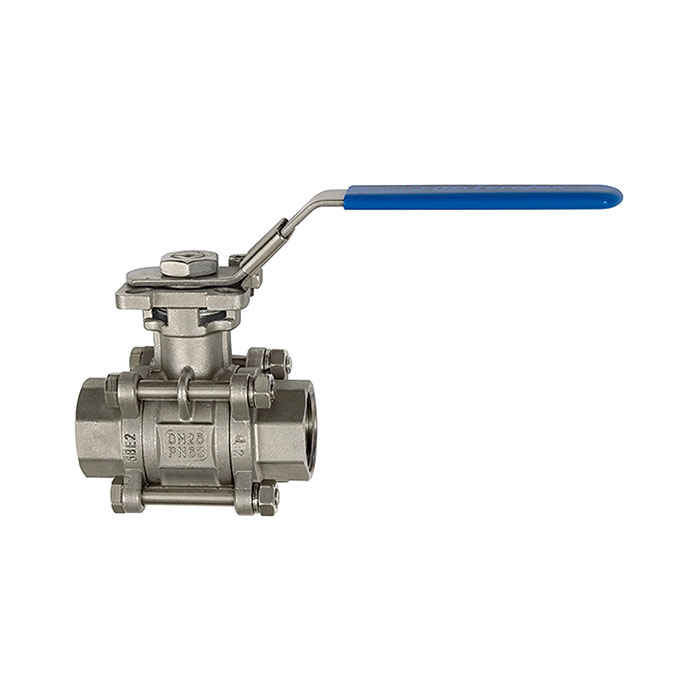

![[135917] RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 2](/web/image/product.template/206270/image_128/%5B135917%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20length%20acc.%20to%20DIN%203202-M3%2C%20G%202?unique=f44bd42)
|
Type number: 3390.08 |
162.76 € | |
![[135918] RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 2 1/2](/web/image/product.template/206271/image_128/%5B135918%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20length%20acc.%20to%20DIN%203202-M3%2C%20G%202%201-2?unique=48aa4ff)
|
Type number: 3390.09 |
378.56 € | |
![[135919] RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 3](/web/image/product.template/206272/image_128/%5B135919%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20length%20acc.%20to%20DIN%203202-M3%2C%20G%203?unique=150e46d)
|
Type number: 3390.10 |
513.79 € | |
![[135913] RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 3/4](/web/image/product.template/206266/image_128/%5B135913%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20length%20acc.%20to%20DIN%203202-M3%2C%20G%203-4?unique=c1b47b6)
|
Type number: 3390.04 |
48.21 € | |
![[135911] RIEGLER Stainless steel ball valve, length acc. to DIN 3202-M3, G 3/8](/web/image/product.template/206264/image_128/%5B135911%5D%20RIEGLER%20Stainless%20steel%20ball%20valve%2C%20length%20acc.%20to%20DIN%203202-M3%2C%20G%203-8?unique=b12f44c)
|
Type number: 3390.02 |
30.80 € | |
