RIEGLER Stainless steel pressure regulator, 1.4404, non-return, G 1/2, 1.0 - 17 bar
Type number: DRES.G12NR.1-17B.T
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Stainless steel pressure regulator made of stainless steel 1.4404 (AISI 316L), for compressed air treatment - Type DRES.G12NR.1-17B.T
The RIEGLER stainless steel pressure regulator, 1.4404, non-return, G 1/2, 1.0 - 17 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of stainless steel 1.4404 (AISI 316L) with PU/HNBR seals. The control range extends from 1 bar to 17 bar with a maximum inlet pressure of 60 bar. The permissible medium temperature is between -40 °C and 80 °C. G 1/2 connection thread - suitable for common industry standards. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 60 bar |
| Housing | Stainless steel 1.4404 (AISI 316L) |
| Sealing material | PU/HNBR |
| Membrane | HNBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p </sub>= 1 bar |
| Medium temperature min. | -40 °C |
| Medium temperature max. | 80 °C |
| Ambient temperature min. | -40 °C |
| Ambient temperature max. | 80 °C |
| Thread | G 1/2 |
| Flow 1 | 5530 l/min |
| Control range min. | 1 bar |
| Control range max. | 17 bar |
| A | 179 mm |
| B | 68 mm |
| C | 47 mm |
| G | 22 mm |
| H | 32 mm |
| E | 68 mm |
| F | 47 mm |
| I | 36 mm |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

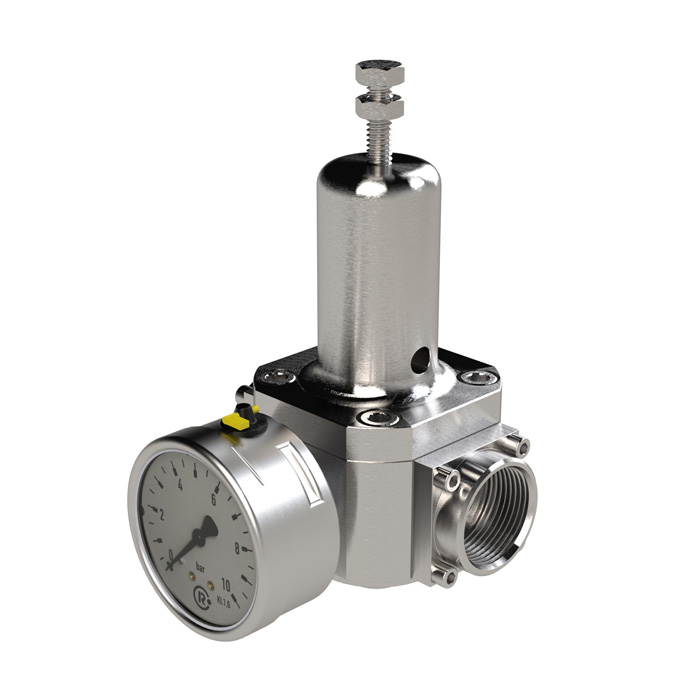

![[136430] RIEGLER Stainless steel pressure regulator, 1.4404, non-return, G 1, 0.5 - 8 bar](/web/image/product.template/278510/image_128/%5B136430%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20non-return%2C%20G%201%2C%200.5%20-%208%20bar?unique=20428a6)
|
Type number: DRES.G1NR.05-8B.T |
820.33 € | |
![[136431] RIEGLER Stainless steel pressure regulator, 1.4404, non-return, G 1, 1.0 - 17 bar](/web/image/product.template/278511/image_128/%5B136431%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20non-return%2C%20G%201%2C%201.0%20-%2017%20bar?unique=6768493)
|
Type number: DRES.G1NR.1-17B.T |
827.11 € | |
![[136426] RIEGLER Stainless steel pressure regulator, 1.4404, non-return, G 1/2, 0.5 - 8 bar](/web/image/product.template/278506/image_128/%5B136426%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20non-return%2C%20G%201-2%2C%200.5%20-%208%20bar?unique=209c29a)
|
Type number: DRES.G12NR.05-8B.T |
407.42 € | |
![[136422] RIEGLER Stainless steel pressure regulator, 1.4404, non-return, G 1/4, 0.5 - 8 bar](/web/image/product.template/278502/image_128/%5B136422%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20non-return%2C%20G%201-4%2C%200.5%20-%208%20bar?unique=c424b38)
|
Type number: DRES.G14NR.05-8B.T |
346.62 € | |
![[136423] RIEGLER Stainless steel pressure regulator, 1.4404, non-return, G 1/4, 1.0 - 17 bar](/web/image/product.template/278503/image_128/%5B136423%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20non-return%2C%20G%201-4%2C%201.0%20-%2017%20bar?unique=e383701)
|
Type number: DRES.G14NR.1-17B.T |
353.42 € | |
![[136428] RIEGLER Stainless steel pressure regulator, 1.4404, non-return, G 3/4, 0.5 - 8 bar](/web/image/product.template/278508/image_128/%5B136428%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20non-return%2C%20G%203-4%2C%200.5%20-%208%20bar?unique=da78dcb)
|
Type number: DRES.G34NR.05-8B.T |
442.88 € | |
![[136429] RIEGLER Stainless steel pressure regulator, 1.4404, non-return, G 3/4, 1.0 - 17 bar](/web/image/product.template/278509/image_128/%5B136429%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20non-return%2C%20G%203-4%2C%201.0%20-%2017%20bar?unique=6df6e94)
|
Type number: DRES.G34NR.1-17B.T |
449.68 € | |

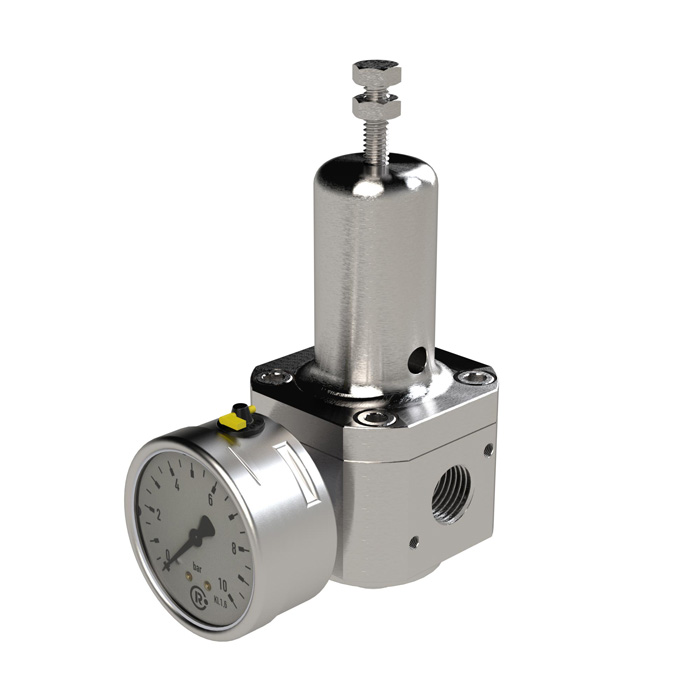

![[136424] RIEGLER Stainless steel pressure regulator, 1.4404, non-return, G 3/8, 0.5 - 8 bar](/web/image/product.template/278504/image_128/%5B136424%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20non-return%2C%20G%203-8%2C%200.5%20-%208%20bar?unique=887e592)
|
Type number: DRES.G38NR.05-8B.T |
366.89 € | |

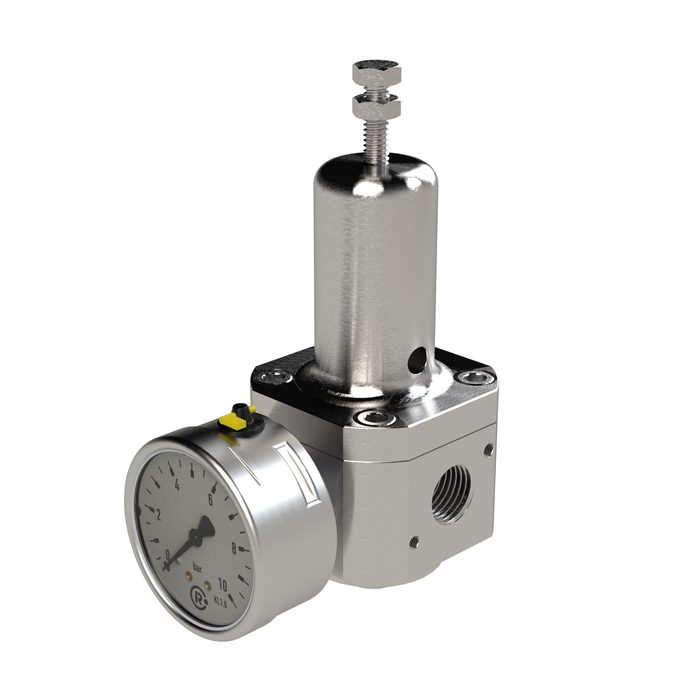

![[136425] RIEGLER Stainless steel pressure regulator, 1.4404, non-return, G 3/8, 1.0 - 17 bar](/web/image/product.template/278505/image_128/%5B136425%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20non-return%2C%20G%203-8%2C%201.0%20-%2017%20bar?unique=cc8f2ec)
|
Type number: DRES.G38NR.1-17B.T |
373.67 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[135520] RIEGLER Mounting bracket, for pressure regulators, filter regulators and filters, G 1/2 and G 3/4](/web/image/product.template/278496/image_128/%5B135520%5D%20RIEGLER%20Mounting%20bracket%2C%20for%20pressure%20regulators%2C%20filter%20regulators%20and%20filters%2C%20G%201-2%20and%20G%203-4?unique=5652f06)
|
Type number: HWDRFRFES.G12.G34.T |
20.27 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

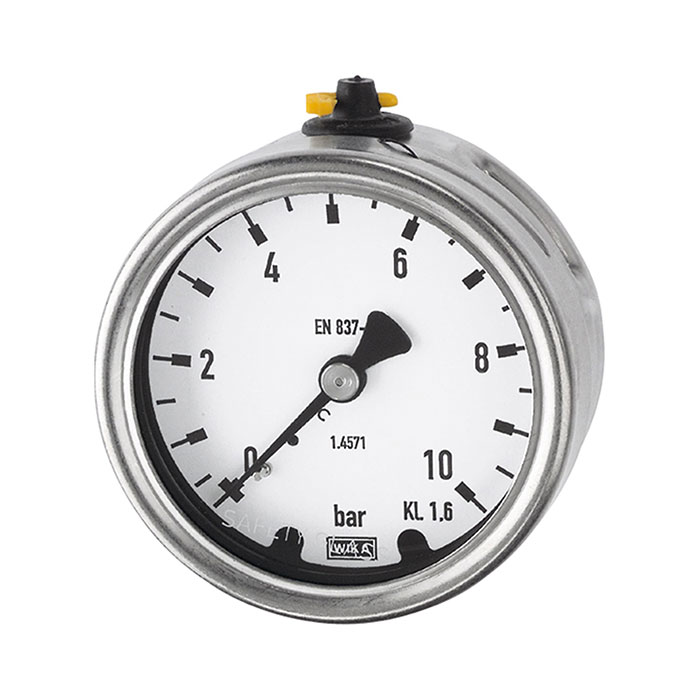

![[102511] RIEGLER Pressure gauge, CrNi steel, rear centric, G 1/4, 0 - 25 bar, Ø 63](/web/image/product.template/170483/image_128/%5B102511%5D%20RIEGLER%20Pressure%20gauge%2C%20CrNi%20steel%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2025%20bar%2C%20%C3%98%2063?unique=36d417e)
|
Type number: 4086 |
112.13 € | |

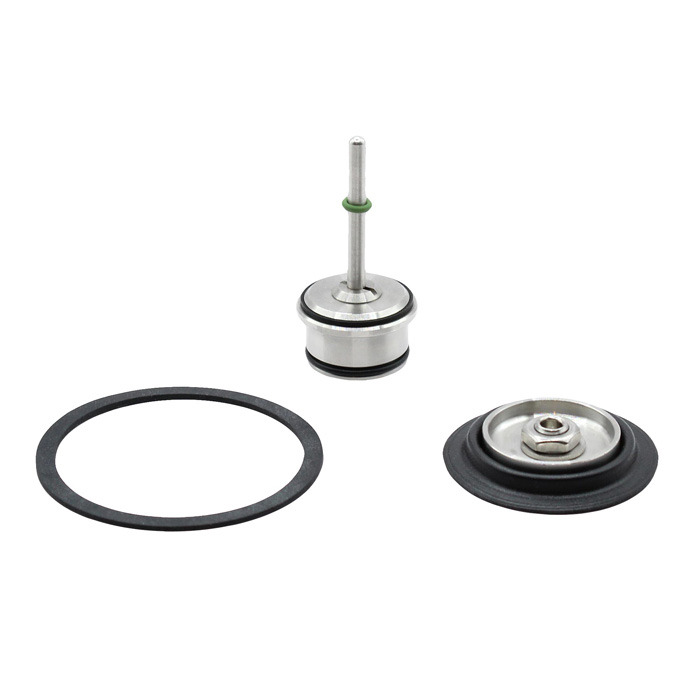

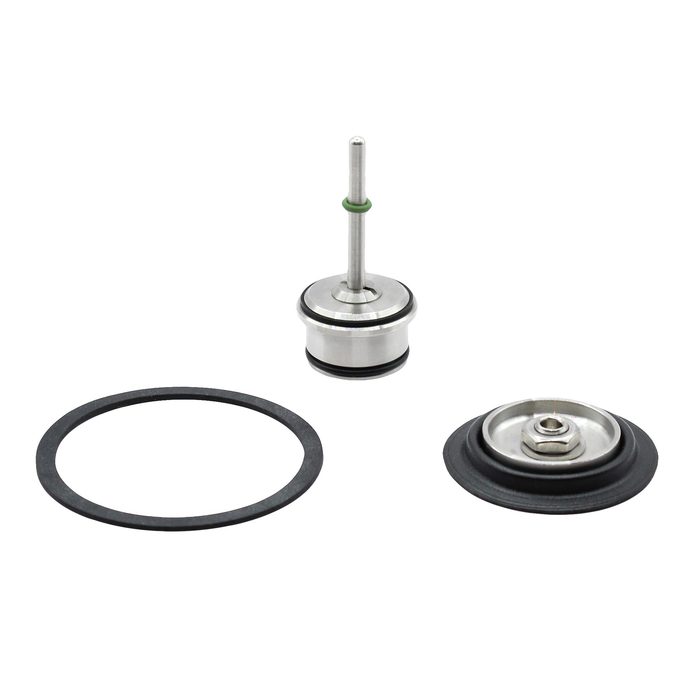

![[135030] RIEGLER Set of wearing parts, for pressure and filter regulators, G 1/2 and G 3/4](/web/image/product.template/278488/image_128/%5B135030%5D%20RIEGLER%20Set%20of%20wearing%20parts%2C%20for%20pressure%20and%20filter%20regulators%2C%20G%201-2%20and%20G%203-4?unique=a333a77)
|
