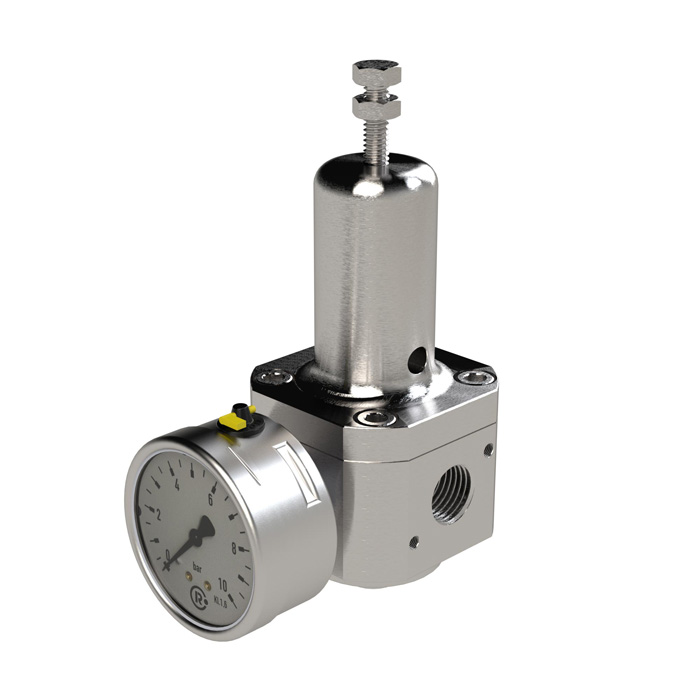

RIEGLER Stainless steel pressure regulator, 1.4404, non-return, G 3/4, 1.0 - 17 bar
Type number: DRES.G34NR.1-17B.T
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Stainless steel pressure regulator, 1.4404, without secondary outlet (non-reversible) incl. mano., G 3/4, regulat. 1.0 - 17 bar, PE max. 60 bar
| Inlet pressure max. | 60 bar |
| Housing | Stainless steel 1.4404 (AISI 316L) |
| Sealing material | PU/HNBR |
| Membrane | HNBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p </sub>= 1 bar |
| Medium temperature min. | -40 °C |
| Medium temperature max. | 80 °C |
| Ambient temperature min. | -40 °C |
| Ambient temperature max. | 80 °C |
| Thread | G 3/4 |
| Flow_1 | 5530 l/min |
| Control range min. | 1 bar |
| Control range max. | 17 bar |
| A | 179 mm |
| B | 68 mm |
| C | 47 mm |
| G | 22 mm |
| H | 32 mm |
| E | 68 mm |
| F | 47 mm |
| I | 36 mm |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[136430] RIEGLER Stainless steel pressure regulator, 1.4404, non-return, G 1, 0.5 - 8 bar](/web/image/product.template/278510/image_128/%5B136430%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20non-return%2C%20G%201%2C%200.5%20-%208%20bar?unique=cc6b547)
|
Type number: DRES.G1NR.05-8B.T |
824.42 € | |
![[136431] RIEGLER Stainless steel pressure regulator, 1.4404, non-return, G 1, 1.0 - 17 bar](/web/image/product.template/278511/image_128/%5B136431%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20non-return%2C%20G%201%2C%201.0%20-%2017%20bar?unique=3ab40e5)
|
Type number: DRES.G1NR.1-17B.T |
831.25 € | |
![[136426] RIEGLER Stainless steel pressure regulator, 1.4404, non-return, G 1/2, 0.5 - 8 bar](/web/image/product.template/278506/image_128/%5B136426%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20non-return%2C%20G%201-2%2C%200.5%20-%208%20bar?unique=87dfc6c)
|
Type number: DRES.G12NR.05-8B.T |
409.47 € | |
![[136427] RIEGLER Stainless steel pressure regulator, 1.4404, non-return, G 1/2, 1.0 - 17 bar](/web/image/product.template/278507/image_128/%5B136427%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20non-return%2C%20G%201-2%2C%201.0%20-%2017%20bar?unique=043ef08)
|
Type number: DRES.G12NR.1-17B.T |
416.29 € | |
![[136422] RIEGLER Stainless steel pressure regulator, 1.4404, non-return, G 1/4, 0.5 - 8 bar](/web/image/product.template/278502/image_128/%5B136422%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20non-return%2C%20G%201-4%2C%200.5%20-%208%20bar?unique=fd90631)
|
Type number: DRES.G14NR.05-8B.T |
348.36 € | |
![[136423] RIEGLER Stainless steel pressure regulator, 1.4404, non-return, G 1/4, 1.0 - 17 bar](/web/image/product.template/278503/image_128/%5B136423%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20non-return%2C%20G%201-4%2C%201.0%20-%2017%20bar?unique=b96bd43)
|
Type number: DRES.G14NR.1-17B.T |
355.19 € | |
![[136428] RIEGLER Stainless steel pressure regulator, 1.4404, non-return, G 3/4, 0.5 - 8 bar](/web/image/product.template/278508/image_128/%5B136428%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20non-return%2C%20G%203-4%2C%200.5%20-%208%20bar?unique=19e15c7)
|
Type number: DRES.G34NR.05-8B.T |
445.10 € | |
![[136424] RIEGLER Stainless steel pressure regulator, 1.4404, non-return, G 3/8, 0.5 - 8 bar](/web/image/product.template/278504/image_128/%5B136424%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20non-return%2C%20G%203-8%2C%200.5%20-%208%20bar?unique=ba8fc85)
|
Type number: DRES.G38NR.05-8B.T |
368.72 € | |
![[136425] RIEGLER Stainless steel pressure regulator, 1.4404, non-return, G 3/8, 1.0 - 17 bar](/web/image/product.template/278505/image_128/%5B136425%5D%20RIEGLER%20Stainless%20steel%20pressure%20regulator%2C%201.4404%2C%20non-return%2C%20G%203-8%2C%201.0%20-%2017%20bar?unique=aeffb35)
|
Type number: DRES.G38NR.1-17B.T |
375.55 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[135520] RIEGLER Mounting bracket, for pressure regulators, filter regulators and filters, G 1/2 and G 3/4](/web/image/product.template/278496/image_128/%5B135520%5D%20RIEGLER%20Mounting%20bracket%2C%20for%20pressure%20regulators%2C%20filter%20regulators%20and%20filters%2C%20G%201-2%20and%20G%203-4?unique=1260bfe)
|
Type number: HWDRFRFES.G12.G34.T |
20.36 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[102511] RIEGLER Pressure gauge, CrNi steel, rear centric, G 1/4, 0 - 25 bar, Ø 63](/web/image/product.template/170483/image_128/%5B102511%5D%20RIEGLER%20Pressure%20gauge%2C%20CrNi%20steel%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2025%20bar%2C%20%C3%98%2063?unique=33f804e)
|
Type number: 4086 |
113.69 € | |

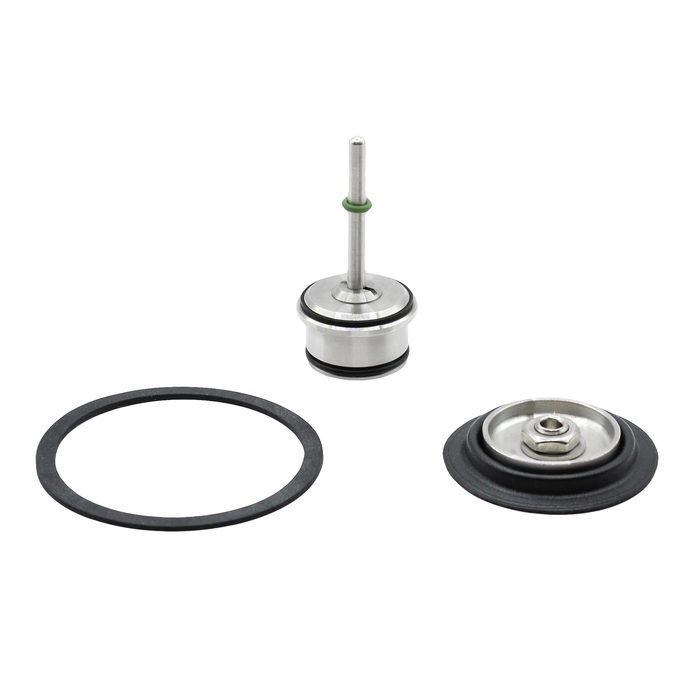

![[135030] RIEGLER Set of wearing parts, for pressure and filter regulators, G 1/2 and G 3/4](/web/image/product.template/278488/image_128/%5B135030%5D%20RIEGLER%20Set%20of%20wearing%20parts%2C%20for%20pressure%20and%20filter%20regulators%2C%20G%201-2%20and%20G%203-4?unique=d811de1)
|
Type number: VTSDRFRES.G12.G34NR.T |
63.65 € | |
