RIEGLER Stainless steel casting filter, 1.4401, 25 µm, Size 4, G 1 1/2
Type number: 580FC4-112
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Cast stainless steel filter made of cast stainless steel 1.4401 (AISI 316), for compressed air treatment - type 580FC4-112
The RIEGLER stainless steel cast filter, 1.4401, 25 µm, BG 4, G 1 1/2 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of cast stainless steel 1.4401 (AISI 316) with NBR seals. The maximum inlet pressure is 30 bar. Connection thread G 1 1/2 - suitable for common industry standards. The flow rate is 9910 l/min (at P1 = 6 bar and pressure drop Δp ≤ 1 bar). Filter fineness 25 µm. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 30 bar |
| Housing | Cast stainless steel 1.4401 (AISI 316) |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> ‰¤ 1 bar |
| Filter fineness | 25 µm |
| Medium temperature max. | 80 °C |
| Ambient temperature max. | 80 °C |
| Thread | G 1 1/2 |
| Flow rate | 9910 l/min |
| Condensate drain | Screw plug |
| BG | 4 |
| A | 120 mm |
| B | 198 mm |
| C | 165 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

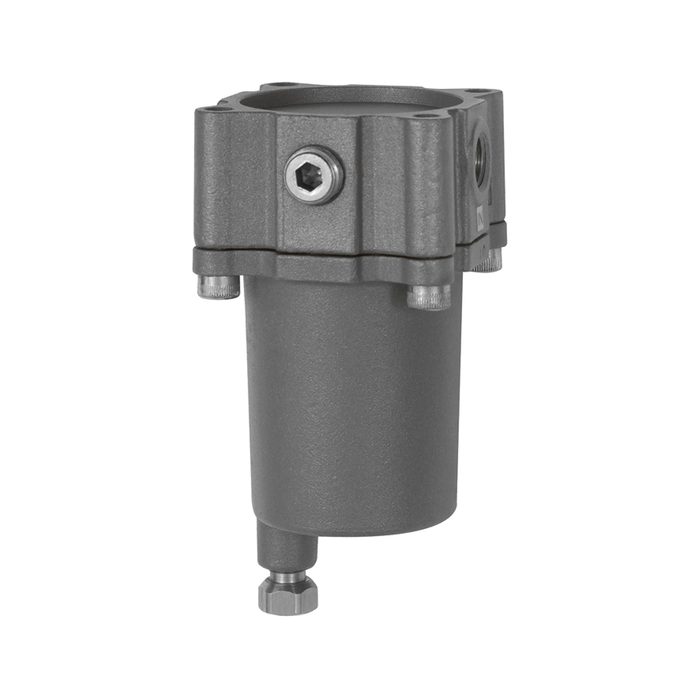

![[137347] RIEGLER Stainless steel casting filter, 1.4401, 25 µm, Size 1, G 1/4](/web/image/product.template/207832/image_128/%5B137347%5D%20RIEGLER%20Stainless%20steel%20casting%20filter%2C%201.4401%2C%2025%20%C2%B5m%2C%20Size%201%2C%20G%201-4?unique=70390e4)
|
Type number: 580FC1-14 |
201.07 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[137120] RIEGLER Replacement filter element for filter and filter regulator](/web/image/product.template/207797/image_128/%5B137120%5D%20RIEGLER%20Replacement%20filter%20element%20for%20filter%20and%20filter%20regulator?unique=f910370)
|
Type number: 580FM4-EF |
79.97 € | |

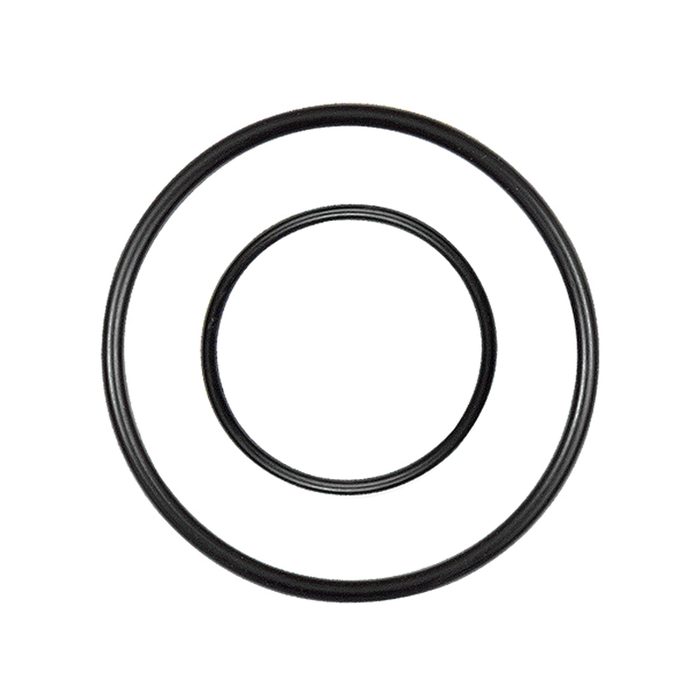

![[137322] RIEGLER Replacement seal for stainless steel filter and filter regulator](/web/image/product.template/207807/image_128/%5B137322%5D%20RIEGLER%20Replacement%20seal%20for%20stainless%20steel%20filter%20and%20filter%20regulator?unique=f910370)
|
Type number: 580FC4-ED |
6.51 € | |
![[137320] RIEGLER Stainless steel container for filter and filter regulator](/web/image/product.template/207805/image_128/%5B137320%5D%20RIEGLER%20Stainless%20steel%20container%20for%20filter%20and%20filter%20regulator?unique=f910370)
|
Type number: 580FC4-BMA |
139.62 € | |
