RIEGLER Swivel safety coupling I.D. 6, ISO 6150 C, Steel, Sleeve I.D. 13
Type number: 423.25-DREH
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Swivel safety coupling made of steel, QPQ treated, for compressed air supply, LW 13 - Type 423.25-DREH
The RIEGLER rotary safety coupling NW 6, ISO 6150 C, steel, nozzle LW 13 separates the compressed air line in two stages in a controlled manner and protects the operator. The housing is made of steel, QPQ treated with NBR seals. The temperature range is between -20 °C and 100 °C. Connection thread LW 13 - suitable for common industry standards. Suitable for compressed air, gases. The flow rate is 630 l/min (air) (at 6 bar and Δp = 0.5 bar). Maximum safety thanks to controlled pressure relief.
Field of application
Typical areas of application: Compressed air applications with personal protection requirements.
| Temperature range min. | -20 °C |
| Temperature range max. | 100 °C |
| Medium | Compressed air, gases |
| Housing | Steel, QPQ treated |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Flow rate | 630 l/min (air) |
| Spring | Stainless steel |
| Sleeve | Polyamide, red |
| Threaded piece | Galvanized steel |
| Valve | Polyphenylene sulfide (PPS) |
| Operating pressure | max. 25 bar / max. 16 bar when engaging/disengaging |
| SW | 22 mm |
| NW | 6 |
| Length | 70 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | LW 13 |
| RoHS material information | RoHS compliant |
| Exception | 6a |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | ‰¥ 0.3% w/w and < 1.0% w/w |
| Connector profile | according to ISO 6150 C |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[141745] RIEGLER Swivel safety coupling I.D. 6, ISO 6150 C, Steel, Sleeve I.D. 10](/web/image/product.template/208360/image_128/%5B141745%5D%20RIEGLER%20Swivel%20safety%20coupling%20I.D.%206%2C%20ISO%206150%20C%2C%20Steel%2C%20Sleeve%20I.D.%2010?unique=9f259bc)
|
Type number: 423.24-DREH |
20.67 € | |
![[141743] RIEGLER Swivel safety coupling I.D. 6, ISO 6150 C, Steel, Sleeve I.D. 6](/web/image/product.template/208358/image_128/%5B141743%5D%20RIEGLER%20Swivel%20safety%20coupling%20I.D.%206%2C%20ISO%206150%20C%2C%20Steel%2C%20Sleeve%20I.D.%206?unique=3344996)
|
Type number: 423.21-DREH |
20.67 € | |

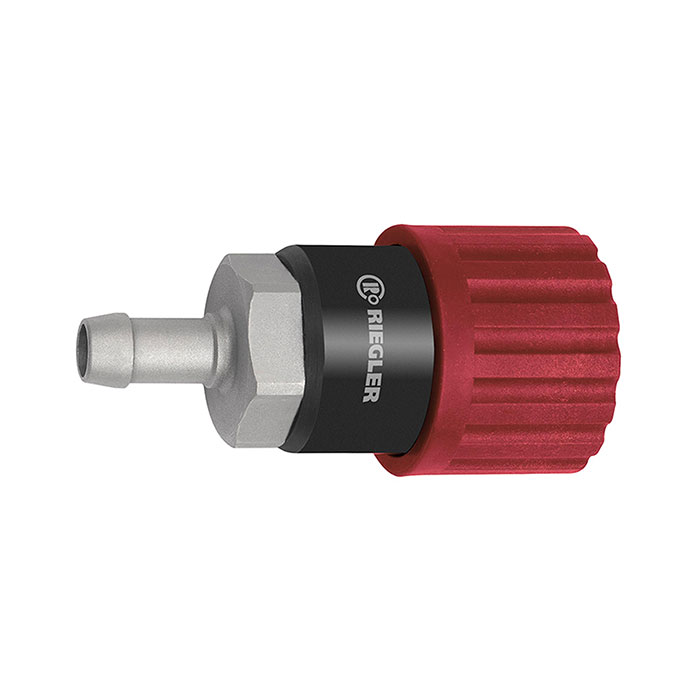

![[141744] RIEGLER Swivel safety coupling I.D. 6, ISO 6150 C, Steel, Sleeve I.D. 8](/web/image/product.template/208359/image_128/%5B141744%5D%20RIEGLER%20Swivel%20safety%20coupling%20I.D.%206%2C%20ISO%206150%20C%2C%20Steel%2C%20Sleeve%20I.D.%208?unique=f6b6047)
|
Type number: 423.22-DREH |
20.67 € | |
