RIEGLER Swivel safety coupling I.D. 8, ISO 6150 C, Steel, G 1/2 IT
Type number: 425.03-DREH
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Swivel safety coupling made of steel, QPQ treated, for compressed air supply, G 1/2 female thread - Type 425.03-DREH
The RIEGLER rotary safety coupling NW 8, ISO 6150 C, steel, G 1/2 female thread separates the compressed air line in two stages in a controlled manner and protects the operator. The housing is made of steel, QPQ treated with NBR seals. The temperature range is between -20 °C and 100 °C. Connection thread G 1/2 IG - suitable for common industry standards. Suitable for compressed air, gases. The flow rate is 1200 l/min (air) (at 6 bar and Δp = 0.5 bar). Maximum safety thanks to controlled pressure relief.
Field of application
Typical areas of application: Compressed air applications with personal protection requirements.
| Temperature range min. | -20 °C |
| Temperature range max. | 100 °C |
| Medium | Compressed air, gases |
| Housing | Steel, QPQ treated |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Flow rate | 1200 l/min (air) |
| Spring | Stainless steel |
| Sleeve | Polyamide, red |
| Threaded piece | Galvanized steel |
| Valve | Brass bright |
| Operating pressure | max. 25 bar / max. 16 bar when engaging/disengaging |
| SW | 27 mm |
| NW | 8 |
| Length | 81 mm |
| Connection | G 1/2 IG |
| Connector profile | according to ISO 6150 C |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

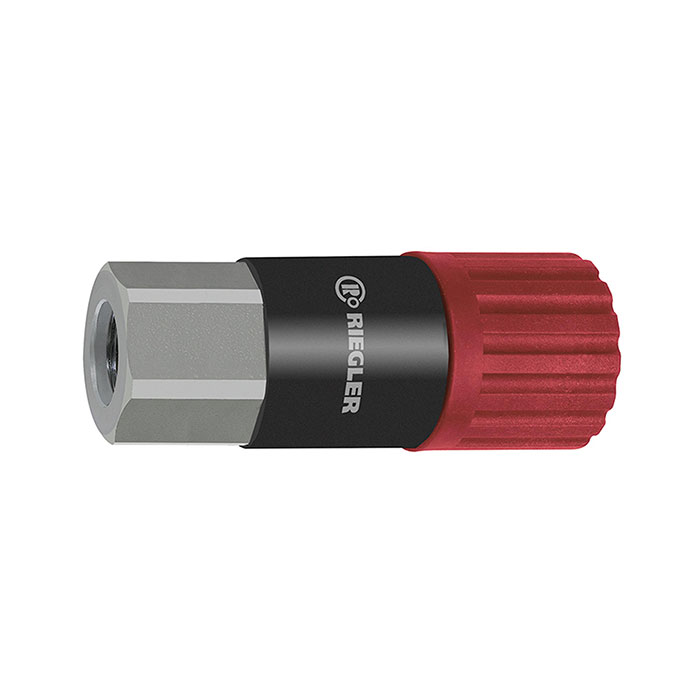

![[141756] RIEGLER Swivel safety coupling I.D. 8, ISO 6150 C, Steel, G 1/4 IT](/web/image/product.template/208362/image_128/%5B141756%5D%20RIEGLER%20Swivel%20safety%20coupling%20I.D.%208%2C%20ISO%206150%20C%2C%20Steel%2C%20G%201-4%20IT?unique=839e1c5)
|
