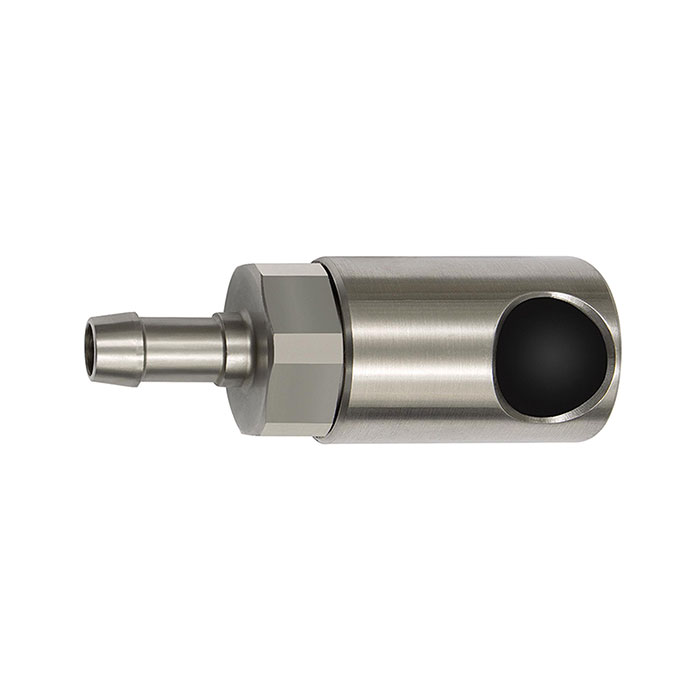

RIEGLER Pushbutton safety coupling I.D. 11, ISO 6150 C, Sleeve I.D. 8
Type number: 411.22-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Stainless steel push-button safety coupling, for compressed air supply, max. 16 bar - Type 411.22-ES
The RIEGLER push-button safety coupling NW 11, ISO 6150 C, ES, grommet LW 8 disconnects the compressed air line in two stages in a controlled manner and protects the operator. The housing is made of stainless steel with FKM seals. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 200 °C. Connection thread LW 8 - suitable for common industry standards. The flow rate is 4500 l/min (air) (at 6 bar and Δp = 1 bar). Maximum safety thanks to controlled pressure relief.
Field of application
Typical areas of application: Compressed air applications with personal protection requirements.
| Temperature range min. | -20 °C |
| Temperature range max. | 200 °C |
| Housing | Stainless steel |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 1 bar |
| Max. operating pressure | 16 bar |
| Flow rate | 4500 l/min (air) |
| Spring | Stainless steel |
| Threaded piece | Galvanized steel |
| Valve | Brass |
| Button | Stainless steel |
| SW | 30 mm |
| NW | 11 |
| Length | 101 mm |
| Connection | LW 8 |
| Connector profile | according to ISO 6150 C |
| Class name | PLUS |
