RIEGLER Pushbutton safety coupling I.D. 11, ISO 6150 C, Sleeve I.D. 10
Type number: 411.24-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Stainless steel push-button safety coupling, for compressed air supply, max. 16 bar - Type 411.24-ES
The RIEGLER push-button safety coupling NW 11, ISO 6150 C, ES, grommet LW 10 disconnects the compressed air line in two stages in a controlled manner and protects the operator. The housing is made of stainless steel with FKM seals. Designed for a maximum operating pressure of 16 bar. The temperature range is between -20 °C and 200 °C. Connection thread LW 10 - suitable for common industry standards. The flow rate is 4500 l/min (air) (at 6 bar and Δp = 1 bar). Maximum safety thanks to controlled pressure relief.
Field of application
Typical areas of application: Compressed air applications with personal protection requirements.
| Temperature range min. | -20 °C |
| Temperature range max. | 200 °C |
| Housing | Stainless steel |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 1 bar |
| Max. operating pressure | 16 bar |
| Flow rate | 4500 l/min (air) |
| Spring | Stainless steel |
| Threaded piece | Galvanized steel |
| Valve | Brass |
| Button | Stainless steel |
| SW | 30 mm |
| NW | 11 |
| Length | 101 mm |
| Connection | LW 10 |
| Connector profile | according to ISO 6150 C |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[141985] RIEGLER Pushbutton safety coupling I.D. 11, ISO 6150 C, Sleeve I.D. 13](/web/image/product.template/211358/image_128/%5B141985%5D%20RIEGLER%20Pushbutton%20safety%20coupling%20I.D.%2011%2C%20ISO%206150%20C%2C%20Sleeve%20I.D.%2013?unique=7852804)
|
Type number: 411.25-ES |
55.83 € | |
![[141986] RIEGLER Pushbutton safety coupling I.D. 11, ISO 6150 C, Sleeve I.D. 16](/web/image/product.template/211359/image_128/%5B141986%5D%20RIEGLER%20Pushbutton%20safety%20coupling%20I.D.%2011%2C%20ISO%206150%20C%2C%20Sleeve%20I.D.%2016?unique=9c87fd2)
|
Type number: 411.26-ES |
60.01 € | |
![[141987] RIEGLER Pushbutton safety coupling I.D. 11, ISO 6150 C, Sleeve I.D. 19](/web/image/product.template/211360/image_128/%5B141987%5D%20RIEGLER%20Pushbutton%20safety%20coupling%20I.D.%2011%2C%20ISO%206150%20C%2C%20Sleeve%20I.D.%2019?unique=c1adca9)
|
Type number: 411.27-ES |
60.01 € | |

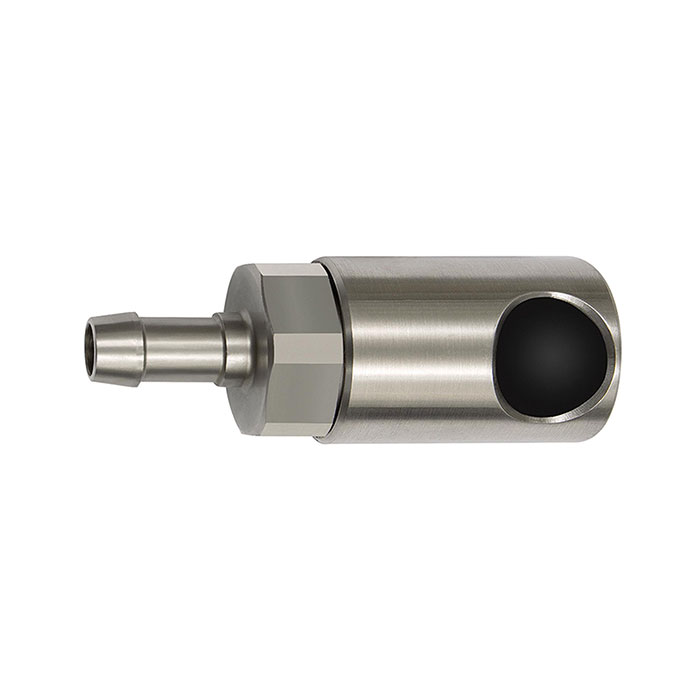

![[141983] RIEGLER Pushbutton safety coupling I.D. 11, ISO 6150 C, Sleeve I.D. 8](/web/image/product.template/211356/image_128/%5B141983%5D%20RIEGLER%20Pushbutton%20safety%20coupling%20I.D.%2011%2C%20ISO%206150%20C%2C%20Sleeve%20I.D.%208?unique=8c3ed5c)
|
Type number: 411.22-ES |
60.01 € | |
