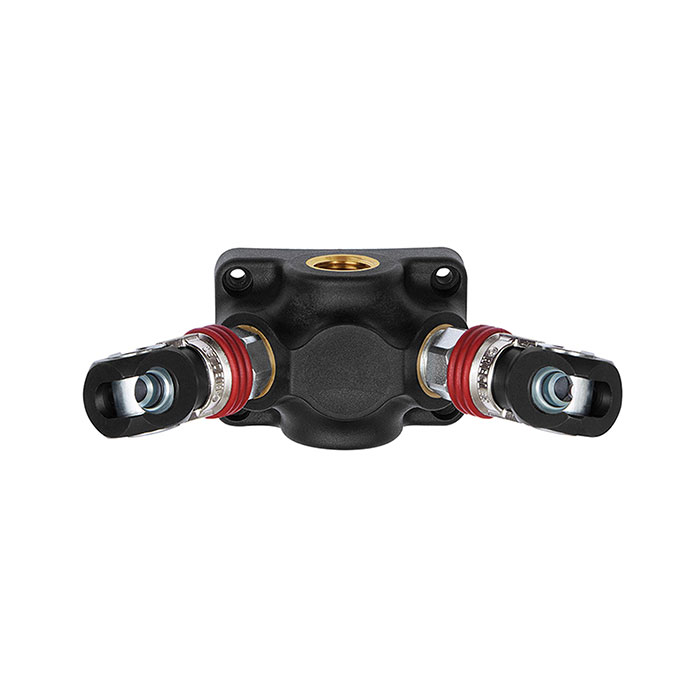

RIEGLER End distributor socket, 3 swing safety coupl. I.D.7.2, max12bar
Type number: EVDSCH12-3
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER End cap made of glass fiber reinforced plastic, for compressed air supply, max. 12 bar - Type EVDSCH12-3
The RIEGLER Endvert.can, 3 swivel couplings NW 7.2, max. 12 bar air separates the compressed air line in two stages in a controlled manner and protects the operator. The housing is made of glass fiber reinforced plastic. Designed for a maximum operating pressure of 12 bar. Maximum safety through controlled pressure relief.
Field of application
Typical areas of application: Compressed air applications with personal protection requirements.
| Housing | glass fiber reinforced plastic |
| Max. operating pressure | 12 bar |
| Tightening torque brass thread | 12 Nm |
| Tightening torque | 4 Nm |
| Height | 59 mm |
| Width | 165 mm |
| Input thread | G 1/2 |
| Connection coupling | 3 x swivel safety clutch |
| Thread material | Brass |
| Class name | MAX |
