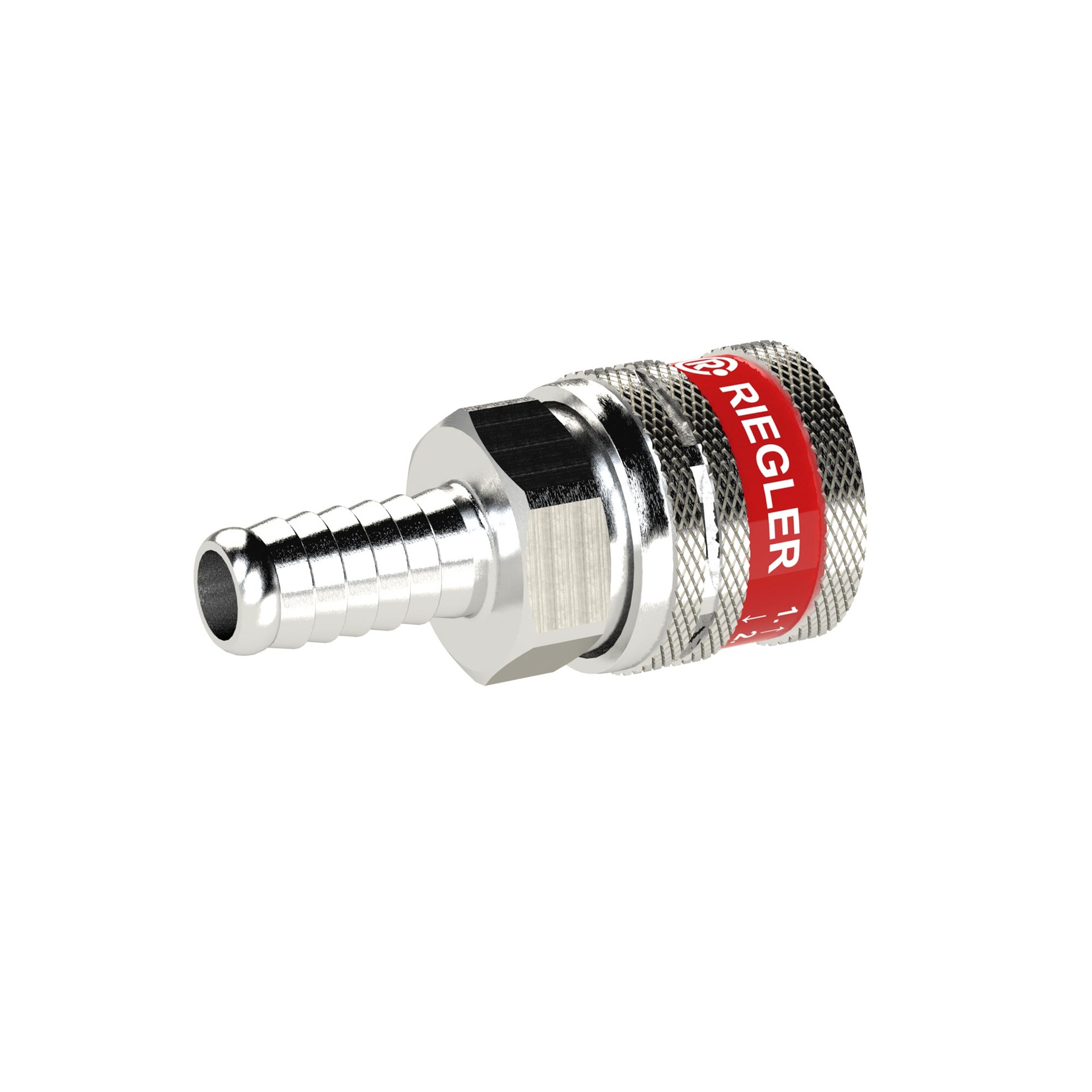

RIEGLER safety coupling NW 7.8, type SEK, nickel-plated brass, spout LW 8
Type number: SEKMSNLW8
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Nickel-plated brass safety coupling, for compressed air supply - type SEKMSNLW8
The RIEGLER safety coupling NW 7.8, type SEK, nickel-plated brass, spout LW 8 separates the compressed air line in two stages in a controlled manner and protects the operator. The housing is made of nickel-plated brass with NBR seals. The flow rate is 1350 l/min (air) (at 6 bar and Δp = 1 bar). Maximum safety thanks to controlled pressure relief.
Field of application
Typical areas of application: Compressed air applications with personal protection requirements.
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| Flow rate | 1350 l/min (air) |
| Operating pressure | -0.95 - 35 bar, max. 10 bar when engaging/disengaging |
| SW | 22 mm |
| NW | 7.8 |
| Length | 58 mm |
| CAS No. SVHC 1 | 7439-92-1 |
| Flow rate measurement | at 6 bar and Î"<sub>p</sub> = 1 bar |
| Class name | EASY |
| Ball | Stainless steel |
| Spring | Stainless steel |
| Valve body | Nickel-plated brass |
| Sleeve | Nickel-plated brass |
| Housing | Nickel-plated brass |
| Sealing material | NBR |
