RIEGLER Pressure regulator »FUTURA-mini«, standard pressure gauge, G 1/4
Type number: FUM 7210
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressure regulator made of PA66 GF60, for compressed air preparation, 0.5 bar - Type FUM 7210
The RIEGLER pressure regulator, d. DV "FUTURA-mini", standard size, G1/4, 0.5-10 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of PA66 GF60 with NBR seals. The control range extends from 0.5 bar to 10 bar with a maximum inlet pressure of 12 bar. The temperature range is between -10 °C and 50 °C. Connection thread G 1/4 - suitable for common industry standards. Suitable for compressed air, neutral gases. The flow rate is 1000 l/min (at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar). Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 12 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Plastic |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA-mini |
| Thread | G 1/4 |
| Flow rate | 1000 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 16 bar |
| BG | 0 |
| A | 43 mm |
| B | 93 mm |
| C | 68 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[142403] RIEGLER Pressure regulator »FUTURA-mini«, standard pressure gauge, G 1/4](/web/image/product.template/210391/image_128/%5B142403%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA-mini%C2%AB%2C%20standard%20pressure%20gauge%2C%20G%201-4?unique=0f338f9)
|
Type number: FUM 7208 |
31.99 € | |

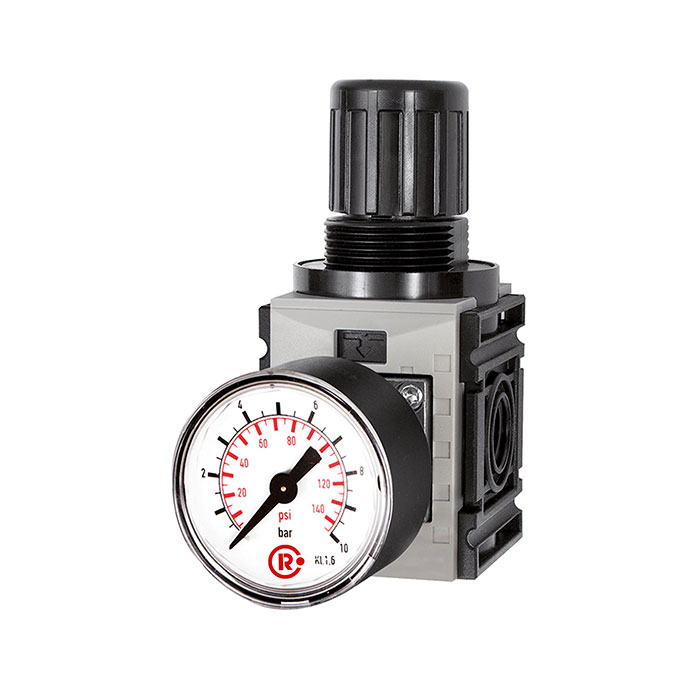

![[142402] RIEGLER Pressure regulator »FUTURA-mini«, standard pressure gauge, G 1/4](/web/image/product.template/210711/image_128/%5B142402%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBFUTURA-mini%C2%AB%2C%20standard%20pressure%20gauge%2C%20G%201-4?unique=b0e0d3f)
|
Type number: FUM 7204 |
31.99 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[143010] RIEGLER Coupling package for wall mounting, incl. 2 screws, »FUTURA-mini«](/web/image/product.template/210835/image_128/%5B143010%5D%20RIEGLER%20Coupling%20package%20for%20wall%20mounting%2C%20incl.%202%20screws%2C%20%C2%BBFUTURA-mini%C2%AB?unique=8b53422)
|
Type number: WKM 100 |
3.37 € | |
![[143022] RIEGLER Coupling package, incl. 2 screws and O-ring, »FUTURA-mini« Size 0](/web/image/product.template/210836/image_128/%5B143022%5D%20RIEGLER%20Coupling%20package%2C%20incl.%202%20screws%20and%20O-ring%2C%20%C2%BBFUTURA-mini%C2%AB%20Size%200?unique=7e98ebf)
|
Type number: KPM 100 |
2.05 € | |

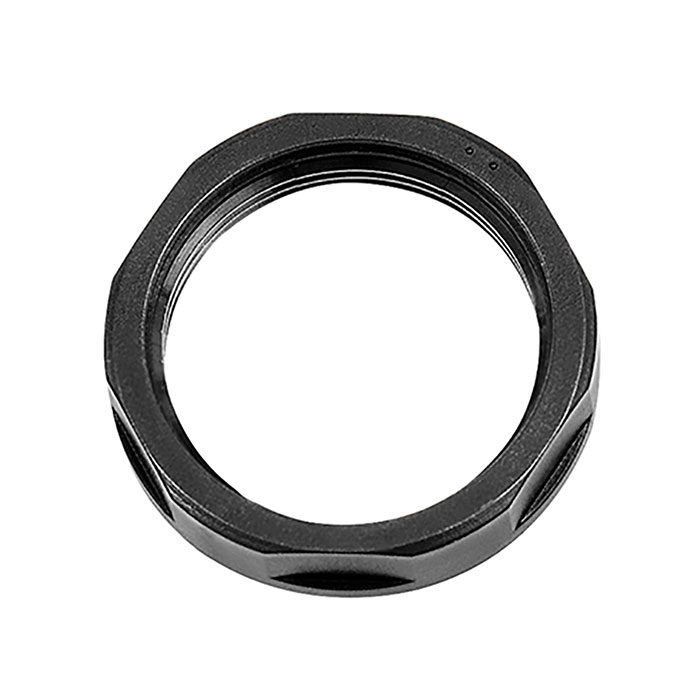

![[143102] RIEGLER Control panel nut M30x1.5, for »FUTURA-mini«, Size 0, G 1/4](/web/image/product.template/210838/image_128/%5B143102%5D%20RIEGLER%20Control%20panel%20nut%20M30x1.5%2C%20for%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200%2C%20G%201-4?unique=1711b4e)
|
