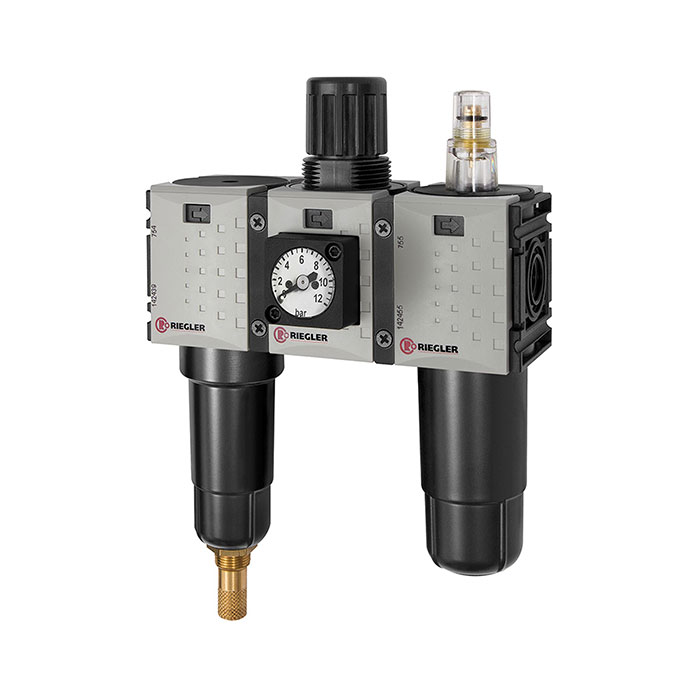

RIEGLER Service unit 3-part »FUTURA-mini« Metal container, G 1/4, 0.5-8
Type number: FUM 633 M-8-KM
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER WE 3-piece "FUTURA-mini" made of PA66 GF60, for compressed air treatment, 0.5 bar - Type FUM 633 M-8-KM
The RIEGLER WE 3-piece "FUTURA-mini", metal housing, compact fitting, G 1/4, 0.5-8, VA combines compressed air filter, regulator and lubricator in one compact maintenance unit. The housing is made of PA66 GF60 with NBR seals. The control range extends from 0.5 bar to 8 bar with a maximum inlet pressure of 12 bar. The temperature range is between -10 °C and 50 °C. Connection thread G 1/4 - suitable for common industry standards. Suitable for compressed air, neutral gases. The flow rate is 800 l/min (at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar). Filter fineness 5 µm, container made of metal container. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 12 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Plastic |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA-mini |
| Container | Metal container |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Dropper attachment | PC |
| Thread | G 1/4 |
| Flow rate | 800 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 8 bar |
| Condensate drain | fully automatic |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 12 bar |
| BG | 0 |
| A | 129 mm |
| B | 196 mm |
| C | 63 mm |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

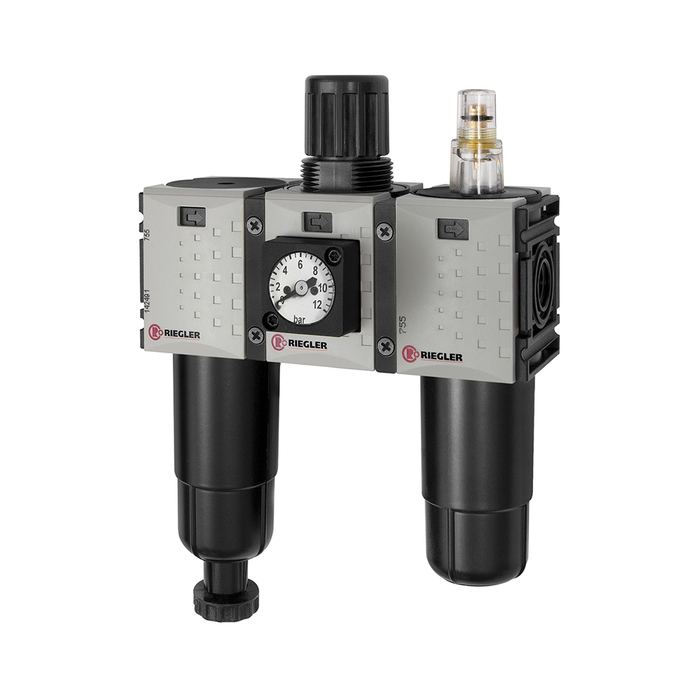

![[142502] RIEGLER Service unit 3-part »FUTURA-mini« Metal container, G 1/4, 0.1-4](/web/image/product.template/210805/image_128/%5B142502%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBFUTURA-mini%C2%AB%20Metal%20container%2C%20G%201-4%2C%200.1-4?unique=18d6db4)
|
