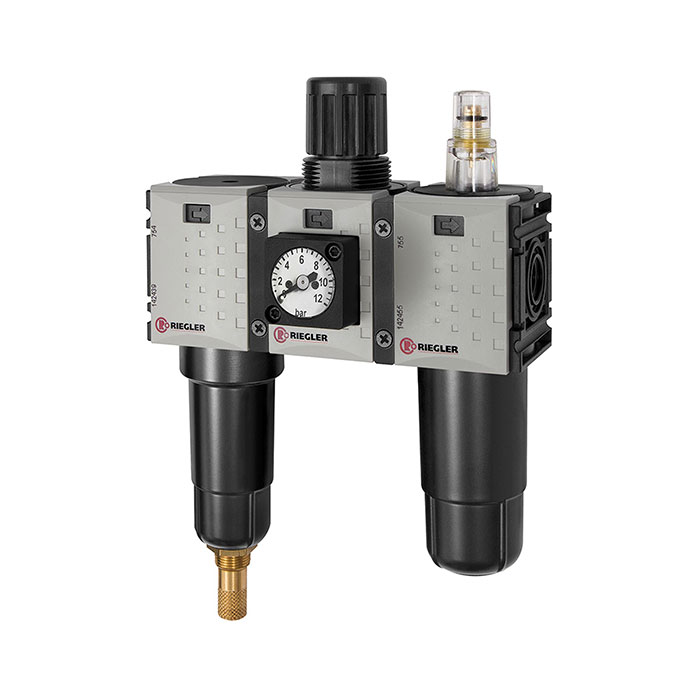

RIEGLER Service unit 3-part »FUTURA-mini« Metal container, G 1/4, 0.5-10
Type number: FUM 633 M-10-KM
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER WE 3-piece "FUTURA-mini" made of PA66 GF60, for compressed air treatment, 0.5 bar - Type FUM 633 M-10-KM
The RIEGLER WE 3-piece "FUTURA-mini", metal housing, compact fitting, G1/4, 0.5-10, VA combines compressed air filter, regulator and lubricator in one compact maintenance unit. The housing is made of PA66 GF60 with NBR seals. The control range extends from 0.5 bar to 10 bar with a maximum inlet pressure of 12 bar. The temperature range is between -10 °C and 50 °C. Connection thread G 1/4 - suitable for common industry standards. Suitable for compressed air, neutral gases. The flow rate is 800 l/min (at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 1 bar). Filter fineness 5 µm, container made of metal container. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 12 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Plastic |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA-mini |
| Container | Metal container |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Dropper attachment | PC |
| Thread | G 1/4 |
| Flow rate | 800 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | fully automatic |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 12 bar |
| BG | 0 |
| A | 129 mm |
| B | 196 mm |
| C | 63 mm |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[142502] RIEGLER Service unit 3-part »FUTURA-mini« Metal container, G 1/4, 0.1-4](/web/image/product.template/210805/image_128/%5B142502%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBFUTURA-mini%C2%AB%20Metal%20container%2C%20G%201-4%2C%200.1-4?unique=18d6db4)
|
Type number: FUM 621 M-4-KM |
87.95 € | |
![[142514] RIEGLER Service unit 3-part »FUTURA-mini« Metal container, G 1/4, 0.1-4](/web/image/product.template/210817/image_128/%5B142514%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBFUTURA-mini%C2%AB%20Metal%20container%2C%20G%201-4%2C%200.1-4?unique=6ee4eda)
|
Type number: FUM 633 M-4-KM |
127.06 € | |
![[142504] RIEGLER Service unit 3-part »FUTURA-mini« Metal container, G 1/4, 0.5-10](/web/image/product.template/210807/image_128/%5B142504%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBFUTURA-mini%C2%AB%20Metal%20container%2C%20G%201-4%2C%200.5-10?unique=eb50166)
|
Type number: FUM 621 M-10-KM |
87.95 € | |

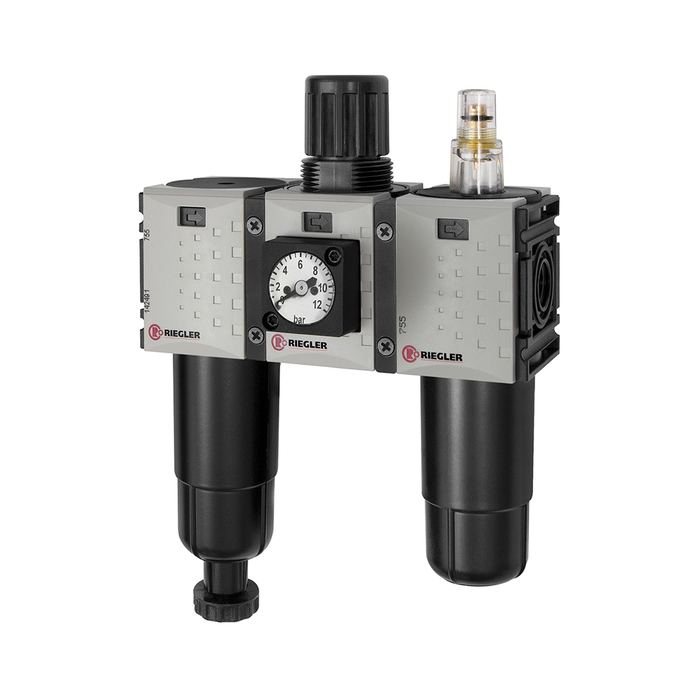

![[142503] RIEGLER Service unit 3-part »FUTURA-mini« Metal container, G 1/4, 0.5-8](/web/image/product.template/210806/image_128/%5B142503%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBFUTURA-mini%C2%AB%20Metal%20container%2C%20G%201-4%2C%200.5-8?unique=453f004)
|
Type number: FUM 621 M-8-KM |
87.95 € | |
![[142515] RIEGLER Service unit 3-part »FUTURA-mini« Metal container, G 1/4, 0.5-8](/web/image/product.template/210818/image_128/%5B142515%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBFUTURA-mini%C2%AB%20Metal%20container%2C%20G%201-4%2C%200.5-8?unique=87f8bc5)
|
Type number: FUM 633 M-8-KM |
127.06 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=16b9c4b)
|
Type number: 655.6.900 |
36.35 € | |
![[152298] RIEGLER Compact pressure gauge for »FUTURA-mini«, 0 - 12 bar, Ø 27x27](/web/image/product.template/210696/image_128/%5B152298%5D%20RIEGLER%20Compact%20pressure%20gauge%20for%20%C2%BBFUTURA-mini%C2%AB%2C%200%20-%2012%20bar%2C%20%C3%98%2027x27?unique=9899467)
|
Typennummer: KM12 |
9.87 € | |
![[143022] RIEGLER Coupling package, incl. 2 screws and O-ring, »FUTURA-mini« Size 0](/web/image/product.template/210836/image_128/%5B143022%5D%20RIEGLER%20Coupling%20package%2C%20incl.%202%20screws%20and%20O-ring%2C%20%C2%BBFUTURA-mini%C2%AB%20Size%200?unique=5fff0be)
|
Type number: KPM 100 |
2.05 € | |
![[100214] Riegler Drip cap polycarbonate, »FUTURA« and »FUTURA-mini«, Size 0 - 4](/web/image/product.template/123261/image_128/%5B100214%5D%20Riegler%20Drip%20cap%20polycarbonate%2C%20%C2%BBFUTURA%C2%AB%20and%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200%20-%204?unique=7fa4153)
|
Type number: 901.7.990 |
6.71 € | |
![[100134] Riegler Filter element 5 µm, Cellpor](/web/image/product.template/123199/image_128/%5B100134%5D%20Riegler%20Filter%20element%205%20%C2%B5m%2C%20Cellpor?unique=e5c17b9)
|
Type number: 611.6.905 |
9.46 € | |
![[100391] RIEGLER Metal container incl. O-ring](/web/image/product.template/139825/image_128/%5B100391%5D%20RIEGLER%20Metal%20container%20incl.%20O-ring?unique=18f9863)
|
Type number: 740/11 |
14.29 € | |
![[100360] RIEGLER Metal container, incl. O-ring, with fully autom. bleeder valve](/web/image/product.template/139794/image_128/%5B100360%5D%20RIEGLER%20Metal%20container%2C%20incl.%20O-ring%2C%20with%20fully%20autom.%20bleeder%20valve?unique=2e4c313)
|
Type number: 640/11-A |
54.36 € | |
![[118137] RIEGLER O-ring for sealing containers, »FUTURA-mini«, Size 0, G 1/4](/web/image/product.template/202393/image_128/%5B118137%5D%20RIEGLER%20O-ring%20for%20sealing%20containers%2C%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200%2C%20G%201-4?unique=b6221c3)
|
Type number: 302.4.9 |
1.08 € | |
![[117251] RIEGLER Pressure spring 0 - 10 bar, galvanised](/web/image/product.template/202343/image_128/%5B117251%5D%20RIEGLER%20Pressure%20spring%200%20-%2010%20bar%2C%20galvanised?unique=77bb6d3)
|
Type number: 1811.5.910 |
4.03 € | |
![[143119] RIEGLER Replacement diaphragm, pressure regulator, »FUTURA-mini«, Size 0](/web/image/product.template/210840/image_128/%5B143119%5D%20RIEGLER%20Replacement%20diaphragm%2C%20pressure%20regulator%2C%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200?unique=09fde34)
|
Type number: 7010.4.950M |
7.62 € | |
![[143140] RIEGLER Spare parts for filter regulator/regulator, »FUTURA-mini«, Size 0](/web/image/product.template/210845/image_128/%5B143140%5D%20RIEGLER%20Spare%20parts%20for%20filter%20regulator-regulator%2C%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200?unique=5972d69)
|
Type number: 22.7010M.4 |
7.76 € | |
![[117242] RIEGLER Wheel, 0.5 - 10 bar / 7 - 145 psi, »FUTURA-mini«, Size 0, G1/4](/web/image/product.template/202342/image_128/%5B117242%5D%20RIEGLER%20Wheel%2C%200.5%20-%2010%20bar%20-%207%20-%20145%20psi%2C%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200%2C%20G1-4?unique=cf59079)
|
Type number: 1811.3.910 |
4.03 € | |
