RIEGLER SYNTESI" filter, BG1, G 3/8, 5µm, RA fully automatic.
Type number: 5613F403
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter »SYNTESI«, size 1, G 3/8, 5 µm, p1 = max. 10 bar, RA fully automatic, T = -10 … 50 °C
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Container | Technopolymer |
| Filter fineness | 5 µm |
| BG | 1 |
| Input connection | G 3/8 |
| Output connection | |
| A | 42 mm |
| B | 152 mm |
| Flow_2 | 1750 Nl/min |
| Flow rate measurement 1 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 0.5 bar |
| Flow rate measurement 2 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| Air purity class at the outlet according to | 38171 |
| A1 | 44.0 mm |
| Thread on front and back | G 1/8 |
| Series | Syntesi |
| Condensate drain | RA fully automatic |
| F | 25.8 mm |
| Flow_1 | 1300 Nl/min |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[144566] RIEGLER Filter "SYNTESI", BG1, G 1/8, 20µm, RA fully automatic.](/web/image/product.template/277828/image_128/%5B144566%5D%20RIEGLER%20Filter%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%2020%C2%B5m%2C%20RA%20fully%20automatic.?unique=fe4730b)
|
Type number: 5611F501 |
50.94 € | |
![[144565] RIEGLER Filter "SYNTESI", BG1, G 1/8, 5µm, RA fully automatic.](/web/image/product.template/277827/image_128/%5B144565%5D%20RIEGLER%20Filter%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%205%C2%B5m%2C%20RA%20fully%20automatic.?unique=297941a)
|
Type number: 5611F401 |
50.94 € | |
![[144564] RIEGLER Filter "SYNTESI", BG1, without sockets, 20µm, RA fully automatic.](/web/image/product.template/277826/image_128/%5B144564%5D%20RIEGLER%20Filter%20%22SYNTESI%22%2C%20BG1%2C%20without%20sockets%2C%2020%C2%B5m%2C%20RA%20fully%20automatic.?unique=3d5ad13)
|
Type number: 5610F500 |
48.03 € | |
![[144563] RIEGLER Filter "SYNTESI", BG1, without sockets, 5µm, RA fully automatic.](/web/image/product.template/277825/image_128/%5B144563%5D%20RIEGLER%20Filter%20%22SYNTESI%22%2C%20BG1%2C%20without%20sockets%2C%205%C2%B5m%2C%20RA%20fully%20automatic.?unique=f462fb6)
|
Type number: 5610F400 |
48.03 € | |
![[144576] RIEGLER Filter "SYNTESI", BG2, G 1/2, 20µm, RA fully automatic.](/web/image/product.template/277838/image_128/%5B144576%5D%20RIEGLER%20Filter%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%2020%C2%B5m%2C%20RA%20fully%20automatic.?unique=de13b5c)
|
Type number: 5624F504 |
70.45 € | |
![[144575] RIEGLER Filter "SYNTESI", BG2, G 1/2, 5µm, RA fully automatic.](/web/image/product.template/277837/image_128/%5B144575%5D%20RIEGLER%20Filter%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%205%C2%B5m%2C%20RA%20fully%20automatic.?unique=b19dc8b)
|
Type number: 5624F404 |
70.45 € | |
![[144578] RIEGLER Filter "SYNTESI", BG2, G 3/4, 20µm, RA fully automatic.](/web/image/product.template/277840/image_128/%5B144578%5D%20RIEGLER%20Filter%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%2020%C2%B5m%2C%20RA%20fully%20automatic.?unique=4298024)
|
Type number: 5625F505 |
79.27 € | |
![[144577] RIEGLER Filter "SYNTESI", BG2, G 3/4, 5µm, RA fully automatic.](/web/image/product.template/277839/image_128/%5B144577%5D%20RIEGLER%20Filter%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%205%C2%B5m%2C%20RA%20fully%20automatic.?unique=325a557)
|
Type number: 5625F405 |
79.27 € | |
![[144572] RIEGLER Filter "SYNTESI", BG2, without sockets, 20µm, RA fully automatic.](/web/image/product.template/277834/image_128/%5B144572%5D%20RIEGLER%20Filter%20%22SYNTESI%22%2C%20BG2%2C%20without%20sockets%2C%2020%C2%B5m%2C%20RA%20fully%20automatic.?unique=8f08127)
|
Type number: 5620F500 |
59.12 € | |
![[144571] RIEGLER Filter "SYNTESI", BG2, without sockets, 5µm, RA fully automatic.](/web/image/product.template/277833/image_128/%5B144571%5D%20RIEGLER%20Filter%20%22SYNTESI%22%2C%20BG2%2C%20without%20sockets%2C%205%C2%B5m%2C%20RA%20fully%20automatic.?unique=db00d59)
|
Type number: 5620F400 |
59.12 € | |
![[144568] RIEGLER SYNTESI" filter, BG1, G 1/4, 20µm, RA fully automatic.](/web/image/product.template/277830/image_128/%5B144568%5D%20RIEGLER%20SYNTESI%22%20filter%2C%20BG1%2C%20G%201-4%2C%2020%C2%B5m%2C%20RA%20fully%20automatic.?unique=2e00c26)
|
Type number: 5612F502 |
50.94 € | |
![[144567] RIEGLER SYNTESI" filter, BG1, G 1/4, 5µm, RA fully automatic.](/web/image/product.template/277829/image_128/%5B144567%5D%20RIEGLER%20SYNTESI%22%20filter%2C%20BG1%2C%20G%201-4%2C%205%C2%B5m%2C%20RA%20fully%20automatic.?unique=2dfe097)
|
Type number: 5612F402 |
50.94 € | |

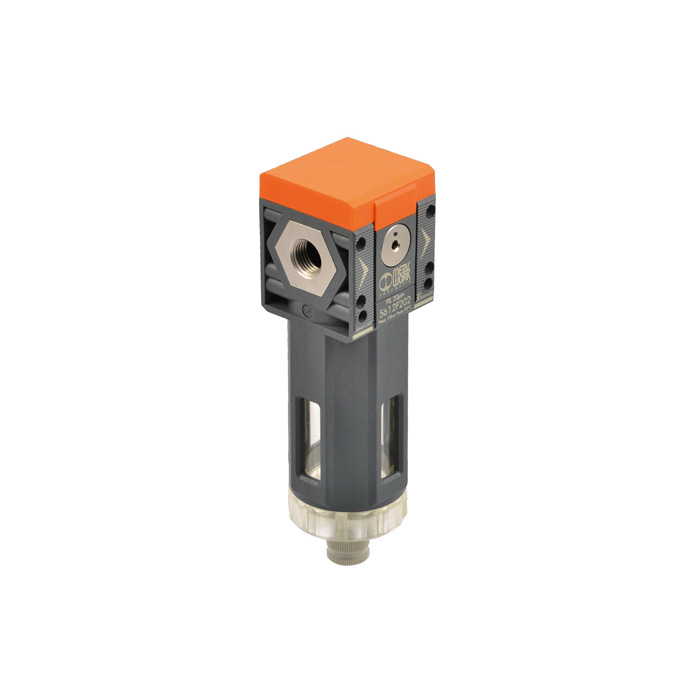

![[144570] RIEGLER SYNTESI" filter, BG1, G 3/8, 20µm, RA fully automatic.](/web/image/product.template/277832/image_128/%5B144570%5D%20RIEGLER%20SYNTESI%22%20filter%2C%20BG1%2C%20G%203-8%2C%2020%C2%B5m%2C%20RA%20fully%20automatic.?unique=59aad85)
|
