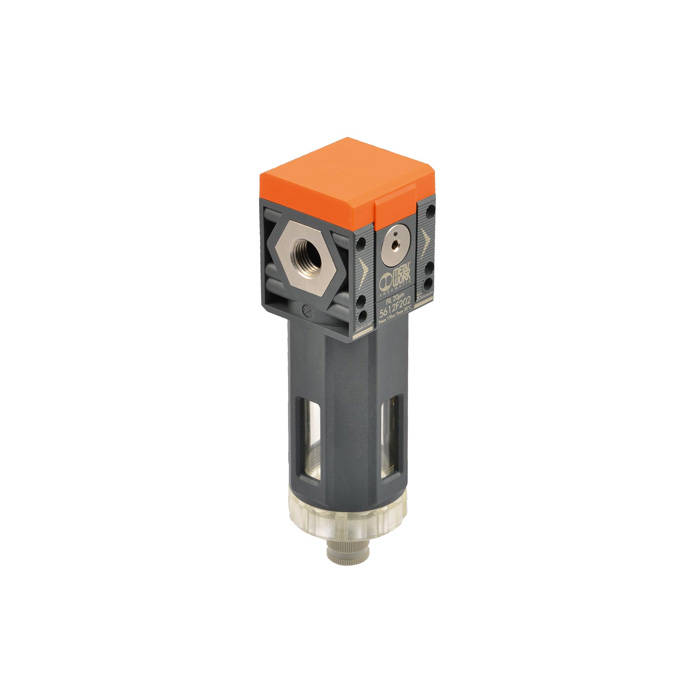

RIEGLER SYNTESI" filter, BG1, G 3/8, 20µm, RA fully automatic.
Type number: 5613F503
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter »SYNTESI«, size 1, G 3/8, 20 µm, p1 = max. 10 bar, RA fully automatic, T = -10 … 50 °C
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Container | Technopolymer |
| Filter fineness | 20 µm |
| BG | 1 |
| Input connection | G 3/8 |
| Output connection | |
| A | 42 mm |
| B | 152 mm |
| Flow_2 | 1750 Nl/min |
| Flow rate measurement 1 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 0.5 bar |
| Flow rate measurement 2 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| Air purity class at the outlet according to | 38172 |
| A1 | 44.0 mm |
| Thread on front and back | G 1/8 |
| Series | Syntesi |
| Condensate drain | RA fully automatic |
| F | 25.8 mm |
| Flow_1 | 1300 Nl/min |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[144566] RIEGLER Filter "SYNTESI", BG1, G 1/8, 20µm, RA fully automatic.](/web/image/product.template/277828/image_128/%5B144566%5D%20RIEGLER%20Filter%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%2020%C2%B5m%2C%20RA%20fully%20automatic.?unique=fe4730b)
|
Type number: 5611F501 |
50.94 € | |
![[144565] RIEGLER Filter "SYNTESI", BG1, G 1/8, 5µm, RA fully automatic.](/web/image/product.template/277827/image_128/%5B144565%5D%20RIEGLER%20Filter%20%22SYNTESI%22%2C%20BG1%2C%20G%201-8%2C%205%C2%B5m%2C%20RA%20fully%20automatic.?unique=297941a)
|
Type number: 5611F401 |
50.94 € | |
![[144564] RIEGLER Filter "SYNTESI", BG1, without sockets, 20µm, RA fully automatic.](/web/image/product.template/277826/image_128/%5B144564%5D%20RIEGLER%20Filter%20%22SYNTESI%22%2C%20BG1%2C%20without%20sockets%2C%2020%C2%B5m%2C%20RA%20fully%20automatic.?unique=3d5ad13)
|
Type number: 5610F500 |
48.03 € | |
![[144563] RIEGLER Filter "SYNTESI", BG1, without sockets, 5µm, RA fully automatic.](/web/image/product.template/277825/image_128/%5B144563%5D%20RIEGLER%20Filter%20%22SYNTESI%22%2C%20BG1%2C%20without%20sockets%2C%205%C2%B5m%2C%20RA%20fully%20automatic.?unique=f462fb6)
|
Type number: 5610F400 |
48.03 € | |
![[144576] RIEGLER Filter "SYNTESI", BG2, G 1/2, 20µm, RA fully automatic.](/web/image/product.template/277838/image_128/%5B144576%5D%20RIEGLER%20Filter%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%2020%C2%B5m%2C%20RA%20fully%20automatic.?unique=de13b5c)
|
Type number: 5624F504 |
70.45 € | |
![[144575] RIEGLER Filter "SYNTESI", BG2, G 1/2, 5µm, RA fully automatic.](/web/image/product.template/277837/image_128/%5B144575%5D%20RIEGLER%20Filter%20%22SYNTESI%22%2C%20BG2%2C%20G%201-2%2C%205%C2%B5m%2C%20RA%20fully%20automatic.?unique=b19dc8b)
|
Type number: 5624F404 |
70.45 € | |
![[144578] RIEGLER Filter "SYNTESI", BG2, G 3/4, 20µm, RA fully automatic.](/web/image/product.template/277840/image_128/%5B144578%5D%20RIEGLER%20Filter%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%2020%C2%B5m%2C%20RA%20fully%20automatic.?unique=4298024)
|
Type number: 5625F505 |
79.27 € | |
![[144577] RIEGLER Filter "SYNTESI", BG2, G 3/4, 5µm, RA fully automatic.](/web/image/product.template/277839/image_128/%5B144577%5D%20RIEGLER%20Filter%20%22SYNTESI%22%2C%20BG2%2C%20G%203-4%2C%205%C2%B5m%2C%20RA%20fully%20automatic.?unique=325a557)
|
Type number: 5625F405 |
79.27 € | |
![[144572] RIEGLER Filter "SYNTESI", BG2, without sockets, 20µm, RA fully automatic.](/web/image/product.template/277834/image_128/%5B144572%5D%20RIEGLER%20Filter%20%22SYNTESI%22%2C%20BG2%2C%20without%20sockets%2C%2020%C2%B5m%2C%20RA%20fully%20automatic.?unique=8f08127)
|
Type number: 5620F500 |
59.12 € | |
![[144571] RIEGLER Filter "SYNTESI", BG2, without sockets, 5µm, RA fully automatic.](/web/image/product.template/277833/image_128/%5B144571%5D%20RIEGLER%20Filter%20%22SYNTESI%22%2C%20BG2%2C%20without%20sockets%2C%205%C2%B5m%2C%20RA%20fully%20automatic.?unique=db00d59)
|
Type number: 5620F400 |
59.12 € | |
![[144568] RIEGLER SYNTESI" filter, BG1, G 1/4, 20µm, RA fully automatic.](/web/image/product.template/277830/image_128/%5B144568%5D%20RIEGLER%20SYNTESI%22%20filter%2C%20BG1%2C%20G%201-4%2C%2020%C2%B5m%2C%20RA%20fully%20automatic.?unique=2e00c26)
|
Type number: 5612F502 |
50.94 € | |
![[144567] RIEGLER SYNTESI" filter, BG1, G 1/4, 5µm, RA fully automatic.](/web/image/product.template/277829/image_128/%5B144567%5D%20RIEGLER%20SYNTESI%22%20filter%2C%20BG1%2C%20G%201-4%2C%205%C2%B5m%2C%20RA%20fully%20automatic.?unique=2dfe097)
|
Type number: 5612F402 |
50.94 € | |
![[144569] RIEGLER SYNTESI" filter, BG1, G 3/8, 5µm, RA fully automatic.](/web/image/product.template/277831/image_128/%5B144569%5D%20RIEGLER%20SYNTESI%22%20filter%2C%20BG1%2C%20G%203-8%2C%205%C2%B5m%2C%20RA%20fully%20automatic.?unique=2ee2b31)
|
Type number: 5613F403 |
50.94 € | |
![[144580] RIEGLER SYNTESI" filter, BG2, G 1, 20µm, RA fully automatic.](/web/image/product.template/277842/image_128/%5B144580%5D%20RIEGLER%20SYNTESI%22%20filter%2C%20BG2%2C%20G%201%2C%2020%C2%B5m%2C%20RA%20fully%20automatic.?unique=681c9ab)
|
Type number: 5626F506 |
79.27 € | |
![[144579] RIEGLER SYNTESI" filter, BG2, G 1, 5µm, RA fully automatic.](/web/image/product.template/277841/image_128/%5B144579%5D%20RIEGLER%20SYNTESI%22%20filter%2C%20BG2%2C%20G%201%2C%205%C2%B5m%2C%20RA%20fully%20automatic.?unique=436672a)
|
Type number: 5626F406 |
79.27 € | |
![[144574] RIEGLER SYNTESI" filter, BG2, G 3/8, 20µm, RA fully automatic.](/web/image/product.template/277836/image_128/%5B144574%5D%20RIEGLER%20SYNTESI%22%20filter%2C%20BG2%2C%20G%203-8%2C%2020%C2%B5m%2C%20RA%20fully%20automatic.?unique=49595b9)
|
Type number: 5623F503 |
70.45 € | |
![[144573] RIEGLER SYNTESI" filter, BG2, G 3/8, 5µm, RA fully automatic.](/web/image/product.template/277835/image_128/%5B144573%5D%20RIEGLER%20SYNTESI%22%20filter%2C%20BG2%2C%20G%203-8%2C%205%C2%B5m%2C%20RA%20fully%20automatic.?unique=1181354)
|
Type number: 5623F403 |
70.45 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[144695] RIEGLER Connecting nipple set "SYNTESI", BG 1](/web/image/product.template/279863/image_128/%5B144695%5D%20RIEGLER%20Connecting%20nipple%20set%20%22SYNTESI%22%2C%20BG%201?unique=6c5a672)
|
Type number: 9210000 |
2.73 € | |
![[145502] RIEGLER Connecting element 90°, "SYNTESI", BG 1](/web/image/product.template/279258/image_128/%5B145502%5D%20RIEGLER%20Connecting%20element%2090%C2%B0%2C%20%22SYNTESI%22%2C%20BG%201?unique=0de1fae)
|
Type number: 9210009 |
4.13 € | |
![[145504] RIEGLER Size adapter "SYNTESI", BG 1 - BG 2](/web/image/product.template/279260/image_128/%5B145504%5D%20RIEGLER%20Size%20adapter%20%22SYNTESI%22%2C%20BG%201%20-%20BG%202?unique=2c44eae)
|
Type number: 9210006 |
6.56 € | |
![[145505] RIEGLER Assembly wrench for "SYNTESI" BG 1, "bit" container](/web/image/product.template/279261/image_128/%5B145505%5D%20RIEGLER%20Assembly%20wrench%20for%20%22SYNTESI%22%20BG%201%2C%20%22bit%22%20container?unique=59e74f6)
|
Type number: 9170601 |
5.62 € | |
![[145507] RIEGLER SYNTESI" fixing screw, BG 1](/web/image/product.template/279263/image_128/%5B145507%5D%20RIEGLER%20SYNTESI%22%20fixing%20screw%2C%20BG%201?unique=487672b)
|
Type number: 9210030 |
0.26 € | |
![[145611] RIEGLER SYNTESI" container, BG 1, RMSA semi-automatic](/web/image/product.template/279268/image_128/%5B145611%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%201%2C%20RMSA%20semi-automatic?unique=74db88c)
|
Type number: 9210100 |
7.03 € | |
![[145613] RIEGLER SYNTESI" container, BG 1, SAC fully automatic](/web/image/product.template/279270/image_128/%5B145613%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%201%2C%20SAC%20fully%20automatic?unique=38029db)
|
Type number: 9210102 |
17.84 € | |
![[145619] RIEGLER Filter element "SYNTESI", BG 1, 5 µm](/web/image/product.template/279276/image_128/%5B145619%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%201%2C%205%20%C2%B5m?unique=d9c62c1)
|
Type number: 9210150 |
4.97 € | |
![[145621] RIEGLER Filter element "SYNTESI", BG 1, 50 µm](/web/image/product.template/279278/image_128/%5B145621%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%201%2C%2050%20%C2%B5m?unique=f321477)
|
Type number: 9210152 |
4.97 € | |
![[145658] RIEGLER SYNTESI" mounting bracket, BG 1, standard and anti-corrosion](/web/image/product.template/279315/image_128/%5B145658%5D%20RIEGLER%20SYNTESI%22%20mounting%20bracket%2C%20BG%201%2C%20standard%20and%20anti-corrosion?unique=6cd54f1)
|
Type number: 9200716X |
13.64 € | |
![[145660] RIEGLER Adapter for DIN rail "SYNTESI", BG 1 and BG 2](/web/image/product.template/279317/image_128/%5B145660%5D%20RIEGLER%20Adapter%20for%20DIN%20rail%20%22SYNTESI%22%2C%20BG%201%20and%20BG%202?unique=46d82ff)
|
Type number: 9200718X |
18.99 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[145609] RIEGLER Automatic drain valve "SYNTESI", RA](/web/image/product.template/279266/image_128/%5B145609%5D%20RIEGLER%20Automatic%20drain%20valve%20%22SYNTESI%22%2C%20RA?unique=6b002b7)
|
Type number: 9000802 |
37.41 € | |

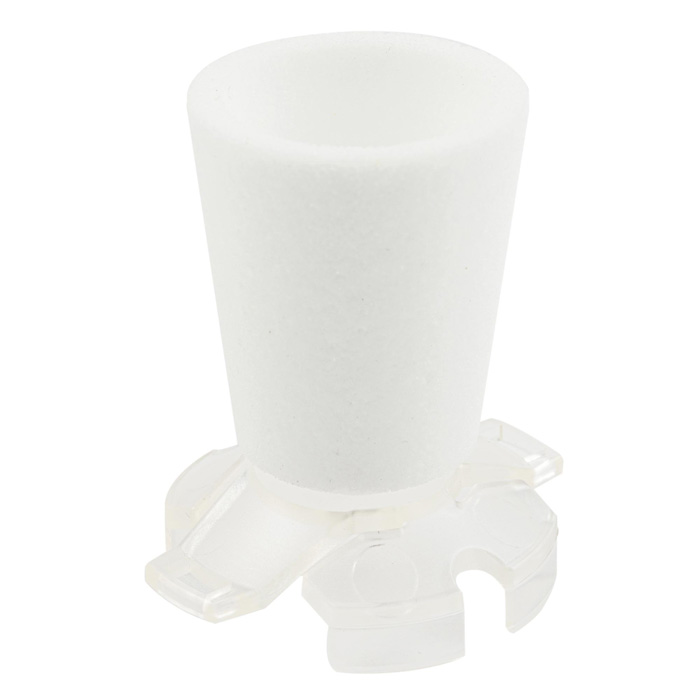

![[145620] RIEGLER Filter element "SYNTESI", BG 1, 20 µm](/web/image/product.template/279277/image_128/%5B145620%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%201%2C%2020%20%C2%B5m?unique=0e45b61)
|
Type number: 9210151 |
4.97 € | |
![[111409] RIEGLER Locking screw, Hexagonal socket 3 mm, G 1/8, nickel-plated brass](/web/image/product.template/183330/image_128/%5B111409%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%203%20mm%2C%20G%201-8%2C%20nickel-plated%20brass?unique=35ecde4)
|
Type number: 233.02-N |
0.42 € | |

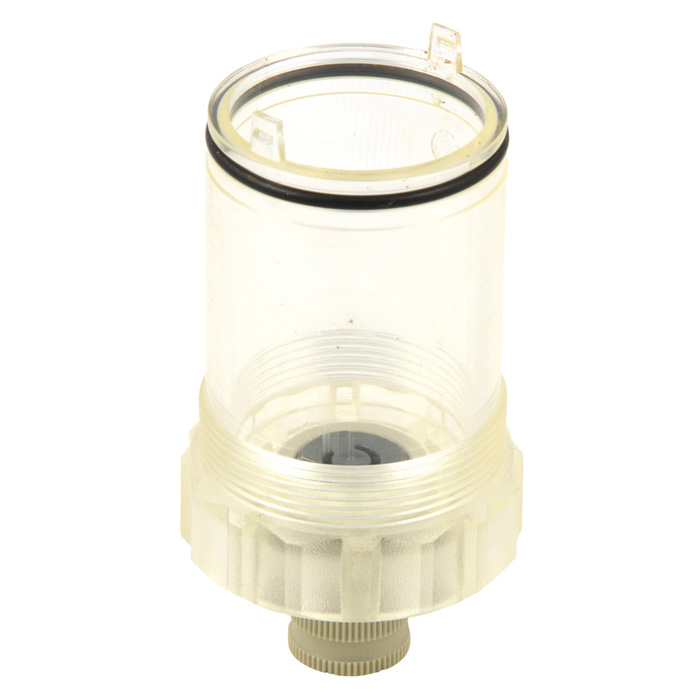

![[145612] RIEGLER SYNTESI" container, BG 1, RA fully automatic](/web/image/product.template/279269/image_128/%5B145612%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%201%2C%20RA%20fully%20automatic?unique=623988f)
|
Type number: 9210101 |
30.52 € | |
![[144690] RIEGLER Threaded connection socket "SYNTESI", BG 1, G 3/8, incl. 2 screws](/web/image/product.template/277872/image_128/%5B144690%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%20incl.%202%20screws?unique=b712980)
|
Type number: 9210003 |
1.88 € | |
