RIEGLER Activated carbon filter "SYNTESI", BG 1, G 3/8, 0.003 mg/m³, RMSA
Type number: 5613C103
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Activated carbon filter "SYNTESI" made of technopolymer, for compressed air treatment - type 5613C103
The RIEGLER activated carbon filter "SYNTESI", BG 1, G 3/8, 0.003 mg/m³, RMSA removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of technopolymer with NBR seals. The maximum inlet pressure is 15 bar. The temperature range is between -10 °C and 50 °C. Suitable for 0.01 µm filtered and oil-filtered compressed air or neutral gases. Container made of technopolymer. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 15 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | 0.01 µm filtered and oil-filtered compressed air or neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Container | Technopolymer |
| Residual oil content | 0.003 mg/m³ |
| BG | 1 |
| Input connection | G 3/8 |
| Output connection | |
| A | 42 mm |
| B | 148 mm |
| Recommended flow rate at 6.3 bar | 350 Nl/min |
| Class name | PLUS |
| Air purity class at the outlet according to | 37073 |
| A1 | 44.0 mm |
| Thread on front and back | G 1/8 |
| Series | Syntesi |
| Condensate drain | |
| F | 25.8 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[144664] RIEGLER Activated carbon filter "SYNTESI", BG 1, G 1/4, 0.003 mg/m³, RMSA](/web/image/product.template/277854/image_128/%5B144664%5D%20RIEGLER%20Activated%20carbon%20filter%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-4%2C%200.003%20mg-m%C2%B3%2C%20RMSA?unique=10079bf)
|
Type number: 5612C102 |
79.30 € | |
![[144663] RIEGLER Activated carbon filter "SYNTESI", BG 1, G 1/8, 0.003 mg/m³, RMSA](/web/image/product.template/277853/image_128/%5B144663%5D%20RIEGLER%20Activated%20carbon%20filter%20%22SYNTESI%22%2C%20BG%201%2C%20G%201-8%2C%200.003%20mg-m%C2%B3%2C%20RMSA?unique=945039f)
|
Type number: 5611C101 |
79.30 € | |
![[144662] RIEGLER Activated carbon filter "SYNTESI", BG 1, without sockets, 0.003 mg/m³, RMSA](/web/image/product.template/277852/image_128/%5B144662%5D%20RIEGLER%20Activated%20carbon%20filter%20%22SYNTESI%22%2C%20BG%201%2C%20without%20sockets%2C%200.003%20mg-m%C2%B3%2C%20RMSA?unique=1f34314)
|
Type number: 5610C100 |
77.10 € | |
![[144670] RIEGLER Activated carbon filter "SYNTESI", BG 2, G 1, 0.003 mg/m³, RMSA](/web/image/product.template/277860/image_128/%5B144670%5D%20RIEGLER%20Activated%20carbon%20filter%20%22SYNTESI%22%2C%20BG%202%2C%20G%201%2C%200.003%20mg-m%C2%B3%2C%20RMSA?unique=f170839)
|
Type number: 5626C106 |
130.09 € | |
![[144668] RIEGLER Activated carbon filter "SYNTESI", BG 2, G 1/2, 0.003 mg/m³, RMSA](/web/image/product.template/277858/image_128/%5B144668%5D%20RIEGLER%20Activated%20carbon%20filter%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%200.003%20mg-m%C2%B3%2C%20RMSA?unique=db1f04b)
|
Type number: 5624C104 |
121.39 € | |
![[144669] RIEGLER Activated carbon filter "SYNTESI", BG 2, G 3/4, 0.003 mg/m³, RMSA](/web/image/product.template/277859/image_128/%5B144669%5D%20RIEGLER%20Activated%20carbon%20filter%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-4%2C%200.003%20mg-m%C2%B3%2C%20RMSA?unique=8dd98f6)
|
Type number: 5625C105 |
130.09 € | |
![[144667] RIEGLER Activated carbon filter "SYNTESI", BG 2, G 3/8, 0.003 mg/m³, RMSA](/web/image/product.template/277857/image_128/%5B144667%5D%20RIEGLER%20Activated%20carbon%20filter%20%22SYNTESI%22%2C%20BG%202%2C%20G%203-8%2C%200.003%20mg-m%C2%B3%2C%20RMSA?unique=6c19d8d)
|
Type number: 5623C103 |
121.39 € | |
![[144666] RIEGLER Activated carbon filter "SYNTESI", BG 2, without sockets, 0.003 mg/m³, RMSA](/web/image/product.template/277856/image_128/%5B144666%5D%20RIEGLER%20Activated%20carbon%20filter%20%22SYNTESI%22%2C%20BG%202%2C%20without%20sockets%2C%200.003%20mg-m%C2%B3%2C%20RMSA?unique=3245684)
|
Type number: 5620C100 |
110.23 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[144695] RIEGLER Connecting nipple set "SYNTESI", BG 1](/web/image/product.template/279863/image_128/%5B144695%5D%20RIEGLER%20Connecting%20nipple%20set%20%22SYNTESI%22%2C%20BG%201?unique=55bd7c9)
|
Type number: 9210000 |
2.70 € | |
![[145502] RIEGLER Connecting element 90°, "SYNTESI", BG 1](/web/image/product.template/279258/image_128/%5B145502%5D%20RIEGLER%20Connecting%20element%2090%C2%B0%2C%20%22SYNTESI%22%2C%20BG%201?unique=df1f0e4)
|
Type number: 9210009 |
4.08 € | |
![[145504] RIEGLER Size adapter "SYNTESI", BG 1 - BG 2](/web/image/product.template/279260/image_128/%5B145504%5D%20RIEGLER%20Size%20adapter%20%22SYNTESI%22%2C%20BG%201%20-%20BG%202?unique=0c8305f)
|
Type number: 9210006 |
6.47 € | |
![[145505] RIEGLER Assembly wrench for "SYNTESI" BG 1, "bit" container](/web/image/product.template/279261/image_128/%5B145505%5D%20RIEGLER%20Assembly%20wrench%20for%20%22SYNTESI%22%20BG%201%2C%20%22bit%22%20container?unique=0dd18d6)
|
Type number: 9170601 |
5.53 € | |
![[145507] RIEGLER SYNTESI" fixing screw, BG 1](/web/image/product.template/279263/image_128/%5B145507%5D%20RIEGLER%20SYNTESI%22%20fixing%20screw%2C%20BG%201?unique=8a26ee2)
|
Type number: 9210030 |
0.25 € | |
![[145658] RIEGLER SYNTESI" mounting bracket, BG 1, standard and anti-corrosion](/web/image/product.template/279315/image_128/%5B145658%5D%20RIEGLER%20SYNTESI%22%20mounting%20bracket%2C%20BG%201%2C%20standard%20and%20anti-corrosion?unique=4a868ba)
|
Type number: 9200716X |
13.63 € | |
![[145660] RIEGLER Adapter for DIN rail "SYNTESI", BG 1 and BG 2](/web/image/product.template/279317/image_128/%5B145660%5D%20RIEGLER%20Adapter%20for%20DIN%20rail%20%22SYNTESI%22%2C%20BG%201%20and%20BG%202?unique=a2c21c2)
|
Type number: 9200718X |
18.99 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

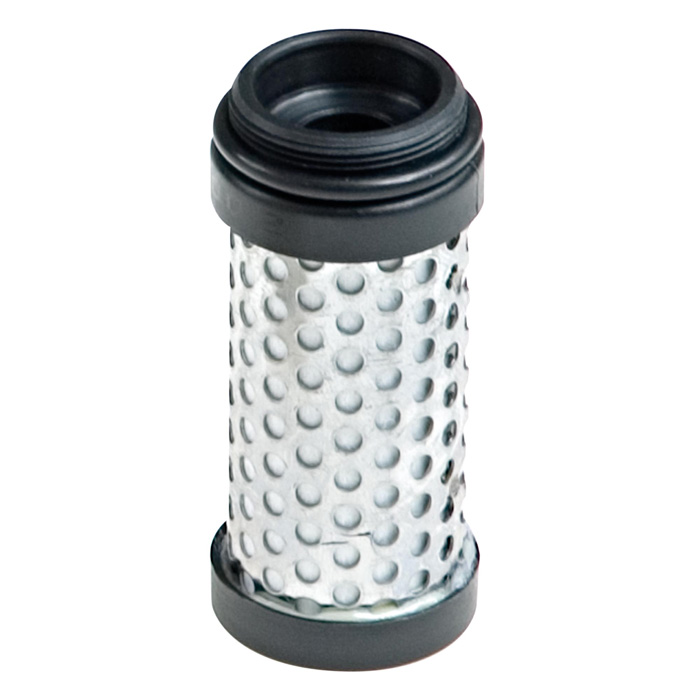

![[145627] RIEGLER Filter element "SYNTESI", BG 1, 0.003 µm](/web/image/product.template/279284/image_128/%5B145627%5D%20RIEGLER%20Filter%20element%20%22SYNTESI%22%2C%20BG%201%2C%200.003%20%C2%B5m?unique=6addaee)
|
Type number: 9210161 |
51.87 € | |
![[111409] RIEGLER Locking screw, Hexagonal socket 3 mm, G 1/8, nickel-plated brass](/web/image/product.template/183330/image_128/%5B111409%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%203%20mm%2C%20G%201-8%2C%20nickel-plated%20brass?unique=671c19e)
|
Type number: 233.02-N |
0.42 € | |
![[145611] RIEGLER SYNTESI" container, BG 1, RMSA semi-automatic](/web/image/product.template/279268/image_128/%5B145611%5D%20RIEGLER%20SYNTESI%22%20container%2C%20BG%201%2C%20RMSA%20semi-automatic?unique=628641c)
|
Type number: 9210100 |
6.94 € | |
![[144690] RIEGLER Threaded connection socket "SYNTESI", BG 1, G 3/8, incl. 2 screws](/web/image/product.template/277872/image_128/%5B144690%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%20incl.%202%20screws?unique=e13823e)
|
Type number: 9210003 |
1.86 € | |
