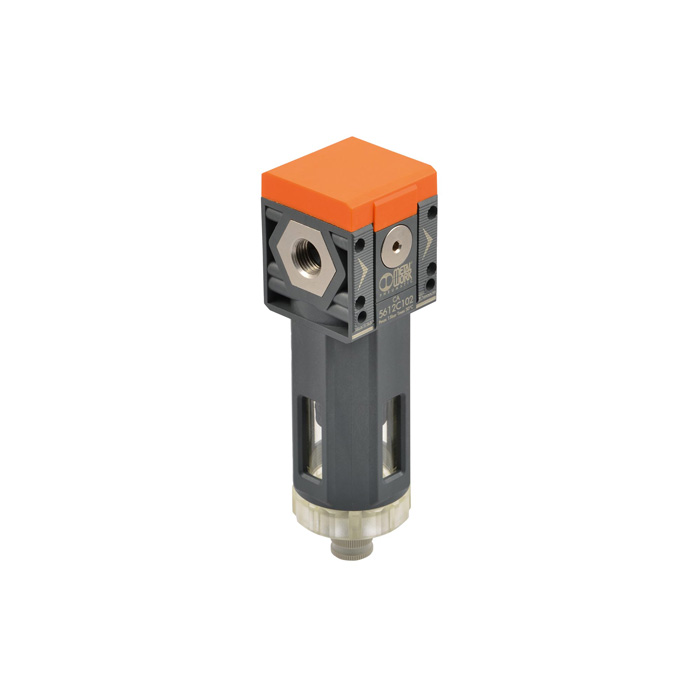

RIEGLER Activated carbon filter "SYNTESI", BG 2, without sockets, 0.003 mg/m³, RMSA
Type number: MVB.12.MS.24D.N.RZ.13
EAN: 4047322760140
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Activated carbon filter "SYNTESI", BG 2, without sockets, p1 max. = 13 bar, 0.003 mg/m³, RMSA semi-automatic, T = -10 ... 50 °C
| Inlet pressure max. | 13 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | 0.01 µm filtered and oil-filtered compressed air or neutral gases |
| Housing | Technopolymer |
| Sealing material | NBR |
| Container | Technopolymer |
| Residual oil content | 0.003 mg/m³ |
| BG | 2 |
| Input connection | without socket |
| Output connection | without socket |
| A | 60.5 mm |
| B | 178 mm |
| Recommended flow rate at 6.3 bar | 800 Nl/min |
| Class name | PLUS |
| Air purity class at the outlet according to | 37073 |
| Thread on front and back | G 1/4 |
| Series | Syntesi |
| Condensate drain | |
| F | 38.2 mm |
