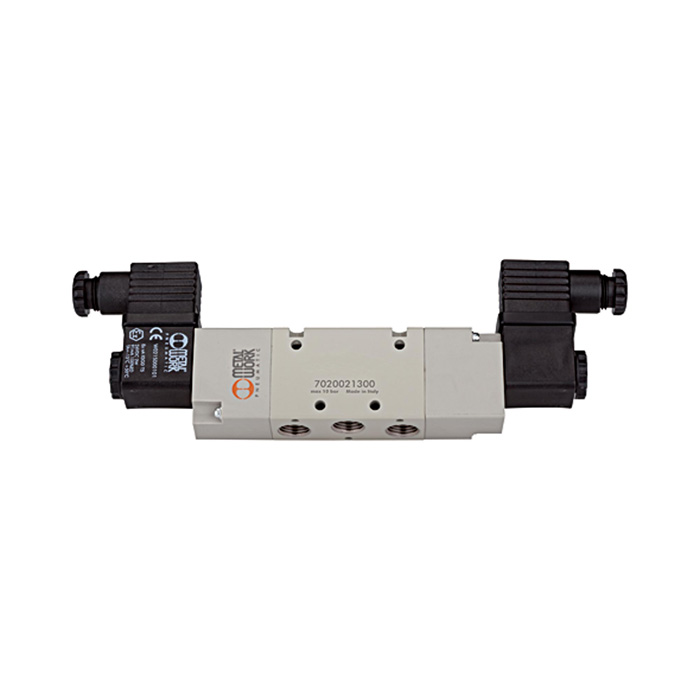

RIEGLER 5/2-way valve, diff. piston, electropneumatic, bistable, G 3/8, 24 V AC
Type number: 517.52.38.D.24A
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
145915EAN :
4047322774307Category :
Valves Electropneumatically OperatedWeight :
0.39 kgRIEGLER 5/2-way valve for pneumatic control, max. 10 bar, G 3/8 - Type 517.52.38.D.24A
The RIEGLER 5/2-way valve, diff. piston, electropneumatic, bistable, G 3/8, 24 V AC controls the direction of the compressed air flow for targeted movement sequences. with NBR seals. The operating pressure range is 1 bar to 10 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 3/8 - suitable for common industry standards. Suitable for filtered compressed air with or without lubrication. If lubricated, then continuous. Operating voltage 24 V, 50/60 Hz. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves Series 70 |
| Operating pressure min. | 1 bar |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Manual override | resting |
| DN | 45364 |
| Actuation | Differential piston, bistable |
| Symbol | 40 |
| Connection | G 3/8 |
| Flow 1 | 1560 Nl/min |
| Flow 2 | 2150 Nl/min |
| Class name | PLUS |
| Function | 45327 |
| Tension | 24 V, 50/60 Hz |
| Flow rate measurement 1 | Flow rate at 6 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[145713] RIEGLER 5/2-way valve, differential piston, electropneumatic, bistable, G 3/8](/web/image/product.template/279340/image_128/%5B145713%5D%20RIEGLER%205-2-way%20valve%2C%20differential%20piston%2C%20electropneumatic%2C%20bistable%2C%20G%203-8?unique=db5897e)
|
Type number: 7040021300 |
113.70 € | |
![[117313] RIEGLER Device plug, 22 mm, type B](/web/image/product.template/274839/image_128/%5B117313%5D%20RIEGLER%20Device%20plug%2C%2022%20mm%2C%20type%20B?unique=4bd6d96)
|
Type number: 1920.9P |
1.48 € | |
![[118628] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 24 V AC, 50/60 Hz, 3.5 VA](/web/image/product.template/275044/image_128/%5B118628%5D%20RIEGLER%20Solenoid%20coil%2C%2022%20mm%20x%20%C3%98%208%20mm%2C%2024%20V%20AC%2C%2050-60%20Hz%2C%203.5%20VA?unique=84d9a75)
|
Type number: 400-514-01 |
9.87 € | |
