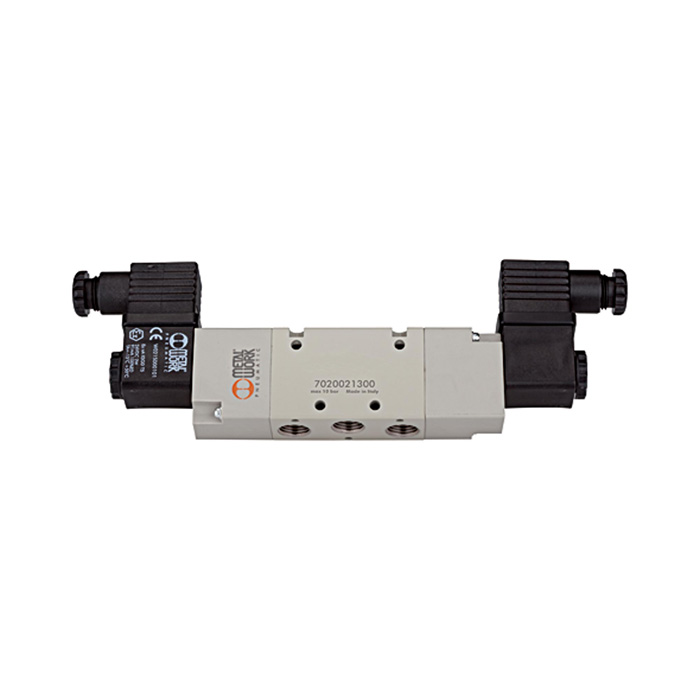

RIEGLER 5/2-way valve, diff. piston, electropneumatic, bistable, G1/2, 12V DC

Price:

235.61 €

English (US)
  2. Shop
  3. Valves Electropneumatically Operated
  4. RIEGLER 5/2-way valve, diff. piston, electropneumatic, bistable, G1/2, 12V DC
RIEGLER 5/2-way valve, diff. piston, electropneumatic, bistable, G 1/2, 110VAC
RIEGLER 5/2-way valve, diff. piston, electropneumatic, bistable, G 1/2, 110VAC
235.61 € 235.61 €
RIEGLER 5/2-way valve, diff. spool, electropneumatic, bistable, G 1/2, 24 V AC
RIEGLER 5/2-way valve, diff. spool, electropneumatic, bistable, G 1/2, 24 V AC
235.61 € 235.61 €

RIEGLER 5/2-way valve, diff. piston, electropneumatic, bistable, G1/2, 12V DC

https://www.filcom-technik.de/web/image/product.template/275865/image_1920?unique=99eb5f7

Typennummer: 517.52.12.D.12D

235.61 € 235.61 EUR 235.61 € VAT Included

274.98 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

145941

EAN :

4047322774567

Category :

Valves Electropneumatically Operated

Weight :

0.39 kg

5/2-way valve, differential piston, electropneumatic, bistable, G 1/2, 12 V DC, p = 1 ? 10 bar, aluminum

Medium Filtered compressed air with or without lubrication. If lubricated, then continuous.
Sealing material NBR
Series Valves Series 70
Operating pressure min. 1 bar
Max. operating pressure 10 bar
Medium temperature min. -10 °C
Medium temperature max. 60 °C
Ambient temperature min. -10 °C
Ambient temperature max. 50 °C
Manual override resting
DN 15
Actuation Differential piston, bistable
Symbol 40
Tension 12 V DC
Connection G 1/2
Flow 1 3200 Nl/min
Flow 2 4600 Nl/min
Class name PLUS
Function 45327
Flow rate measurement 1 Flow rate at 6 bar and Δp 0.5 bar
Flow rate measurement 2 Flow rate at 6 bar and Δp 1.0 bar

Maintenance, wear and spare parts

Product Price
[145714] RIEGLER 5/2-way valve, differential piston, electropneumatic, bistable, G 1/2

Type number: 7030021300

 224.28 €
[117313] RIEGLER Device plug, 22 mm, type B

Type number: 1920.9P

 1.48 €
[118631] RIEGLER Solenoid coil, 22 mm x Ø 8 mm, 12 V DC, 2 W

Type number: 400-514-41

 9.87 €
