RIEGLER 2/2 MV, NC, ES, G1/4, DN 4.0, PN 0-10, FPM, direct, 230V AC
Typennummer: MVA.14.ES.230.F.RD.4
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 2/2 MV made of stainless steel, for industrial systems, max. 10 bar - Type MVA.14.ES.230.F.RD.4
The RIEGLER 2/2 MV, NC, ES, G1/4, DN 4.0, PN 0-10, FPM, direct acting, 230V AC switches compressed air and media flows electrically controlled via a solenoid coil. The housing is made of stainless steel with FPM seals. The operating pressure range is 0 bar to 10 bar. The permissible medium temperature is between -15 °C and 100 °C. Connection thread G 1/4 - suitable for common industry standards. Operating voltage 230 V AC, power consumption 9VA, protection class IP 65 (when using the cable plug). Fast, precise switching for automated processes.
Field of application
Typical areas of application: Automation, mechanical engineering and process technology.
| Housing | Stainless steel |
| Sealing material | FPM |
| Duty cycle | 1 |
| Protection class | IP 65 (when using the cable plug) |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -15 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 55 °C |
| Interior parts | Stainless steel |
| Thread | G 1/4 |
| DN | 4 |
| Function | normally closed (NC) |
| Class name | PLUS |
| Voltage tolerance | ± 10% according to VDE 0580 |
| Power consumption | 9VA |
| Electrical connection | Cable plug in accordance with DIN EN 175301-803 design A |
| Installation position | Magnet preferably at the top |
| Valve seat | Stainless steel |
| Tension | 230 V AC |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

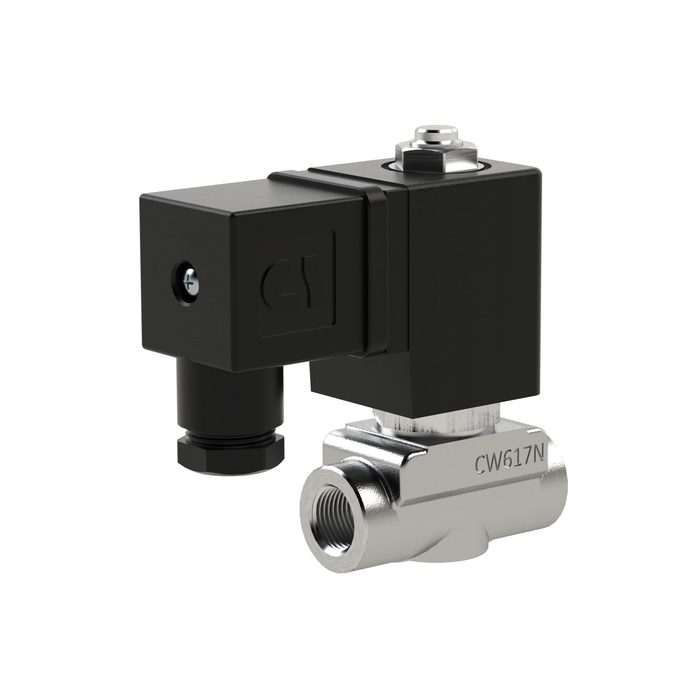

![[146071] RIEGLER 2/2 MV, NC, ES, G1/4, DN 4.0, PN 0-10, NBR, direct, 230V AC](/web/image/product.template/275890/image_128/%5B146071%5D%20RIEGLER%202-2%20MV%2C%20NC%2C%20ES%2C%20G1-4%2C%20DN%204.0%2C%20PN%200-10%2C%20NBR%2C%20direct%2C%20230V%20AC?unique=511fb01)
|
Typennummer: MVA.14.ES.230.N.RD.4 |
138.00 € | |

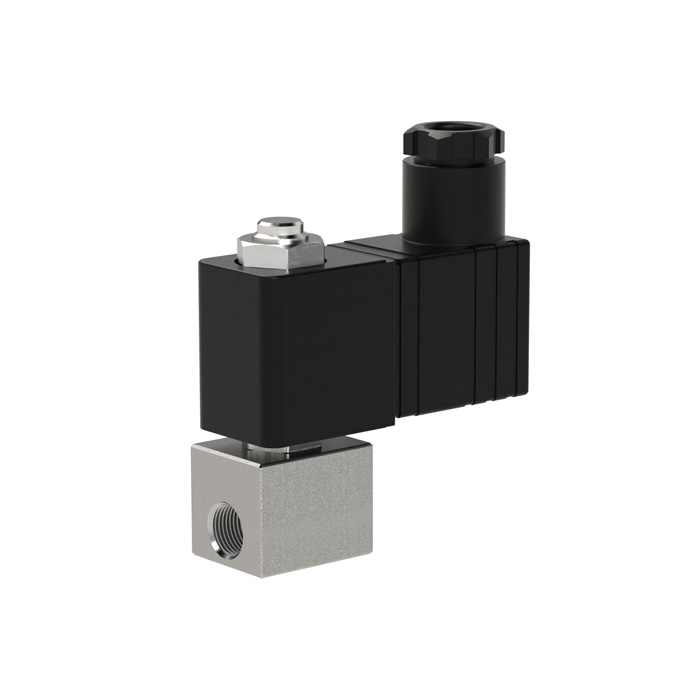

![[146067] RIEGLER 2/2 MV, NC, ES, G1/8, DN 2.5, PN 0-14, FPM, direct, 230V AC](/web/image/product.template/275886/image_128/%5B146067%5D%20RIEGLER%202-2%20MV%2C%20NC%2C%20ES%2C%20G1-8%2C%20DN%202.5%2C%20PN%200-14%2C%20FPM%2C%20direct%2C%20230V%20AC?unique=8ed511b)
|
