RIEGLER 2/2 MV, NC, ES, G1/2, DN13, PN 0-12, NBR, forced, 230V AC
Typennummer: MVA.12.ES.230.N.RZ.13
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 2/2 MV made of stainless steel, for industrial systems, max. 12 bar - Type MVA.12.ES.230.N.RZ.13
The RIEGLER 2/2 MV, NC, ES, G1/2, DN13, PN 0-12, NBR, forced, 230V AC switches compressed air and media flows electrically controlled via a solenoid coil. The housing is made of stainless steel with NBR seals. The operating pressure range is 0 bar to 12 bar. The permissible medium temperature is between -20 °C and 85 °C. Connection thread G 1/2 - suitable for common industry standards. Operating voltage 230 V AC, power consumption 9VA, protection class IP 65 (when using the cable plug). Fast, precise switching for automated processes.
Field of application
Typical areas of application: Automation, mechanical engineering and process technology.
| Housing | Stainless steel |
| Sealing material | NBR |
| Duty cycle | 1 |
| Protection class | IP 65 (when using the cable plug) |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 12 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 85 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Interior parts | Stainless steel |
| Thread | G 1/2 |
| DN | 13 |
| Function | normally closed (NC) |
| Class name | PLUS |
| Voltage tolerance | ± 10% according to VDE 0580 |
| Power consumption | 9VA |
| Electrical connection | Cable plug, industrial standard type A - EN 175301-803-A |
| Installation position | Magnet preferably at the top |
| Valve seat | Stainless steel |
| Tension | 230 V AC |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

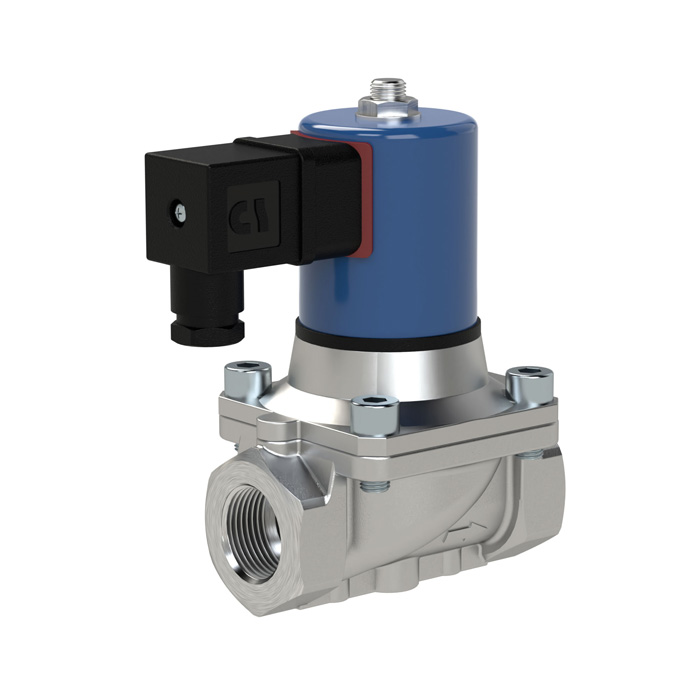

![[146081] RIEGLER 2/2 MV, NC, ES, G1/2, DN13, PN 0-12, FPM, forced, 230V AC](/web/image/product.template/275895/image_128/%5B146081%5D%20RIEGLER%202-2%20MV%2C%20NC%2C%20ES%2C%20G1-2%2C%20DN13%2C%20PN%200-12%2C%20FPM%2C%20forced%2C%20230V%20AC?unique=4846c91)
|
Typennummer: MVA.12.ES.230.F.RZ.13 |
320.35 € | |

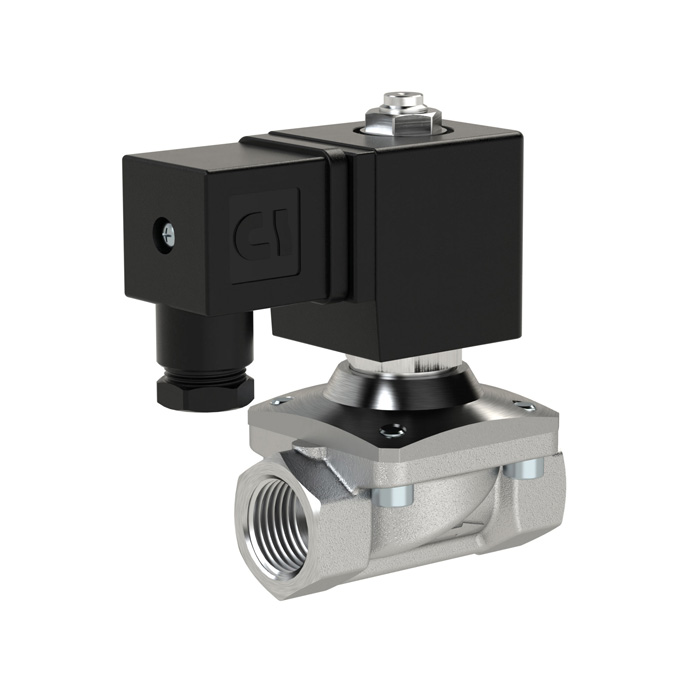

![[146079] RIEGLER 2/2 MV, NC, ES, G3/4, DN20, PN 0-12, NBR, forced, 230V AC](/web/image/product.template/275894/image_128/%5B146079%5D%20RIEGLER%202-2%20MV%2C%20NC%2C%20ES%2C%20G3-4%2C%20DN20%2C%20PN%200-12%2C%20NBR%2C%20forced%2C%20230V%20AC?unique=14996ba)
|
