RIEGLER 3/3 Tube fitting G11/4x25 swivel nut, taper seat NBR O-ring Brass
Typennummer: SV11425MS33F
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/3 brass hose fitting CW614N, for pneumatic installation, max. 16 bar - type SV11425MS33F
The RIEGLER 3/3 hose connector, G11/4x25, O-nut, flat, NBR O-ring, MS connects compressed air hoses and pipes quickly and securely by simply screwing them in. The housing is made of brass CW614N. The operating pressure range is 0 bar to 16 bar. The operating temperature is between -10 °C and 80 °C. Connection thread G 1 1/4 - suitable for common industry standards. Simple assembly and disassembly for flexible pipe routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Operating pressure min. | 0 bar |
| Max. operating pressure | 16 bar |
| Material | Brass CW614N |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 80 °C |
| Thread | G 1 1/4 |
| for hose | 25 mm |
| D | 66 mm |
| L1 | 103.7 mm |
| L2 | 40 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[146201] RIEGLER 3/3 Tube fitting G1x19, swivel nut, taper seat, NBR O-ring, Brass](/web/image/product.template/210474/image_128/%5B146201%5D%20RIEGLER%203-3%20Tube%20fitting%20G1x19%2C%20swivel%20nut%2C%20taper%20seat%2C%20NBR%20O-ring%2C%20Brass?unique=f6c60da)
|
Typennummer: SV1019MS33F |
4.37 € | |

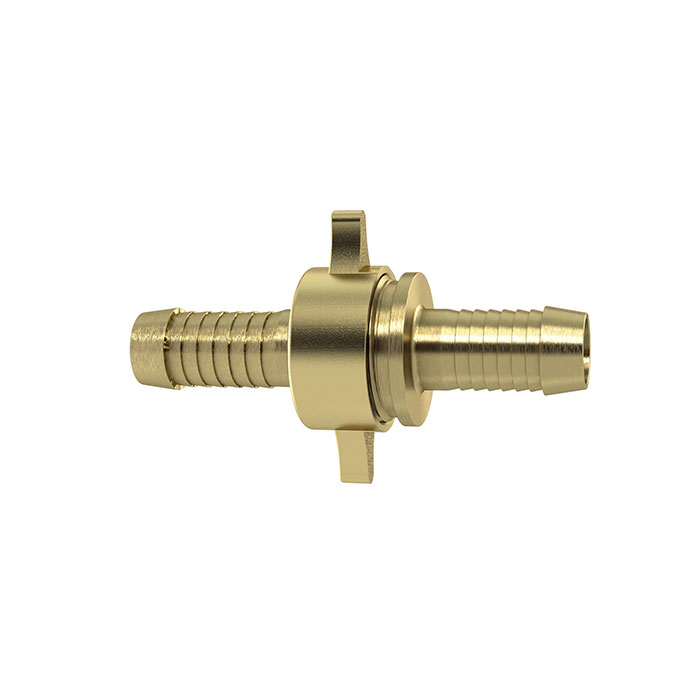

![[146200] RIEGLER 3/3 Tube fitting G3/4x13 swivel nut, taper seat NBR O-ring Brass](/web/image/product.template/210473/image_128/%5B146200%5D%20RIEGLER%203-3%20Tube%20fitting%20G3-4x13%20swivel%20nut%2C%20taper%20seat%20NBR%20O-ring%20Brass?unique=870fb1a)
|
