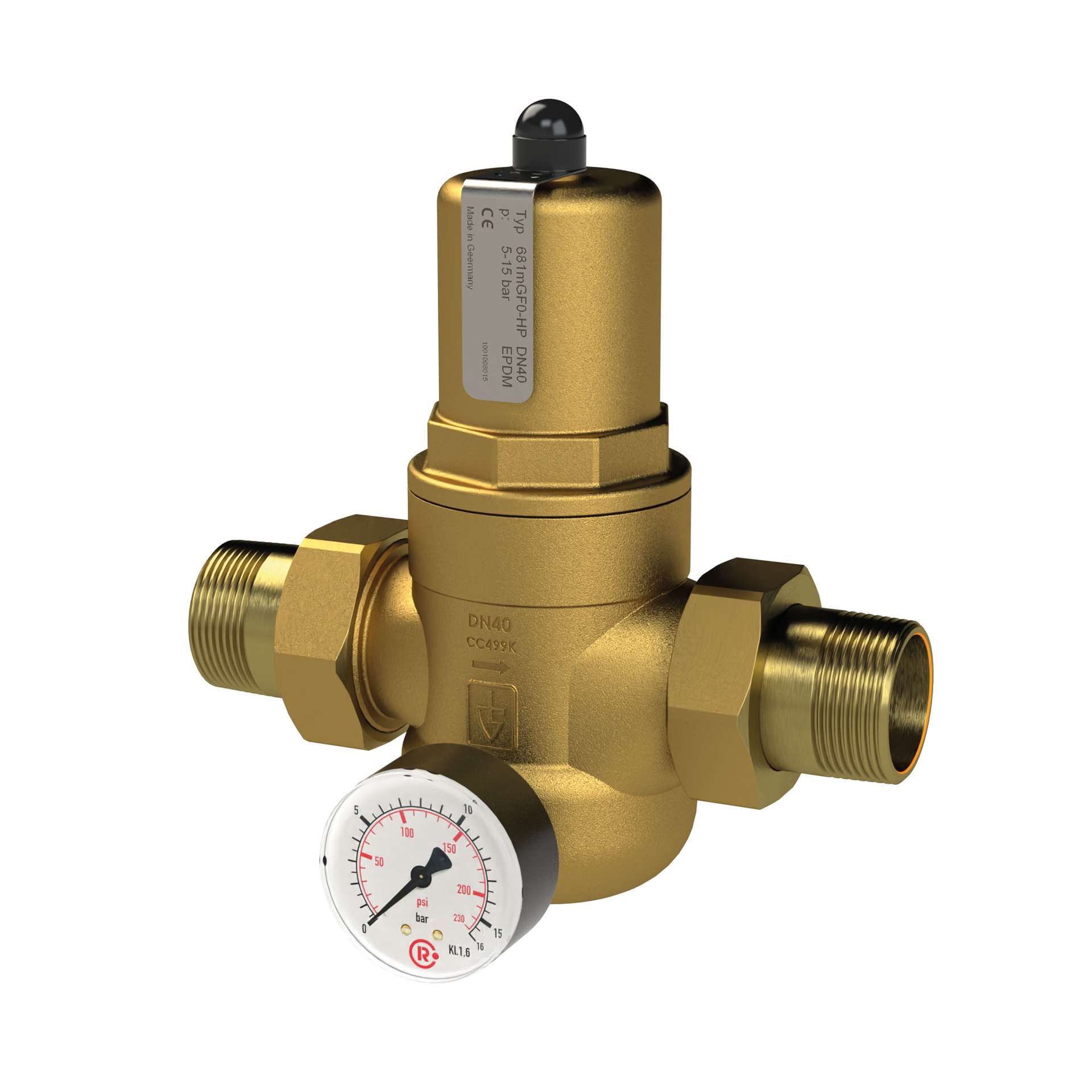

RIEGLER pressure regulator for drinking water, gunmetal, w. Mano, R 1 1/4 AG, 1 - 8 bar
Typennummer: DRTWR.R114.1-8B
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressure regulator for potable water made of gunmetal (CC499K), for compressed air treatment, 1 bar - Type DRTWR.R114.1-8B
The RIEGLER pressure regulator for drinking water, gunmetal, w. Mano, R 1 1/4 AG, 1 - 8 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of gunmetal (CC499K) with EPDM seals. The control range extends from 1 bar to 8 bar with a maximum inlet pressure of 40 bar. The operating temperature is between -20 °C and 95 °C. Connection thread R 1 1/4 AG - suitable for common industry standards. Suitable for drinking water, nitrogen, argon, neutral and non-adhesive liquids, compressed air and neutral gases. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Thread | R 1 1/4 AG |
| Operating temperature max. drinking water | 80 °C |
| D | 130 mm |
| Interior parts | Gunmetal (CC499K) and stainless steel (1.4404) |
| Housing | Gunmetal (CC499K) |
| Medium | Drinking water, nitrogen, argon, neutral and non-adhesive liquids, compressed air and neutral gases |
| SW | 52 mm |
| Control range max. | 8 bar |
| DN | 32 |
| Operating temperature min. | -20 °C |
| Control range min. | 1 bar |
| A | 105 mm |
| Inlet pressure max. | 40 bar |
| C | 45 mm |
| Flow rate kvs-value | 7.6 m³/h |
| Operating temperature max. | 95 °C |
| Sealing material | EPDM |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[146324] RIEGLER pressure regulator for drinking water, gunmetal, w. Mano, R 1 1/2 AG, 1 - 8 bar](/web/image/product.template/283975/image_128/%5B146324%5D%20RIEGLER%20pressure%20regulator%20for%20drinking%20water%2C%20gunmetal%2C%20w.%20Mano%2C%20R%201%201-2%20AG%2C%201%20-%208%20bar?unique=093d7ca)
|
Typennummer: DRTWR.R112.1-8B |
420.17 € | |
![[146325] RIEGLER pressure regulator for drinking water, gunmetal, w. Mano, R 1 1/2 AG, 5 - 15 bar](/web/image/product.template/283976/image_128/%5B146325%5D%20RIEGLER%20pressure%20regulator%20for%20drinking%20water%2C%20gunmetal%2C%20w.%20Mano%2C%20R%201%201-2%20AG%2C%205%20-%2015%20bar?unique=f82aedf)
|
Typennummer: DRTWR.R112.5-15B |
448.81 € | |
![[146323] RIEGLER pressure regulator for drinking water, gunmetal, w. Mano, R 1 1/4 AG, 5 - 15 bar](/web/image/product.template/283974/image_128/%5B146323%5D%20RIEGLER%20pressure%20regulator%20for%20drinking%20water%2C%20gunmetal%2C%20w.%20Mano%2C%20R%201%201-4%20AG%2C%205%20-%2015%20bar?unique=a06fa46)
|
Typennummer: DRTWR.R114.5-15B |
261.12 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

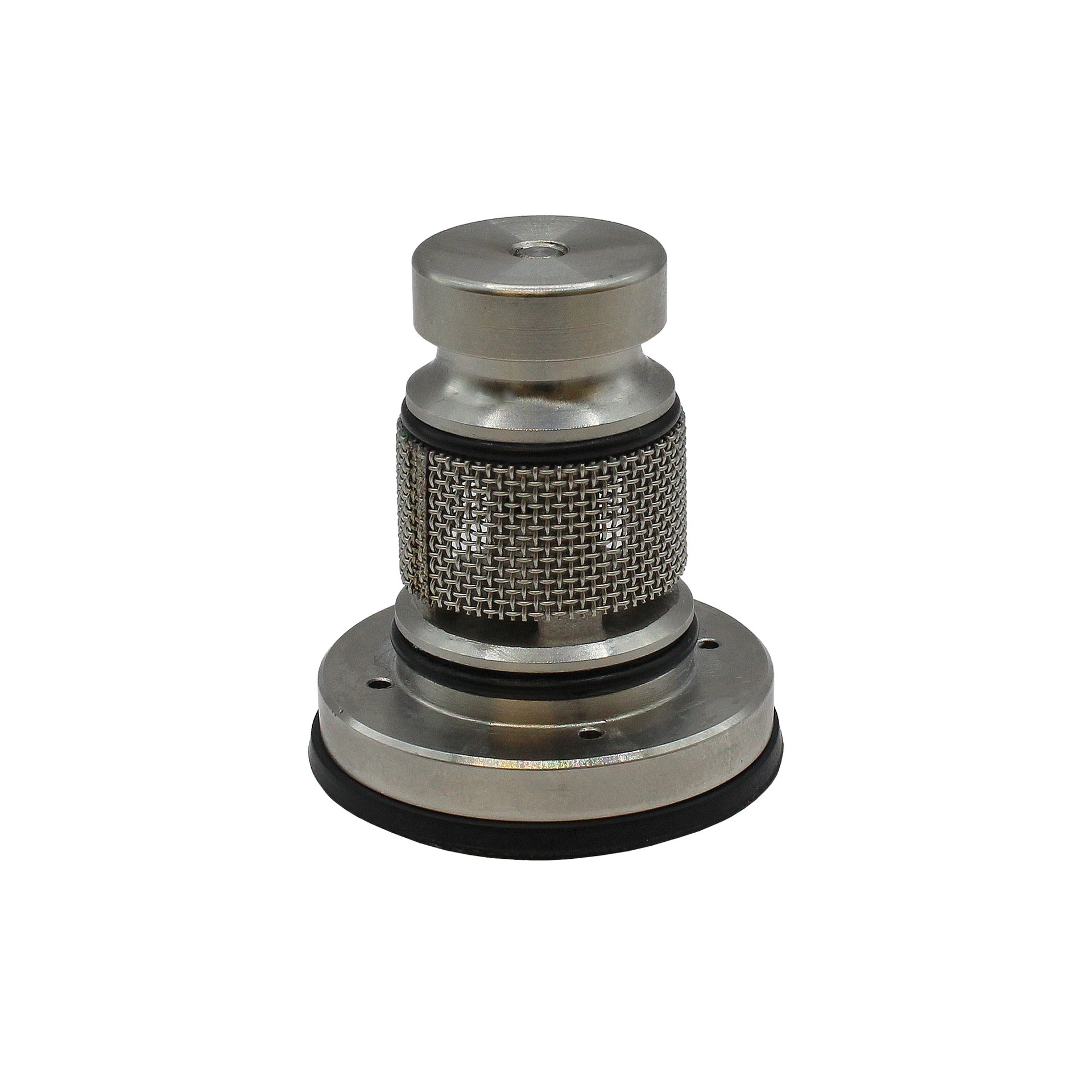

![[146313] RIEGLER valve insert for drinking water pressure regulator, G 1 and R 1 1/4](/web/image/product.template/283965/image_128/%5B146313%5D%20RIEGLER%20valve%20insert%20for%20drinking%20water%20pressure%20regulator%2C%20G%201%20and%20R%201%201-4?unique=3d0f498)
|
Typennummer: VEDRTWR.G1.R114 |
90.95 € | |
