RIEGLER pressure regulator for drinking water, gunmetal, w. Mano, R 1 1/2 AG, 5 - 15 bar
Typennummer: DRTWR.R112.5-15B
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pressure regulator for drinking water, gunmetal, w. pressure gauge, R 1 1/2 AG, regul. 5 - 15 bar, inlet pressure max. 40 bar, temp. -20°C to 95°C
| Operating temperature max. drinking water | 80 °C |
| D | 165 mm |
| Flow rate kvs-value | 12.5 m³/h |
| Control range min. | 5 bar |
| Thread | R 1 1/2 AG |
| Interior parts | Gunmetal (CC499K) and stainless steel (1.4404) |
| Housing | Gunmetal (CC499K) |
| Medium | Drinking water, nitrogen, argon, neutral and non-adhesive liquids, compressed air and neutral gases |
| SW | 65 mm |
| Control range max. | 15 bar |
| DN | 40 |
| Operating temperature min. | -20 °C |
| A | 130 mm |
| Inlet pressure max. | 40 bar |
| C | 70 mm |
| Operating temperature max. | 95 °C |
| Sealing material | EPDM |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[146324] RIEGLER pressure regulator for drinking water, gunmetal, w. Mano, R 1 1/2 AG, 1 - 8 bar](/web/image/product.template/283975/image_128/%5B146324%5D%20RIEGLER%20pressure%20regulator%20for%20drinking%20water%2C%20gunmetal%2C%20w.%20Mano%2C%20R%201%201-2%20AG%2C%201%20-%208%20bar?unique=b8e7774)
|
Typennummer: DRTWR.R112.1-8B |
420.17 € | |
![[146322] RIEGLER pressure regulator for drinking water, gunmetal, w. Mano, R 1 1/4 AG, 1 - 8 bar](/web/image/product.template/283973/image_128/%5B146322%5D%20RIEGLER%20pressure%20regulator%20for%20drinking%20water%2C%20gunmetal%2C%20w.%20Mano%2C%20R%201%201-4%20AG%2C%201%20-%208%20bar?unique=ca3db93)
|
Typennummer: DRTWR.R114.1-8B |
242.15 € | |

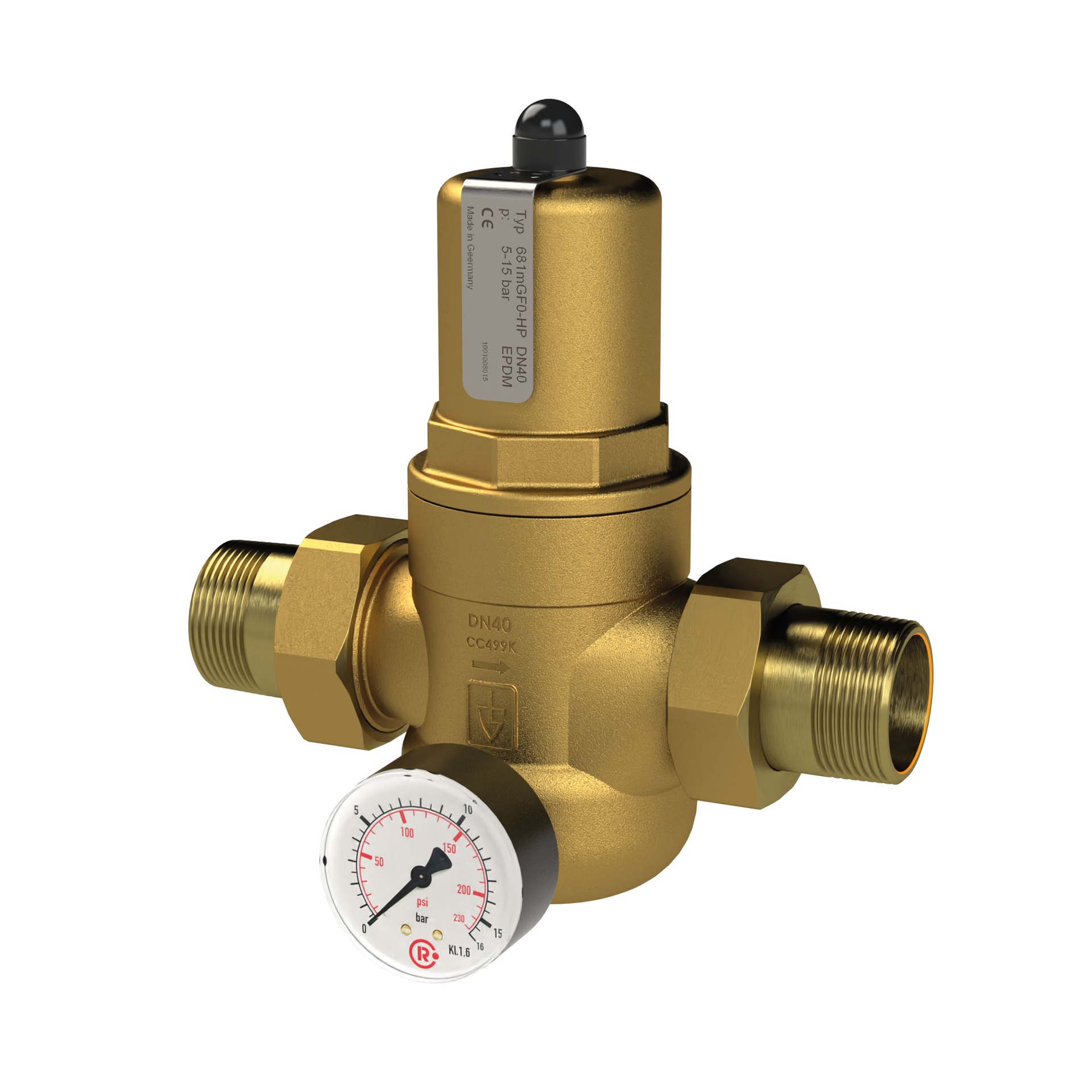

![[146323] RIEGLER pressure regulator for drinking water, gunmetal, w. Mano, R 1 1/4 AG, 5 - 15 bar](/web/image/product.template/283974/image_128/%5B146323%5D%20RIEGLER%20pressure%20regulator%20for%20drinking%20water%2C%20gunmetal%2C%20w.%20Mano%2C%20R%201%201-4%20AG%2C%205%20-%2015%20bar?unique=b86dd17)
|
Typennummer: DRTWR.R114.5-15B |
261.12 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

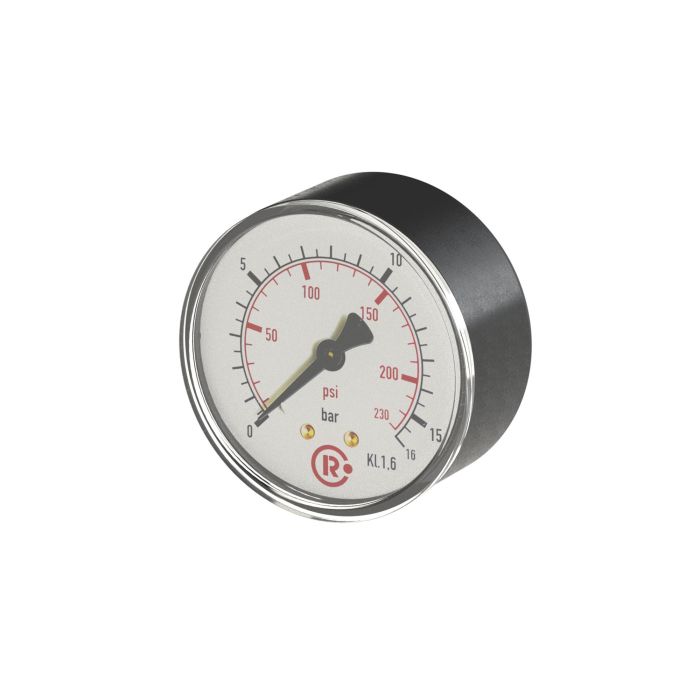

![[101398] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar/230 psi](/web/image/product.template/169372/image_128/%5B101398%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar-230%20psi?unique=c2b0778)
|
Type number: 218-KD |
6.30 € | |

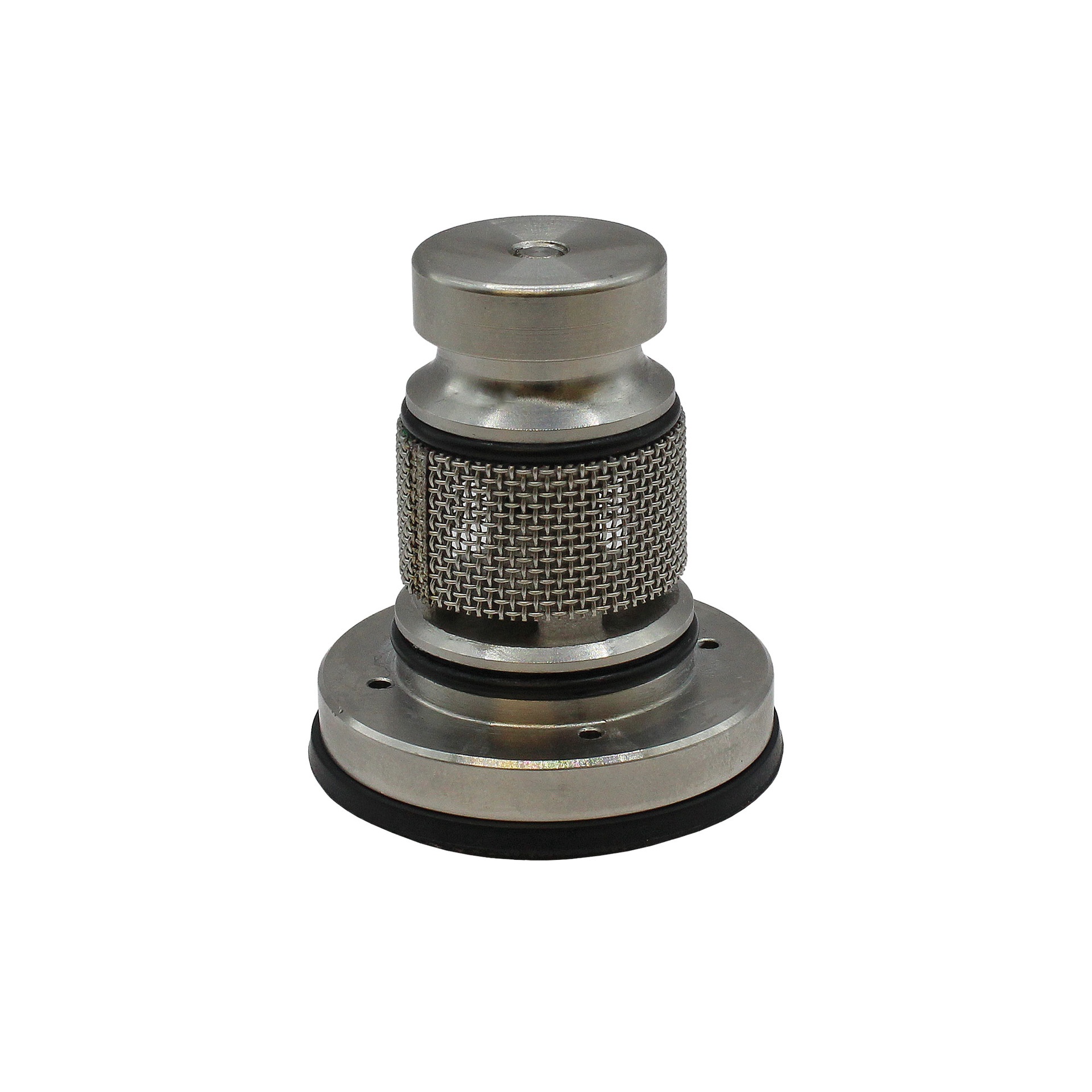

![[146314] RIEGLER valve insert for drinking water pressure regulator, R 1 1/2](/web/image/product.template/283966/image_128/%5B146314%5D%20RIEGLER%20valve%20insert%20for%20drinking%20water%20pressure%20regulator%2C%20R%201%201-2?unique=767f96c)
|
Typennummer: VEDRTWR.R112 |
162.79 € | |
