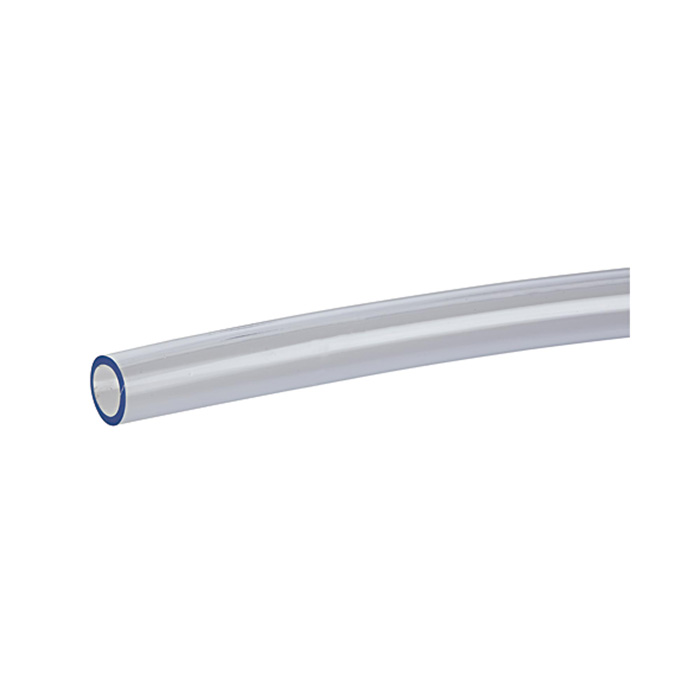

RIEGLER Polyurethane tubing, Ø8x1 mm, natural, FDA, roll of 25 m
Typennummer: PURN8X1-25FDA
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Polyurethane hose made of polyurethane (PUR), for compressed air distribution - type PURN8X1-25FDA
The RIEGLER polyurethane hose, Ø8x1 mm, natural, FDA, roll of 25 m conducts compressed air flexibly and reliably from the compressor to the consumer. The housing is made of polyurethane (PUR). The temperature range is between -40 °C and 85 °C. Hose Ø 6 mm (inside) / 8 mm (outside). Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Temperature range min. | -40 °C |
| Temperature range max. | 85 °C |
| Material | Polyurethane (PUR) |
| Area of application | Food, pharmaceuticals |
| Colour | nature |
| Outer hose Ø | 8 mm |
| Hose Ø inside | 6 mm |
| Max. operating pressure at 23 °C | 6 bar |
| Roll length | 25 m |
| Bending radius min. | 40 mm |
| Wall thickness | 1 mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[146548] RIEGLER Polyurethane tubing, Ø10x1.5 mm, natural, FDA, roll of 25 m](/web/image/product.template/275931/image_128/%5B146548%5D%20RIEGLER%20Polyurethane%20tubing%2C%20%C3%9810x1.5%20mm%2C%20natural%2C%20FDA%2C%20roll%20of%2025%20m?unique=ae9cac2)
|
Typennummer: PURN10X1,5-25FDA |
96.00 € | |
![[146549] RIEGLER Polyurethane tubing, Ø10x2 mm, natural, FDA, roll of 25 m](/web/image/product.template/275932/image_128/%5B146549%5D%20RIEGLER%20Polyurethane%20tubing%2C%20%C3%9810x2%20mm%2C%20natural%2C%20FDA%2C%20roll%20of%2025%20m?unique=34d466e)
|
Typennummer: PURN10X2-25FDA |
4.32 € | |
![[146550] RIEGLER Polyurethane tubing, Ø12x1.5 mm, natural, FDA, roll of 25 m](/web/image/product.template/275933/image_128/%5B146550%5D%20RIEGLER%20Polyurethane%20tubing%2C%20%C3%9812x1.5%20mm%2C%20natural%2C%20FDA%2C%20roll%20of%2025%20m?unique=848f7f0)
|
Typennummer: PURN12X1,5-25FDA |
111.06 € | |
![[146551] RIEGLER Polyurethane tubing, Ø12x2 mm, natural, FDA, roll of 25 m](/web/image/product.template/275934/image_128/%5B146551%5D%20RIEGLER%20Polyurethane%20tubing%2C%20%C3%9812x2%20mm%2C%20natural%2C%20FDA%2C%20roll%20of%2025%20m?unique=34d466e)
|
Typennummer: PURN12X2-25FDA |
5.14 € | |
![[146552] RIEGLER Polyurethane tubing, Ø16x2.5 mm, natural, FDA, roll of 25 m](/web/image/product.template/275935/image_128/%5B146552%5D%20RIEGLER%20Polyurethane%20tubing%2C%20%C3%9816x2.5%20mm%2C%20natural%2C%20FDA%2C%20roll%20of%2025%20m?unique=34d466e)
|
Typennummer: PURN16X2,5-25FDA |
8.31 € | |
![[146542] RIEGLER Polyurethane tubing, Ø4x1 mm, natural, FDA, roll of 25 m](/web/image/product.template/275925/image_128/%5B146542%5D%20RIEGLER%20Polyurethane%20tubing%2C%20%C3%984x1%20mm%2C%20natural%2C%20FDA%2C%20roll%20of%2025%20m?unique=34d466e)
|
Typennummer: PURN4X1-25FDA |
26.18 € | |

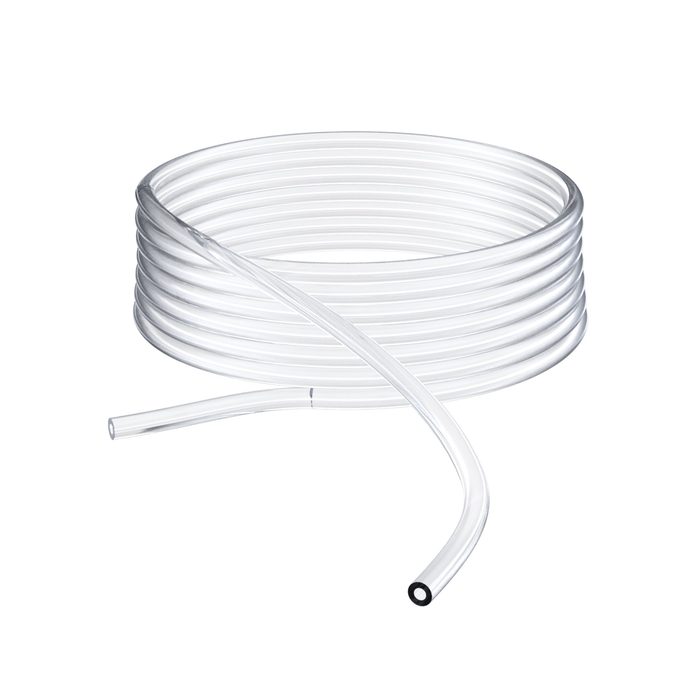

![[146543] RIEGLER Polyurethane tubing, Ø5x1 mm, natural, FDA, roll of 25 m](/web/image/product.template/275926/image_128/%5B146543%5D%20RIEGLER%20Polyurethane%20tubing%2C%20%C3%985x1%20mm%2C%20natural%2C%20FDA%2C%20roll%20of%2025%20m?unique=45d7153)
|
Typennummer: PURN5X1-25FDA |
31.74 € | |
![[146544] RIEGLER Polyurethane tubing, Ø6x1 mm, natural, FDA, roll of 25 m](/web/image/product.template/275927/image_128/%5B146544%5D%20RIEGLER%20Polyurethane%20tubing%2C%20%C3%986x1%20mm%2C%20natural%2C%20FDA%2C%20roll%20of%2025%20m?unique=34d466e)
|
Typennummer: PURN6X1-25FDA |
35.31 € | |
![[146546] RIEGLER Polyurethane tubing, Ø8x1.25 mm, natural, FDA, roll of 25 m](/web/image/product.template/275929/image_128/%5B146546%5D%20RIEGLER%20Polyurethane%20tubing%2C%20%C3%988x1.25%20mm%2C%20natural%2C%20FDA%2C%20roll%20of%2025%20m?unique=34d466e)
|
Typennummer: PURN8X1,25-25FDA |
2.40 € | |
![[146547] RIEGLER Polyurethane tubing, Ø8x1.5 mm, natural, FDA, roll of 25 m](/web/image/product.template/275930/image_128/%5B146547%5D%20RIEGLER%20Polyurethane%20tubing%2C%20%C3%988x1.5%20mm%2C%20natural%2C%20FDA%2C%20roll%20of%2025%20m?unique=8c5c3d1)
|
Typennummer: PURN8X1,5-25FDA |
67.44 € | |
