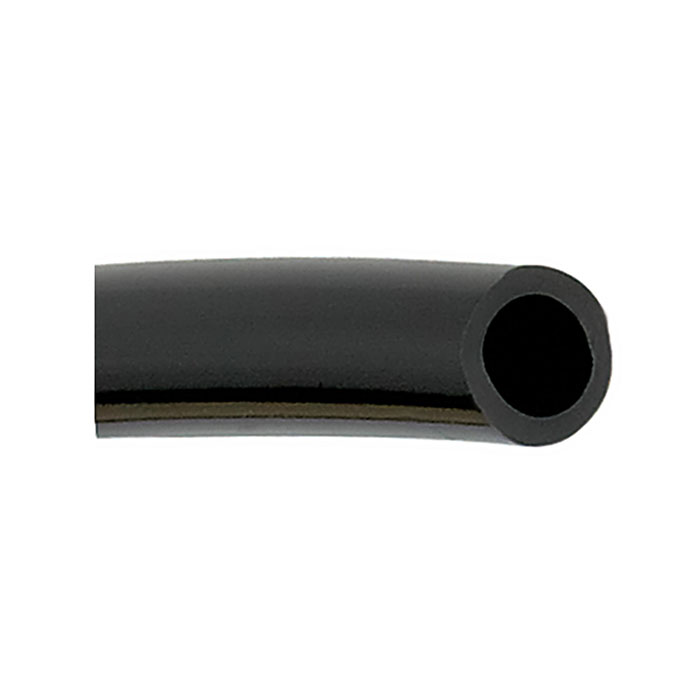

RIEGLER Anti-static hose (PU), black, Hose Ø 4x2.4, Roll of 25 m
Type number: 189.01
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Antistatic hose (PU), black, temp. -40 °C to 70 °C, hose ø 4x2.4, PN at 26 °C/65 °C max. 7.24/3.45 bar, roll of 25 m
| Temperature range min. | -40 °C |
| Temperature range max. | 70 °C |
| Discharge of charges | according to EIS Std. 541 |
| Specific contact resistance | 9.9x10<sup>9</sup> Ohm-cm |
| Surface resistance | 9.9x10<sup>9</sup> Ohm-cm |
| Outer hose Ø | 4 mm |
| Hose Ø inside | 2.4 mm |
| Roll length | 25 m |
| Bending radius min. | 9.5 mm |
| Working pressure at 25 °C | 7.24 bar |
| Working pressure at 65 °C | 3.45 bar |
| Class name | FLEX |
